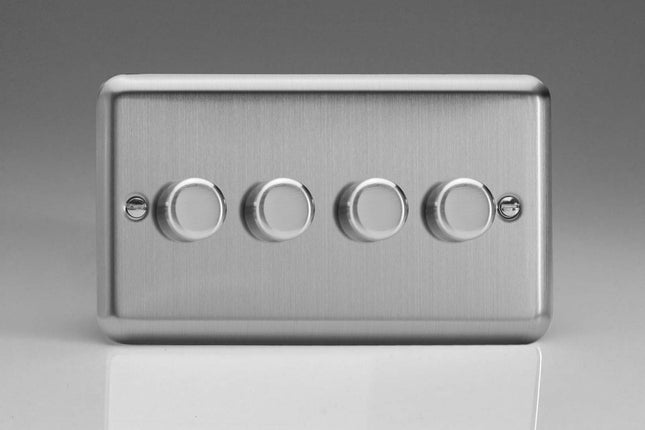

Standard V-Pro dimmers have a push-on/push-off switch action with rotary dimming. You can change the driving modes and adjust the minimum brightness with pushes of the dimmer control and using signals from the lamps. You can view the programming instructions on the dimmer leaflet or, alternatively, you can view Varilight video on YouTube using this link:- https://www.youtube.com/watch?v=Id1E2hQpX-w . V-Pro series dimmers are designed for use with LEDs and they are also suitable for halogen and incandescent lighting, most dimmable electronic transformers and with no minimum load, are suitable for dimmable low energy lighting. The V-Pro Series, eliminates Dimmer Buzz For GLS Bulbs, GU10 Lamps, and LV Transformers Including Trailing Edge Loads and is equipped with Self Re-setting Overload Protection, so is able to handle overload situations, for example, if the wattage of the bulbs/lamps are accidentally too high on a circuit. This is achieved by the dimmer cutting out before there is any damage, (if the watts are grossly overloaded), until the load is reduced. The dimmer also contains a heat sensor which again stops damage to the dimmer, if it becomes too hot. Please adhere to maximum rating listed on the Varilight datasheets on their website or copy and paste the link for the V-Pro instruction leaflet: - http://www.varilight.co.uk/leaflets/VARILIGHT%20V-Pro%20Dimmer%20Instructions%20776.pdf .These dimmers do not work with lighting panels (LED or CFL) and are not suitable for wire-wound "toroidal" transformers. Please note that only good quality dimmable LEDs should be used. If this dimmer is purchased and the LED lamps are not compatible, the dimmer is not faulty so cannot be returned, but a better quality LED lamp/bulb should be fitted instead. Trailing and Leading Edge Dimmer, please refer to instructions provided with the dimmer, which explains all 3 dimming modes.
_Dimmable LED load 10w-120w (per dimmer)
_Suitable for 1-10 good quality LED lamps per dimmer module
_For Incandescent bulbs, mains, eco and L/V halogen bulbs please click on the link in the product description below.
_V-Pro dimmer are suitable for dimmable LEDs, dimmable ESLs, electronic transformers, trailing edge, standard bulbs, GU10 and mains halogen
_Fits a 25 mm wall box
British made LED Dimmer is an award winning, high quality dimmer switch, compatible with most mains and low voltage spotlights and bulb range, including dimmable GU10 LED bulbs. The dimmer is controlled by a state-of-the-art microprocessor that offers sophisticated overload protection, meaning if you mistakenly connect your dimmer to too many lights or transformers, it will protect itself from failure. This dimmer will give you complete control over your lighting ambience, thanks to its intelligent 2-way control mechanism and is also available in number of finishes acting as both a key aesthetic and technical component of your interior design.
_V-Pro dimmers are designed to control LED lighting loads requiring trailing-edge or leading-edge control with options from 0W-120W (max. 10 LEDs)
_Suitable for 1-10 good quality LED lamps per dimmer module
_V-Pro dimmers are suitable for dimmable LEDs, dimmable ESLs, electronic transformers, trailing edge, standard bulbs, GU10 and mains halogen
_Fits a 25 mm wall box
Mounting frames known as yokes for use with Varilight Power Grid, available in 1,2,3 and 4 gang. Allows switches to be mounted behind the plates.
_Varilight Power Grid frames (1-4 gang)
_Extending flexibility and choice for the Varilight range
_Compliments existing Dimension accessories and Data Grid
_Requires additional Power Grid plate and switches
Varilight 105W low voltage transformer range that has no minimum load. The 105W version isn't LED compatible, only the 50W version is.
_Input Voltage: 230V AC. +/- 10% 50Hz
_Output Voltage: 12V AC
_Input Current: 0.46A for 105W
_Power Range: 105VA: - 0-105W. No minimum load!
(Alternative Stock Code: XCPC) 6A Pull Switch Chrome Effect, 1- or 2-way switching using a pull cord, Can be installed in bathrooms, toilets and shower rooms (IP20), Can be installed in bathrooms, toilets and shower rooms (IP20).Dimensions
Height: 84mm
Width: 84mm
Depth: 35mm
Range: Module : Regulator : LedFix (for use in conjunction with some LEDs) Features: Improves the dimming performance of certain LED lamps when used in combination with VARILIGHT V-Pro dimmers. Improves lamp stability at a lower brightness. Will correct an unwanted visible glow exhibited by certain LED lamps when the circuit is switched off.. Super efficient using less than 1 watt. Dimensions: 24x25x66mm with 100mm lead Product Weight (g): 30 Operating Voltage: 220/250V AC Maximum Load Rating: N/A Price includes VAT.
_Regulator
_LedFix (for use in conjunction with some LEDs)
_Improves the dimming performance of certain LED lamps when used in combination with VARILIGHT V-Pro dimmers
_Improves lamp stability at a lower brightness
_Will correct an unwanted visible glow exhibited by certain LED lamps when the circuit is switched off.
The Varilight Urban range features a contemporary bevel-edge plate style with an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.

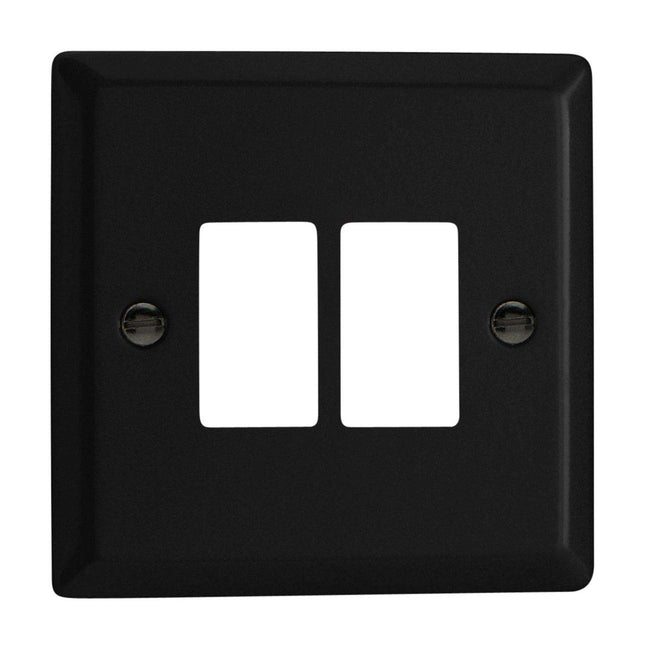

_Grid Pack (Plate and Yoke)
_2-Gang PowerGrid Plate including Yoke (Single Plate)
_Create your own switch combinations
_Varilight Urban: Inspirational finishes for stylish spaces
The Varilight Urban range features a contemporary bevel-edge plate style with an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_Fused Spur
_13A Unswitched Fused Spur + Flex Outlet
_Cable clamp
_Holds standard 25.4x6.4mm fuse
_Replaceable 13A fuse included
The Varilight Lily collection offers a range of painted plates in pastel and primary colours on a curved edge plate with a 7mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 86mm x 86mm. Double plate size: 88mm x 148mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.

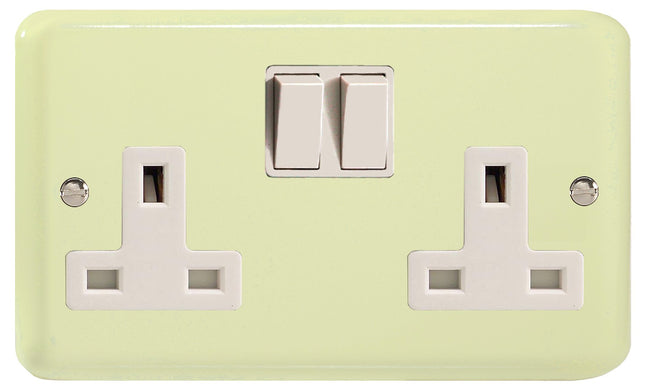

_13A Socket
_2-Gang 13A Double Pole Switched Socket
_Double pole switching for safer operation
_Curved edge faceplate
The Varilight Urban range features a contemporary bevel-edge plate style with an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_20A Rocker Switch
_1-Gang 20A Double Pole Rocker Switch + Neon Indicator Light
_Double pole switching
_Neon indicator light
_Bevelled edge faceplate
Varilight classic 10 amps 1 or 2 way toggle switches with bevelled edge faceplate. Suitable for controlling both mains and low voltage lighting. Toggle switches is available in a stylish finishes and gang options.
_Choose stylish finishes options: - Mirror Chrome - Iridium Black - Satin - Pewter Effect - Victorian Brass - Graphite 21
_Available in gang options: - 1-Gang - 2 Gang - 3 Gang
_Insert colour: Chrome
_Range: Classic
Varilight classic 13 amps double pole switched socket and metal rocker switches with bevelled edge faceplate. Switched socket is available in a plate finish and insert colour with gang options.
_Choose stylish plate finish options: - Mirror Chrome - Iridium Black - Satin - Pewter Effect - Victorian Brass - Brushed Steel
_Two Insert colours options: - Black - White
_Available in 1 or 2 gang options
_Range: Classic
Varilight 10 amps 1 way or 2 way operation rocker switches with bevelled edge face-plate. Suitable for controlling both mains and low voltage lighting.
_Many stylish finishes options: - Mirror Chrome - Iridium Black - Satin - Pewter Effect - Victorian Brass - Brushed Steel
_Three insert colours options - Black - Polished Chrome - White
_Available in 1, 2 or 3 gang options
_Range: Classic
The Varilight Classic raised profile range has an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_2-Way Push Switch
_1-Gang 6A 1- or 2-Way Push-On/Off Impulse Switch
_1- or 2-way push on/off switching
_Coordinates with V-Pro IR and V-Plus IR dimmers
_Suitable for controlling both mains and low voltage lighting
The Varilight Classic raised profile range has an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_Fused Spur
_13A Switched Fused Spur with Metal Inserts
_Double pole switching
_Holds standard 25.4x6.4mm fuse
_Replaceable 13A fuse included
The Varilight Classic raised profile range has an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_13A Socket + USB
_2-Gang 13A Unswitched Socket + 2x5V DC 2100mA USB Charging Ports
_Ideal for charging iPad, iPhone, tablets, mobiles and cameras
_Features VARILIGHT Smart Port technology making it suitable for all types of devices.
_The USB port detects the device to be charged and optimises its output accordingly to achieve the fastest possible charging speed.
Varilight 10 amps 1 way or 2 way operation rocker switches with bevelled edge face-plate. Suitable for controlling both mains and low voltage lighting.
_Many stylish finishes options: - Mirror Chrome - Iridium Black - Satin - Pewter Effect - Victorian Brass - Brushed Steel
_Three insert colours options - Black - Polished Chrome - White
_Available in 1, 2 or 3 gang options
_Range: Classic
XST2
_2-Way Toggle Switch
_2-Gang 10A 1- or 2-Way Toggle Switch
_1- or 2-way switching
_Suitable for controlling both mains and low voltage lighting
_Curved edge faceplate
Varilight classic 10 amps 1 or 2 way toggle switches with curved edge faceplate. Suitable for controlling both mains and low voltage lighting. Toggle switches is available in a gang options.
_Available in gang options: - 1-Gang - 2 Gang - 3 Gang
_Finish: Mirror Chrome
_Insert colour: Chrome
_Range: Classic
The Varilight Classic raised profile range has an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 230V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 230V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_Shaver Socket
_Dual Voltage Shaver Socket 240V/115V 240V/115V
_Suitable for use in bathrooms, toilets and shower rooms (IP41)
_240V accepts British and Continental round pin and Australia flat-pin
_115V accepts Continental two-pin and America NEMA
