Varilight Dimension Screw less flat plate light switch is part of a contemporary range of switches that is available in a choice of finishes. With many other matching accessories to choose from including the market leading V-Pro range of LED dimmer switches.
_Finishes: Brushed Steel, Brushed Brass, Polished Chrome, Polished Brass, Iridium Black, Mocha Brown, Premium Black and Premium White.
_Rated at 10 amp.
_1-Gang
_With 1 way and 2 way operation.
The Varilight Classic raised profile range has an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_DataGrid Plate
_DataGrid Plate (2 Grid Spaces)
_Clip in any combination of DataGrid modules
_Create your own data combinations
_Bevelled edge faceplate

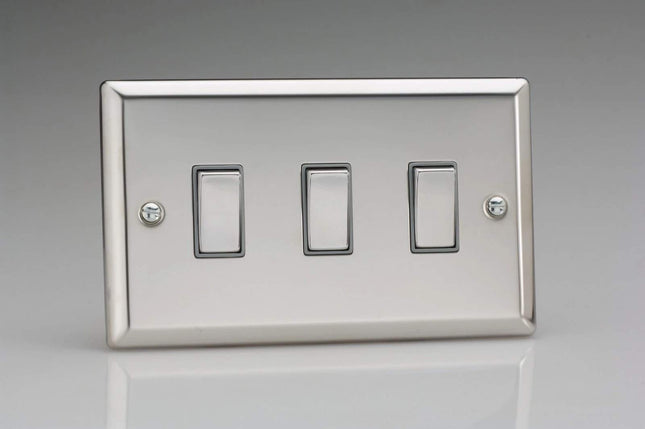

Varilight 10 amps 1 way or 2 way operation rocker switches with bevelled edge faceplate. Suitable for controlling both mains and low voltage lighting.
_Choose stylish finishes options: - Mirror Chrome - Iridium Black - Satin - Victorian Brass - Brushed Steel
_Insert colours options: - Black - Brass - Chrome - Iridium - Steel - White
_Available in 3, 4 or 6 gang options
_Range: Classic
Varilight classic 2 gang single pole 13 amps metal rockers switches and socket with USB charging ports. The USB port detects the device to be charged and optimises its output accordingly to achieve the fastest possible charging speed.
_Choose stylish plate finish options: - Mirror Chrome - Iridium Black - Satin - Victorian Brass
_Insert colours options: Black or White
_Metal Switches
_2 Gang
Varilight classic 2 gang single pole 13 amps switched socket and USB charging ports with bevelled edge faceplate. The USB port detects the device to be charged and optimises its output accordingly to achieve the fastest possible charging speed.
_Choose stylish plate finish options: - Mirror Chrome - Iridium Black - Satin - Pewter Effect - Victorian Brass - Brushed Steel
_Insert colours options: Black or White
_2 Gang
_Single Pole
Varilight 1-Gang 20 amps double pole rocker switch with neon indicator light. Rocker switches is available with insert colour options.
_Three insert colours options: - Black - White
_Finish: Mirror Chrome
_1-Gang
_Double Pole
Varilight 1-Gang 20 amps double pole rocker switch with bevelled edge faceplate. Rocker switches is available in a decorative finishes with insert colour options.
_Choose stylish finishes options: - Mirror Chrome - Iridium Black - Victorian Brass
_Three insert colours options: - Black - Iridium - White
_1-Gang
_Double Pole
Varilight V-Pro high wattage LED dimmer module that can dim up to 300W of LED load without needing to re-rate. Supplied as a module that can be used to retrofit onto existing dimmer switch plates. Ideal for use when higher loads are required.
_Max wattage: 300W
_Will dim up to 30 LED lights
_Contains trailing edge V-Pro dimming technology which can reprogrammed to emulate leading edge mode but isn't TRIAC.
_Smoother, silent dimming operation, no buzzing.
Varilight is the brand name of Doyle & Tratt Products Ltd the leading British manufacturer of dimmer switches and decorative switches and sockets supplying the UK retail market, the trade and OEMs. The launch of Varilight's international range has enabled the company to establish a presence in other European markets, the Middle East and Africa.
_Back Box Depth: 25mm
_Remote can be purchased seperately
_Gang: 1
_Measurements: 88mm:88mm:27mm
_Plate Style: Classic
British made LED Dimmer is an award winning, high quality dimmer switch, compatible with most mains and low voltage spotlights and bulb range, including dimmable GU10 LED bulbs. The dimmer is controlled by a state-of-the-art microprocessor that offers sophisticated overload protection, meaning if you mistakenly connect your dimmer to too many lights or transformers, it will protect itself from failure. This dimmer will give you complete control over your lighting ambience, thanks to its intelligent 2-way control mechanism and is also available in number of finishes acting as both a key aesthetic and technical component of your interior design.
_V-Pro dimmers are designed to control LED lighting loads requiring trailing-edge or leading-edge control with options from 0W-120W (max. 10 LEDs)
_Suitable for 1-10 good quality LED lamps per dimmer module
_V-Pro dimmers are suitable for dimmable LEDs, dimmable ESLs, electronic transformers, trailing edge, standard bulbs, GU10 and mains halogen
_Fits a 25 mm wall box
Mounting frames known as yokes for use with Varilight Power Grid, available in 1,2,3 and 4 gang. Allows switches to be mounted behind the plates.
_Varilight Power Grid frames (1-4 gang)
_Extending flexibility and choice for the Varilight range
_Compliments existing Dimension accessories and Data Grid
_Requires additional Power Grid plate and switches
Varilight 105W low voltage transformer range that has no minimum load. The 105W version isn't LED compatible, only the 50W version is.
_Input Voltage: 230V AC. +/- 10% 50Hz
_Output Voltage: 12V AC
_Input Current: 0.46A for 105W
_Power Range: 105VA: - 0-105W. No minimum load!
(Alternative Stock Code: XCPC) 6A Pull Switch Chrome Effect, 1- or 2-way switching using a pull cord, Can be installed in bathrooms, toilets and shower rooms (IP20), Can be installed in bathrooms, toilets and shower rooms (IP20).Dimensions
Height: 84mm
Width: 84mm
Depth: 35mm
The Varilight Urban range features a contemporary bevel-edge plate style with an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_Grid Pack (Plate and Yoke)
_1-Gang PowerGrid Plate including Yoke (Single Plate)
_Create your own switch combinations
_Varilight Urban: Inspirational finishes for stylish spaces
The Varilight Lily collection offers a range of painted plates in pastel and primary colours on a curved edge plate with a 7mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 86mm x 86mm. Double plate size: 88mm x 148mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.

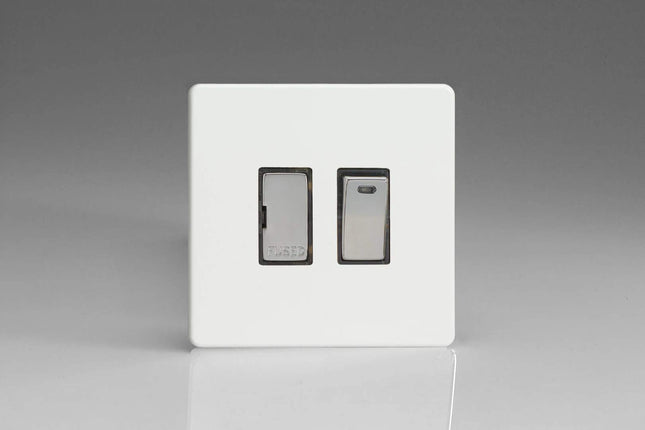

_Fused Spur
_13A Switched Fused Spur
_Double pole switching
_Holds standard 25.4x6.4mm fuse
_Replaceable 13A fuse included
The Varilight Urban range features a contemporary bevel-edge plate style with an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_Fused Spur
_13A Unswitched Fused Spur + Flex Outlet
_Cable clamp
_Holds standard 25.4x6.4mm fuse
_Replaceable 13A fuse included
