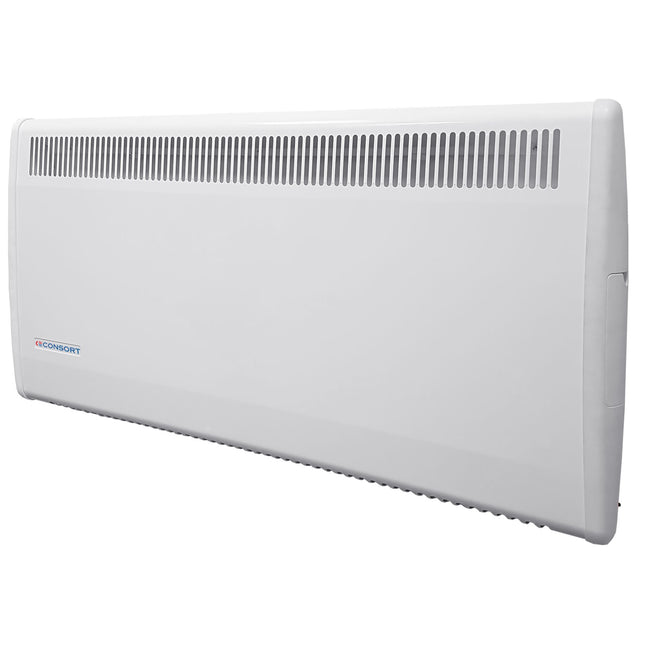

The PLE-MWIFI heaters are designed with a self-learning control ability which uses in-built occupancy sensors to detect and learn a user’s weekly presence in a room. It then creates a heating schedule and automatically warms the room according to the detected or predicted occupancy. When the room is unoccupied, the heater will conserve energy by switching to a setback temperature or frost protection mode.These heaters connect directly to WiFi and can be controlled either from the integral electronic 7-day timer or via the Consort Connect app, which provides complete control remotely. The free app can be downloaded from Google Play or Apple Store. It provides the same control features as the digital control panel on the heater and is simple to set up. With the app, users can configure the settings of all connected heaters and view energy usage on the last day, week, month and year.Dimensions: 430mm x 93mm x 720Weight: 6kg1.5kW rating.Can be controlled from digital control panel on the heater or via Consort Connect app on smartphone or tablet.7-day timer with 24 heating periods per day.With in-built occupancy sensors.Self-learning control ability utilising occupancy and temperature sensors.Ability to view energy consumption statistics.Open window tracking and response capability.Copy day function.4 operating modes: Programme, Boost, Setback & Manual.Boost option for up to 4 hours in 15-minutes steps.Comfort heat setting between 15°C to 35°C.Setback temperatures can be used for frost protection or maintaining a minimum room temperature between 4°C to 15°C.Maintains temperature within 0.7 degrees.Easy operation.Lock function with 4-digit pin code to prevent accidental or purposeful changes to settings.Slimline and clean design.Strengthened grilles to increase durability.Very quiet operation.Concealed digital controls on heater.Digital control panel has easy-to-read display and 4 large control buttons with tactile feedback.Splash proof to IP24 for use in bathrooms and other damp areas.Hinged wall mounting system for easy installation and decorating.Optional control panel locking kit (PLK1).Automatic safety cut-out.Fitted with 1.1m of supply cable.Finished in white.
These heaters utilise the high-energy, short-wave output of quartz halogen lamps to provide instantaneous, cost-effective heat in large areas where it is not practical or economical to raise the overall temperature.
Short-wave high-intensity radiant heat, like sunlight, provides warmth you can feel the moment the heaters are switched on. This minimises pre-heating time and running costs. Quartzzone heaters feature highly efficient, long-lasting anodised aluminium reflectors that direct a focused beam of heat on to a specific area.
1.5kW, 2kW, 3kW or 4.5kW models
4.5kW model is suitable for single or three phase supply
Instant heat
Ideal for high level use
Fitted guard included
Suitable for wall or ceiling mounting
Angular and directional fixing bracket included
Optional Softstart Control available � QSC3 or QSC6
Gold lamps are available on request
An optional humidity resistant lamp is available for use in damp buildings
Finished in dove white
These heaters utilise the high-energy, short-wave output of quartz halogen lamps to provide instantaneous, cost-effective heat in large areas where it is not practical or economical to raise the overall temperature.
Short-wave high-intensity radiant heat, like sunlight, provides warmth you can feel the moment the heaters are switched on. This minimises pre-heating time and running costs. Quartzzone heaters feature highly efficient, long-lasting anodised aluminium reflectors that direct a focused beam of heat on to a specific area.
1.5kW, 2kW, 3kW or 4.5kW models
4.5kW model is suitable for single or three phase supply
Instant heat
Ideal for high level use
Fitted guard included
Suitable for wall or ceiling mounting
Angular and directional fixing bracket included
Optional Softstart Control available � QSC3 or QSC6
Gold lamps are available on request
An optional humidity resistant lamp is available for use in damp buildings
Finished in dove white

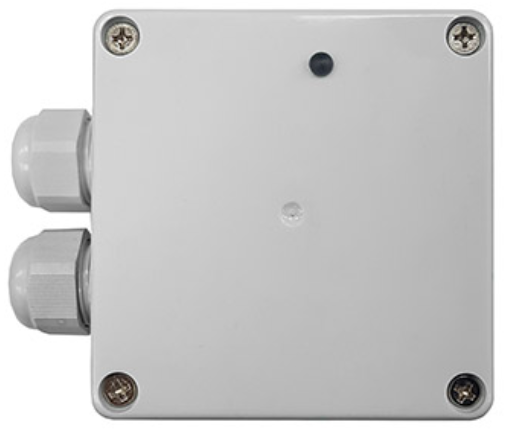

Softstart Controls for Quartz Heating
The QSC3 and QSC6 are specifically designed to control the operation of up to 3kW and 6kW of quartz heating respectively. These controls provide a soft start when initially switching the quartz heaters on, thereby removing the surge of electricity normally associated with this type of heater. This will prolong the life span of the quartz lamps.
The softstart controls also incorporate a receiver function which provides users with the option to control the quartz heater with a wireless SL time control.
Can control up to 3kW or 6kW of quartz heating load
Eliminates power on surge
Prolongs quartz lamp life
Can operate multiple quartz heaters (up to 3kW with QSC3 or 6kW with QSC6)
Weatherproof for outdoor use � IP65 rated
Easy to install
Additional benefits when used in conjunction with optional SL controller:
� Saving energy by ensuring that the heaters are only on when you need them to be
� Reduces installation wiring costs by eliminating the need for an extra cable connecting to a remote switch
Softstart Controls for Quartz Heating
The QSC3 and QSC6 are specifically designed to control the operation of up to 3kW and 6kW of quartz heating respectively. These controls provide a soft start when initially switching the quartz heaters on, thereby removing the surge of electricity normally associated with this type of heater. This will prolong the life span of the quartz lamps.
The softstart controls also incorporate a receiver function which provides users with the option to control the quartz heater with a wireless SL time control.
Can control up to 3kW or 6kW of quartz heating load
Eliminates power on surge
Prolongs quartz lamp life
Can operate multiple quartz heaters (up to 3kW with QSC3 or 6kW with QSC6)
Weatherproof for outdoor use � IP65 rated
Easy to install
Additional benefits when used in conjunction with optional SL controller:
� Saving energy by ensuring that the heaters are only on when you need them to be
� Reduces installation wiring costs by eliminating the need for an extra cable connecting to a remote switch
Surface ceiling fan heaters are suitable for supermarket and showroom areas or where heat is required locally. They are designed to be suspended via its integral anchorage points and with a completely enclosed housing ensuring ease of installation. Recessed ceiling heaters are designed for discreet positioning in a suspended 600mm standard ceiling panel. They are ideal to heat areas where wall and floor space is at a premium such as shops and offices.
RX Ceiling Fan Heaters
3kW, 4.5kW or 6kW rating
Compatible with advanced single zone controllers*
Fan only setting for air circulation
Wider operation range
Quiet operation
Sealed heater box for improved energy efficiency
Will fit shallow 210mm recess
Safety monitoring feature: The light on the heater will flash indicating the nature of the fault
LED indicator light

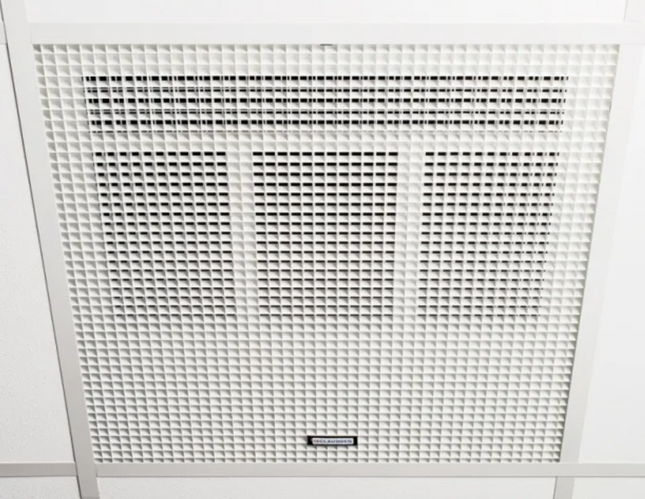

SL Ceiling Fan Heaters
3kW, 4.5kW or 6kW rating
Compatible with any Consort wireless controller
Quiet operation
Sealed heater box for improved energy efficiency
Will fit shallow 210mm recess
LED indicator light
* Advanced single zone controllers: CRXSL, CRXSLWIFI, HRXSL and LC wireless controllers
All wireless controllers are to be purchased separately.
Surface ceiling fan heaters are suitable for supermarket and showroom areas or where heat is required locally. They are designed to be suspended via its integral anchorage points and with a completely enclosed housing ensuring ease of installation. Recessed ceiling heaters are designed for discreet positioning in a suspended 600mm standard ceiling panel. They are ideal to heat areas where wall and floor space is at a premium such as shops and offices.

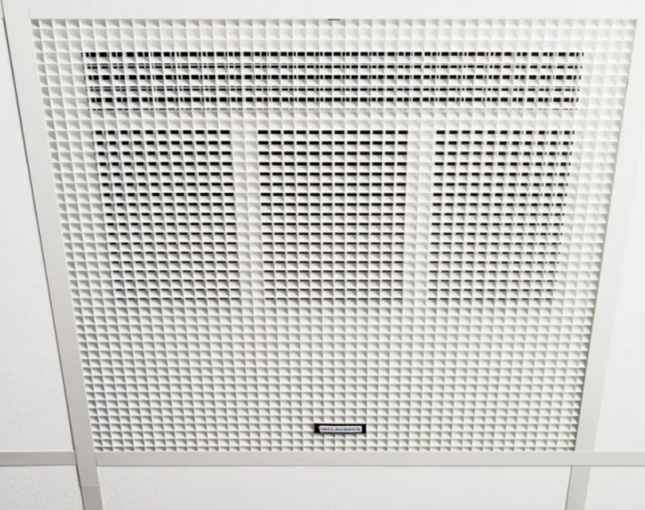

RX Ceiling Fan Heaters
3kW, 4.5kW or 6kW rating
Compatible with advanced single zone controllers*
Fan only setting for air circulation
Wider operation range
Quiet operation
Sealed heater box for improved energy efficiency
Will fit shallow 210mm recess
Safety monitoring feature: The light on the heater will flash indicating the nature of the fault
LED indicator light
SL Ceiling Fan Heaters
3kW, 4.5kW or 6kW rating
Compatible with any Consort wireless controller
Quiet operation
Sealed heater box for improved energy efficiency
Will fit shallow 210mm recess
LED indicator light
* Advanced single zone controllers: CRXSL, CRXSLWIFI, HRXSL and LC wireless controllers
All wireless controllers are to be purchased separately.
Surface ceiling fan heaters are suitable for supermarket and showroom areas or where heat is required locally. They are designed to be suspended via its integral anchorage points and with a completely enclosed housing ensuring ease of installation. Recessed ceiling heaters are designed for discreet positioning in a suspended 600mm standard ceiling panel. They are ideal to heat areas where wall and floor space is at a premium such as shops and offices.
RX Ceiling Fan Heaters
3kW, 4.5kW or 6kW rating
Compatible with advanced single zone controllers*
Fan only setting for air circulation
Wider operation range
Quiet operation
Sealed heater box for improved energy efficiency
Will fit shallow 210mm recess
Safety monitoring feature: The light on the heater will flash indicating the nature of the fault
LED indicator light
SL Ceiling Fan Heaters
3kW, 4.5kW or 6kW rating
Compatible with any Consort wireless controller
Quiet operation
Sealed heater box for improved energy efficiency
Will fit shallow 210mm recess
LED indicator light
* Advanced single zone controllers: CRXSL, CRXSLWIFI, HRXSL and LC wireless controllers
All wireless controllers are to be purchased separately.
The remote control switch box or HE8407 is for use with the 3 kW and 4.5 kW Screen Zone curtain heaters HE7402, 7420 & 8320, and the 6 kW Screen Zone curtain heater HE7426. The unit comprises of one 32A double pole and two 20A switches in a surface mounting box, 166 mm x 86 mm x 40 mm deep. The unit is supplied wired for use.
Remote switching away from the air curtain
Half heat switching
Fan only setting for air circulation
Supplied in a surface mounting box

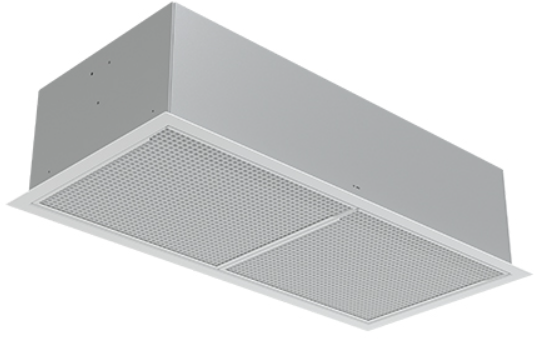

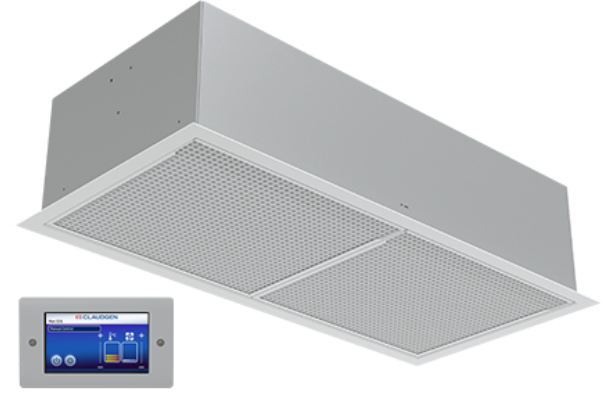

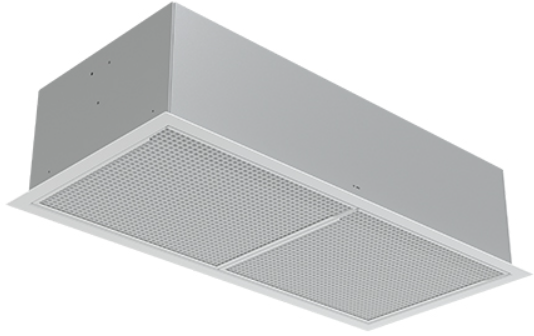

RAC-HL Large Recessed Air Curtains � Screenzone 8 / 12kW, 12 / 18kW & 16 / 24kW
8 / 12kW, 12 / 18kW or 16 / 24kW rating, selectable at installation.
Supplied with electronic controller, external temperature sensor and RJ45 cable.
415 volt 3 phase 50Hz.
Will fit a recess as shallow as 300mm.
8 heat settings, 8 fan speeds.
7-day timer.
Fan only setting for air circulation.
Optional simple mechanical remote switch HE8408 available.
Compatible with Building Management Systems.
Electronic overheat and fault protection.
Visual fault indication.
Simple installation.
Easy maintenance.
Easy programming.
Supplied with hinged white non-vision grille.
FEATURES AND BENEFITS
ELECTRONIC CONTROLLER
The electronic touchscreen controller provides easy usability and simple installation. It can operate in basic or advanced mode and provides many features such as multiple air curtains control and a 7-day timer. The controller also displays the temperature and fan speed for connected air curtains.
MAJOR ENERGY & COST SAVINGS
The electronic controller is able to provide an efficient climate control through clever regulation of fan speed and heat. This helps to prevent unnecessary energy usage and reduces heat loss around open doors. The low energy consumption of the EC fans installed in the air curtains also help with energy and cost savings.
ENERGY USAGE SCREEN
The controller features an energy usage screen which shows energy consumption of all connected air curtains in the last day, week, month and year.
ADJUSTABLE POWER OUTPUT
Users can select between standard or high power output for each model. This allows the user to select the correct kW rating for their application.
SUITABLE FOR WIDER DOORWAYS
Available in 1m, 1.5m and 2m lengths. Multiple air curtains can be easily interconnected using CAT5/CAT6 RJ45 networking cable to resemble a continuous unit.
ENHANCED SECURITY
The controller can be security coded to prevent unauthorised access.
TEMPERATURE SENSOR
The external temperature sensor can be used indoors or outdoors which enables the electronic controller to optimise the fan speed and heat output to create an efficient optimal barrier and climate protection.
ELECTRONIC CONTROLLER FEATURES
Simple installation:
No intermediary terminal blocks required, wiring is via plug and play cable and connectors are direct to the controller.
Electronic controller can control up to 7 air curtains with the same settings.
Easy-to-use interface and simple to set up.
4 different modes:
� Manual: User sets desired fan speed and heat settings.
� Automatic: User sets air curtain�s mounting height and the programme will automatically modify the ventilation and heating to provide high separation efficiency and optimum comfort.
� Constant Temperature: Maintains a constant outlet temperature whilst regulating the air curtain velocity to maintain the optimum level of air separation.
� Advanced Control: User sets a temperature range and the programme will automatically adjust heating as a higher target temperature is approached.
Enhanced security:
By setting a four-digit pin code, users can prevent unauthorised access to the controller.
Displays energy usage of all connected air curtains in the last day, week, month and year.
Heater status shows temperature and fan speed of connected air curtains.
7-day timer.
RAC-HL Large Recessed Air Curtains � Screenzone 8 / 12kW, 12 / 18kW & 16 / 24kW
8 / 12kW, 12 / 18kW or 16 / 24kW rating, selectable at installation.
Supplied with electronic controller, external temperature sensor and RJ45 cable.
415 volt 3 phase 50Hz.
Will fit a recess as shallow as 300mm.
8 heat settings, 8 fan speeds.
7-day timer.
Fan only setting for air circulation.
Optional simple mechanical remote switch HE8408 available.
Compatible with Building Management Systems.
Electronic overheat and fault protection.
Visual fault indication.
Simple installation.
Easy maintenance.
Easy programming.
Supplied with hinged white non-vision grille.
FEATURES AND BENEFITS
ELECTRONIC CONTROLLER
The electronic touchscreen controller provides easy usability and simple installation. It can operate in basic or advanced mode and provides many features such as multiple air curtains control and a 7-day timer. The controller also displays the temperature and fan speed for connected air curtains.
MAJOR ENERGY & COST SAVINGS
The electronic controller is able to provide an efficient climate control through clever regulation of fan speed and heat. This helps to prevent unnecessary energy usage and reduces heat loss around open doors. The low energy consumption of the EC fans installed in the air curtains also help with energy and cost savings.
ENERGY USAGE SCREEN
The controller features an energy usage screen which shows energy consumption of all connected air curtains in the last day, week, month and year.
ADJUSTABLE POWER OUTPUT
Users can select between standard or high power output for each model. This allows the user to select the correct kW rating for their application.
SUITABLE FOR WIDER DOORWAYS
Available in 1m, 1.5m and 2m lengths. Multiple air curtains can be easily interconnected using CAT5/CAT6 RJ45 networking cable to resemble a continuous unit.
ENHANCED SECURITY
The controller can be security coded to prevent unauthorised access.
TEMPERATURE SENSOR
The external temperature sensor can be used indoors or outdoors which enables the electronic controller to optimise the fan speed and heat output to create an efficient optimal barrier and climate protection.
ELECTRONIC CONTROLLER FEATURES
Simple installation:
No intermediary terminal blocks required, wiring is via plug and play cable and connectors are direct to the controller.
Electronic controller can control up to 7 air curtains with the same settings.
Easy-to-use interface and simple to set up.
4 different modes:
� Manual: User sets desired fan speed and heat settings.
� Automatic: User sets air curtain�s mounting height and the programme will automatically modify the ventilation and heating to provide high separation efficiency and optimum comfort.
� Constant Temperature: Maintains a constant outlet temperature whilst regulating the air curtain velocity to maintain the optimum level of air separation.
� Advanced Control: User sets a temperature range and the programme will automatically adjust heating as a higher target temperature is approached.
Enhanced security:
By setting a four-digit pin code, users can prevent unauthorised access to the controller.
Displays energy usage of all connected air curtains in the last day, week, month and year.
Heater status shows temperature and fan speed of connected air curtains.
7-day timer.
RAC-HL Large Recessed Air Curtains � Screenzone 8 / 12kW, 12 / 18kW & 16 / 24kW
8 / 12kW, 12 / 18kW or 16 / 24kW rating, selectable at installation.
Supplied with electronic controller, external temperature sensor and RJ45 cable.
415 volt 3 phase 50Hz.
Will fit a recess as shallow as 300mm.
8 heat settings, 8 fan speeds.
7-day timer.
Fan only setting for air circulation.
Optional simple mechanical remote switch HE8408 available.
Compatible with Building Management Systems.
Electronic overheat and fault protection.
Visual fault indication.
Simple installation.
Easy maintenance.
Easy programming.
Supplied with hinged white non-vision grille.
FEATURES AND BENEFITS
ELECTRONIC CONTROLLER
The electronic touchscreen controller provides easy usability and simple installation. It can operate in basic or advanced mode and provides many features such as multiple air curtains control and a 7-day timer. The controller also displays the temperature and fan speed for connected air curtains.
MAJOR ENERGY & COST SAVINGS
The electronic controller is able to provide an efficient climate control through clever regulation of fan speed and heat. This helps to prevent unnecessary energy usage and reduces heat loss around open doors. The low energy consumption of the EC fans installed in the air curtains also help with energy and cost savings.
ENERGY USAGE SCREEN
The controller features an energy usage screen which shows energy consumption of all connected air curtains in the last day, week, month and year.
ADJUSTABLE POWER OUTPUT
Users can select between standard or high power output for each model. This allows the user to select the correct kW rating for their application.
SUITABLE FOR WIDER DOORWAYS
Available in 1m, 1.5m and 2m lengths. Multiple air curtains can be easily interconnected using CAT5/CAT6 RJ45 networking cable to resemble a continuous unit.
ENHANCED SECURITY
The controller can be security coded to prevent unauthorised access.
TEMPERATURE SENSOR
The external temperature sensor can be used indoors or outdoors which enables the electronic controller to optimise the fan speed and heat output to create an efficient optimal barrier and climate protection.
ELECTRONIC CONTROLLER FEATURES
Simple installation:
No intermediary terminal blocks required, wiring is via plug and play cable and connectors are direct to the controller.
Electronic controller can control up to 7 air curtains with the same settings.
Easy-to-use interface and simple to set up.
4 different modes:
� Manual: User sets desired fan speed and heat settings.
� Automatic: User sets air curtain�s mounting height and the programme will automatically modify the ventilation and heating to provide high separation efficiency and optimum comfort.
� Constant Temperature: Maintains a constant outlet temperature whilst regulating the air curtain velocity to maintain the optimum level of air separation.
� Advanced Control: User sets a temperature range and the programme will automatically adjust heating as a higher target temperature is approached.
Enhanced security:
By setting a four-digit pin code, users can prevent unauthorised access to the controller.
Displays energy usage of all connected air curtains in the last day, week, month and year.
Heater status shows temperature and fan speed of connected air curtains.
7-day timer.
Screenzone Extra Wide Air Curtains 9kW � 18kW
Screenzone extra wide air curtains providing a welcoming curtain of warmth for extra tall and wide double doorways in shops, hotels, offices and other commercial premises.
9kW, 12kW, 14kW, 15kW, 16kW or 18kW rating.
Single/3 phase on CA1309S.
3 phase only on CA1312S, CA15 and CA20 models.
Suspended or wall mounted.
Supplied with HE8408 remote switch.
Optional ACMC (Air Curtain Master Controller) and ACTS (Air Curtain Temperature Sensor) available.
ACTS must be used in conjunction with ACMC.
2 heat settings, 2 fan speeds with remote switch.
8 heat settings, 8 fan speeds with optional ACMC.
Energy efficient brushless motor.
Multiple heaters can be controlled from one switch.
Fan only setting for air circulation.
Automatic safety cut-out for thermal overload protection.
Safety monitoring feature: The feature will detect and display the nature of the fault on the display screen of ACMC controller. If ACMC controller is not used, the LED indicator light located under the heater cover will flash indicating the nature of the fault.
Compatible with Building Management Systems.
Finished in white.
Screenzone Extra Wide Air Curtains 9kW � 18kW
Screenzone extra wide air curtains providing a welcoming curtain of warmth for extra tall and wide double doorways in shops, hotels, offices and other commercial premises.
9kW, 12kW, 14kW, 15kW, 16kW or 18kW rating.
Single/3 phase on CA1309S.
3 phase only on CA1312S, CA15 and CA20 models.
Suspended or wall mounted.
Supplied with HE8408 remote switch.
Optional ACMC (Air Curtain Master Controller) and ACTS (Air Curtain Temperature Sensor) available.
ACTS must be used in conjunction with ACMC.
2 heat settings, 2 fan speeds with remote switch.
8 heat settings, 8 fan speeds with optional ACMC.
Energy efficient brushless motor.
Multiple heaters can be controlled from one switch.
Fan only setting for air circulation.
Automatic safety cut-out for thermal overload protection.
Safety monitoring feature: The feature will detect and display the nature of the fault on the display screen of ACMC controller. If ACMC controller is not used, the LED indicator light located under the heater cover will flash indicating the nature of the fault.
Compatible with Building Management Systems.
Finished in white.
Screenzone Extra Wide Air Curtains 9kW � 18kW
Screenzone extra wide air curtains providing a welcoming curtain of warmth for extra tall and wide double doorways in shops, hotels, offices and other commercial premises.
9kW, 12kW, 14kW, 15kW, 16kW or 18kW rating.
Single/3 phase on CA1309S.
3 phase only on CA1312S, CA15 and CA20 models.
Suspended or wall mounted.
Supplied with HE8408 remote switch.
Optional ACMC (Air Curtain Master Controller) and ACTS (Air Curtain Temperature Sensor) available.
ACTS must be used in conjunction with ACMC.
2 heat settings, 2 fan speeds with remote switch.
8 heat settings, 8 fan speeds with optional ACMC.
Energy efficient brushless motor.
Multiple heaters can be controlled from one switch.
Fan only setting for air circulation.
Automatic safety cut-out for thermal overload protection.
Safety monitoring feature: The feature will detect and display the nature of the fault on the display screen of ACMC controller. If ACMC controller is not used, the LED indicator light located under the heater cover will flash indicating the nature of the fault.
Compatible with Building Management Systems.
Finished in white.
Screenzone Extra Wide Air Curtains 9kW � 18kW
Screenzone extra wide air curtains providing a welcoming curtain of warmth for extra tall and wide double doorways in shops, hotels, offices and other commercial premises.
9kW, 12kW, 14kW, 15kW, 16kW or 18kW rating.
Single/3 phase on CA1309S.
3 phase only on CA1312S, CA15 and CA20 models.
Suspended or wall mounted.
Supplied with HE8408 remote switch.
Optional ACMC (Air Curtain Master Controller) and ACTS (Air Curtain Temperature Sensor) available.
ACTS must be used in conjunction with ACMC.
2 heat settings, 2 fan speeds with remote switch.
8 heat settings, 8 fan speeds with optional ACMC.
Energy efficient brushless motor.
Multiple heaters can be controlled from one switch.
Fan only setting for air circulation.
Automatic safety cut-out for thermal overload protection.
Safety monitoring feature: The feature will detect and display the nature of the fault on the display screen of ACMC controller. If ACMC controller is not used, the LED indicator light located under the heater cover will flash indicating the nature of the fault.
Compatible with Building Management Systems.
Finished in white.
Screenzone Extra Wide Air Curtains 9kW � 18kW
Screenzone extra wide air curtains providing a welcoming curtain of warmth for extra tall and wide double doorways in shops, hotels, offices and other commercial premises.
9kW, 12kW, 14kW, 15kW, 16kW or 18kW rating.
Single/3 phase on CA1309S.
3 phase only on CA1312S, CA15 and CA20 models.
Suspended or wall mounted.
Supplied with HE8408 remote switch.
Optional ACMC (Air Curtain Master Controller) and ACTS (Air Curtain Temperature Sensor) available.
ACTS must be used in conjunction with ACMC.
2 heat settings, 2 fan speeds with remote switch.
8 heat settings, 8 fan speeds with optional ACMC.
Energy efficient brushless motor.
Multiple heaters can be controlled from one switch.
Fan only setting for air circulation.
Automatic safety cut-out for thermal overload protection.
Safety monitoring feature: The feature will detect and display the nature of the fault on the display screen of ACMC controller. If ACMC controller is not used, the LED indicator light located under the heater cover will flash indicating the nature of the fault.
Compatible with Building Management Systems.
Finished in white.
The double door air curtains provide a welcoming curtain of warmth for standard height double doorways in shops, hotels, offices and other commercial premises.
4.5kW or 6kW rating
Wall mounting bracket supplied for ease of installation and angular adjustment
Suspended, wall or trunking mounted
Fitted with integral switches
Optional remote switch HE8407
2 heat settings HE7426, 3 heat settings HE8320
1 fan speed
Single phase
Fan only setting for air circulation
Automatic safety cut-out for thermal overload protection
Finished in white
A welcoming curtain of warmth for doorways in shops, hotels, offices and other commercial premises. Overall energy savings are likely when an air curtain is sited above a frequently opened external door as the airstream can prevent heat loss.
3kW or 4.5kW rating
Wall mounting bracket supplied for ease of installation and angular adjustment
Suspended, wall or trunking mounted
Fitted with integral switches
Optional remote switch HE8407
3 heat settings, 1 fan speed
Single phase
Fan only setting for air circulation
Automatic safety cut-out for thermal overload protection
Finished in white
The tall double door air curtains provide a welcoming curtain of warmth for tall, double width doorways in shops, hotels, offices and other commercial premises.
6kW or 9kW rating
Single or 3 phase
Wall mounting bracket supplied for ease of installation and angular adjustment
Suspended, wall or trunking mounted
Supplied with remote switch
3 heat settings and 2 fan speeds
Fan only setting for air circulation
Automatic safety cut-out
Compatible with Building Management System (BMS)
Finished in white
The tall double door air curtains provide a welcoming curtain of warmth for tall, double width doorways in shops, hotels, offices and other commercial premises.
6kW or 9kW rating
Single or 3 phase
Wall mounting bracket supplied for ease of installation and angular adjustment
Suspended, wall or trunking mounted
Supplied with remote switch
3 heat settings and 2 fan speeds
Fan only setting for air circulation
Automatic safety cut-out
Compatible with Building Management System (BMS)
Finished in white
RX Surface Mounted Air Curtains � Screenzone 3kW, 4.5kW or 6kW
A welcoming curtain of warmth for standard height doorways in shops, hotels, offices and other commercial premises.
3kW, 4.5kW or 6kW rating
634mm and 1040mm widths
Wall-mounted bracket supplied for ease of installation and angular adjustment
Suspended, wall or trunking mounted
Wireless controlled by a separately purchased advanced single zone wireless controller*
Fan only setting for air circulation
Automatic safety cut-out for thermal overload protection
Safety monitoring feature: The light on the heater will flash indicating the nature of the fault
Only 200mm clearance from ceiling required
Finished in white
A welcoming curtain of warmth for standard height doorways in shops, hotels, offices and other commercial premises.
3kW, 4.5kW or 6kW rating
634mm and 1040mm widths
Wall-mounted bracket supplied for ease of installation and angular adjustment
Suspended, wall or trunking mounted
Wireless controlled by a separately purchased advanced single zone wireless controller*
Fan only setting for air circulation
Automatic safety cut-out for thermal overload protection
Safety monitoring feature: The light on the heater will flash indicating the nature of the fault
Only 200mm clearance from ceiling required
Finished in white
* Advanced single zone controllers: CRXSL, CRXSLWIFI, HRXSL and LC controllers
RX Recessed Air Curtains � Screenzone 3kW, 4.5kW & 6kW
Designed to fit above a doorway in a suspended ceiling, these air curtains provide a discreet welcoming curtain of warmth for doorways in shops, hotels, offices and commercial premises.
RAC0603RX, RAC0604RX and RAC1006RX
3kW, 4.5kW or 6kW rating
Single phase
Will fit a recess as shallow as 210mm (155mm unit depth plus 55mm free air)
Wireless controlled by a separately purchased advanced single zone controller
Compatible with CRXSL, HRXSL and LC controllers
All controllers can operate multiple RX heaters
Fan only setting for air circulation
Automatic safety cut-out for thermal overload protection
Safety monitoring feature: The light on the heater will flash indicating the nature of the fault
Supplied with white grille
RAC1306RX
6kW rating
Single or 3 phase
Will fit a recess as shallow as 230mm (175mm unit depth plus 55mm free air)
Wireless controlled by a separately purchased advanced single zone controller
Compatible with CRXSL, HRXSL and LC controllers
All controllers can operate multiple RX heaters
Fan only setting for air circulation
Automatic safety cut-out for thermal overload protection
Safety monitoring feature: The light on the heater will flash indicating the nature of the fault
Supplied with white grille
RX Recessed Air Curtains � Screenzone 3kW, 4.5kW & 6kW
Designed to fit above a doorway in a suspended ceiling, these air curtains provide a discreet welcoming curtain of warmth for doorways in shops, hotels, offices and commercial premises.
RAC0603RX, RAC0604RX and RAC1006RX
3kW, 4.5kW or 6kW rating
Single phase
Will fit a recess as shallow as 210mm (155mm unit depth plus 55mm free air)
Wireless controlled by a separately purchased advanced single zone controller
Compatible with CRXSL, HRXSL and LC controllers
All controllers can operate multiple RX heaters
Fan only setting for air circulation
Automatic safety cut-out for thermal overload protection
Safety monitoring feature: The light on the heater will flash indicating the nature of the fault
Supplied with white grille
RAC1306RX
6kW rating
Single or 3 phase
Will fit a recess as shallow as 230mm (175mm unit depth plus 55mm free air)
Wireless controlled by a separately purchased advanced single zone controller
Compatible with CRXSL, HRXSL and LC controllers
All controllers can operate multiple RX heaters
Fan only setting for air circulation
Automatic safety cut-out for thermal overload protection
Safety monitoring feature: The light on the heater will flash indicating the nature of the fault
Supplied with white grille
RX Recessed Air Curtains � Screenzone 3kW, 4.5kW & 6kW
Designed to fit above a doorway in a suspended ceiling, these air curtains provide a discreet welcoming curtain of warmth for doorways in shops, hotels, offices and commercial premises.
RAC0603RX, RAC0604RX and RAC1006RX
3kW, 4.5kW or 6kW rating
Single phase
Will fit a recess as shallow as 210mm (155mm unit depth plus 55mm free air)
Wireless controlled by a separately purchased advanced single zone controller
Compatible with CRXSL, HRXSL and LC controllers
All controllers can operate multiple RX heaters
Fan only setting for air circulation
Automatic safety cut-out for thermal overload protection
Safety monitoring feature: The light on the heater will flash indicating the nature of the fault
Supplied with white grille
RAC1306RX
6kW rating
Single or 3 phase
Will fit a recess as shallow as 230mm (175mm unit depth plus 55mm free air)
Wireless controlled by a separately purchased advanced single zone controller
Compatible with CRXSL, HRXSL and LC controllers
All controllers can operate multiple RX heaters
Fan only setting for air circulation
Automatic safety cut-out for thermal overload protection
Safety monitoring feature: The light on the heater will flash indicating the nature of the fault
Supplied with white grille
The new CRXSL wireless controller is slim and designed for wall recessing. It seamlessly manages all RX or SL heater models. It�s mains-powered, compatible with standard double gang boxes, and features a large, backlit LCD display for easy reading. It allows for six daily temperature adjustments across the week.
It includes an optional open/close window detection feature which reacts intelligently to temperature changes in the area or room, turning off the heating to save energy when it senses a sudden drop from an open window or door. It restarts once the window or door is shut. Settings for detection time and temperature can be customised in the setup menu.
Mains-powered
Slim design and wall recessing
Compatible with all RX and SL heaters
Quick and simple pairing to heaters
Has a battery backup which will keep the correct time, adjusts for British Summer Time, and retains all schedules and settings even during power interruptions.
Open window detection � Once enabled in the setup menu, the feature is fully automatic and doesn�t require further intervention.
Large backlit LCD display for easy reading
Simple to set up and easy to programme
15-minutes Boost feature providing maximum comfort quickly with temperature control
5 different operating modes:
� Automatic
� Manual temperature control
� Comfort
� Setback
� Fan only mode for RX fan heaters
Electronic child lock
Option to limit min/max temperature
Temperature display of either degrees Celsius or Fahrenheit
Fits onto standard double gang box
Suitable for any commercial premises or student accommodation where a heating cycle is required to be operational only when a controller is activated. á 3 operating modes: - Basic: Switches the heater on and off when button is pressed. - Timer: Controller acts as a 4 stage run-back timer where heating period will be active until run-back timer expires. - Temperature control: Features temperature control for comfort and setback periods. á Choice of 3 time periods in Timer mode: 5, 15 or 30 minutes á Setback temperatures can be used for frost protection or maintaining a minimum room temperature á Comfort temperature will maintain the set room temperature á 4 light indicators around the button to show the status of the controller á Easy operation á External input available to connect to any voltage free contact such as timers or BMS á Can be powered by either mains 240V or 12VDC
As a receiver unit, the SLEXT enables certain heaters to be wirelessly controlled by a CRXSL or SL controller. With SLEXT installed, a CRXSL or SL controller expands the heating control options to include temperature and time control.
As a range extender, the SLEXT extends the RF signal range SL heaters that are not close enough to receive wireless transmission. It is surface mountable and easy to install.
Mains powered.
Can control load up to 3kW.
Maximum switching current 13A/250V.
Can be retrofitted.
Each heater must be connected to an SLEXT for it to be controlled by a CRXSL or SL controller.
Multiple heaters can be controlled by a separately purchased CRXSL or SL controller.
Can double the range of all SL or CRXSL controllers.
Simple pairing to controller and heaters.
The Consort PLSTiE low surface temperature wall mounted fan heaters are very slim and contemporary in design.
Features open window detection which recognises a sudden temperature drop when a window is opened and turns
the heating off to save energy. Once the window is closed, the temperature change triggers the heating to resume its
normal operation. The intelligent fan control optimises fan speed and heat output to quickly achieve and control a
comfort temperature whilst maintaining a very low noise level.
These heaters are designed with a maximum surface temperature of 43�C, complying with NHS Estates Health
Guidance Notes, to minimise the risk of burn injuries. Being extremely economical to run and splash proof, they make
the perfect choice where space saving, style and efficiency are paramount. Ideal for nurseries, hospitals and
retirement homes, these fan heaters provide a high level of safety and controllability.
� Available in 0.5kW, 0.75kW, 1kW and 1.5kW
� Safety monitoring: In the unlikely event of a fault, the safety
monitoring will help prevent high surface temperatures and
the light on the heater will flash indicating the nature of the
fault.
� Intelligent fan control: The fan speed of the heater
automatically adjusts relative to the room�s temperature and
heat output in order to achieve a warm airflow. This prevents
the heater from blowing cold air.
� Incorporates EC motor for improved energy efficiency
� Maximum surface temperature of 43�C to comply with NHS
Estates Health Guidelines Notes
� 7-day timer with electronic thermostat
� 6 heating periods per day
� Battery backup for real-time clock
� Quiet operation
� Open window detection
� Copy day function
� Concealed digital controls
� 4 operating modes: Programme, Boost, Setback & Manual
� 15-minutes Boost feature
� Comfort heat setting between 15�C to 35�C
� Setback temperatures can be used for frost protection or
maintaining a minimum room temperature between 4�C to
15�C
� Automatic safety cut-out
� Can set temperatures in degrees Celsius or Fahrenheit
� Maintains temperature within 0.7 degrees
� Easy-to-read display
� Easy operation
� 4 large control buttons with tactile feedback
� Electronic child lock to prevent tampering with controls
� Optional control panel locking kit (PLK1)
� Slimline and clean design
� Splash proof to IP24 for use in bathrooms and other
damp areas
� Hinged wall mounting system for easy installation and
decorating
� Fitted with 1.1m of supply cable
� Finished in white
The wall-mounted low surface temperature PLSTi LST fan heaters are slim and contemporary. Being economical to run and splashproof, they make the perfect choice where space-saving and efficiency with style are paramount.
Ideal for nurseries, hospitals and retirement homes, these low surface temperature, thermostatically controlled fan heaters provide a high level of safety, controllability and style.
0.5kW, 0.75kW, 1kW or 1.5kW rating.
Compatible with any Consort wireless controller.
Maximum surface temperature of 43�C to comply with NHS Estates Health Guidelines Notes.
Safety monitoring: In the unlikely event of a fault, the safety monitoring will help prevent high surface temperatures and the light on the heater will flash indicating the nature of the fault.
Intelligent Fan Control: The fan speed of the heater automatically adjusts relative to the room�s temperature and heat output in order to achieve a warm control. This prevents the heater from blowing cold air.
Operates on a very low noise level.
Incorporates EC motor for improved energy efficiency.
Strengthened grille to increase durability.
LED indicator light.
Slimline design.
Automatic safety cut-out.
Splash proof to IP24 for use in bathrooms and other damp areas.
Hinged wall mounting system for easy installation and decorating.
Finished in white.
All wireless controllers are to be purchased separately.
The Consort PLSTiE low surface temperature wall mounted fan heaters are very slim and contemporary in design.
Features open window detection which recognises a sudden temperature drop when a window is opened and turns
the heating off to save energy. Once the window is closed, the temperature change triggers the heating to resume its
normal operation. The intelligent fan control optimises fan speed and heat output to quickly achieve and control a
comfort temperature whilst maintaining a very low noise level.
These heaters are designed with a maximum surface temperature of 43�C, complying with NHS Estates Health
Guidance Notes, to minimise the risk of burn injuries. Being extremely economical to run and splash proof, they make
the perfect choice where space saving, style and efficiency are paramount. Ideal for nurseries, hospitals and
retirement homes, these fan heaters provide a high level of safety and controllability.
� Available in 0.5kW, 0.75kW, 1kW and 1.5kW
� Safety monitoring: In the unlikely event of a fault, the safety
monitoring will help prevent high surface temperatures and
the light on the heater will flash indicating the nature of the
fault.
� Intelligent fan control: The fan speed of the heater
automatically adjusts relative to the room�s temperature and
heat output in order to achieve a warm airflow. This prevents
the heater from blowing cold air.
� Incorporates EC motor for improved energy efficiency
� Maximum surface temperature of 43�C to comply with NHS
Estates Health Guidelines Notes
� 7-day timer with electronic thermostat
� 6 heating periods per day
� Battery backup for real-time clock
� Quiet operation
� Open window detection
� Copy day function
� Concealed digital controls
� 4 operating modes: Programme, Boost, Setback & Manual
� 15-minutes Boost feature
� Comfort heat setting between 15�C to 35�C
� Setback temperatures can be used for frost protection or
maintaining a minimum room temperature between 4�C to
15�C
� Automatic safety cut-out
� Can set temperatures in degrees Celsius or Fahrenheit
� Maintains temperature within 0.7 degrees
� Easy-to-read display
� Easy operation
� 4 large control buttons with tactile feedback
� Electronic child lock to prevent tampering with controls
� Optional control panel locking kit (PLK1)
� Slimline and clean design
� Splash proof to IP24 for use in bathrooms and other
damp areas
� Hinged wall mounting system for easy installation and
decorating
� Fitted with 1.1m of supply cable
� Finished in white
The wall-mounted low surface temperature PLSTi LST fan heaters are slim and contemporary. Being economical to run and splashproof, they make the perfect choice where space-saving and efficiency with style are paramount.
Ideal for nurseries, hospitals and retirement homes, these low surface temperature, thermostatically controlled fan heaters provide a high level of safety, controllability and style.
0.5kW, 0.75kW, 1kW or 1.5kW rating.
Compatible with any Consort wireless controller.
Maximum surface temperature of 43�C to comply with NHS Estates Health Guidelines Notes.
Safety monitoring: In the unlikely event of a fault, the safety monitoring will help prevent high surface temperatures and the light on the heater will flash indicating the nature of the fault.
Intelligent Fan Control: The fan speed of the heater automatically adjusts relative to the room�s temperature and heat output in order to achieve a warm control. This prevents the heater from blowing cold air.
Operates on a very low noise level.
Incorporates EC motor for improved energy efficiency.
Strengthened grille to increase durability.
LED indicator light.
Slimline design.
Automatic safety cut-out.
Splash proof to IP24 for use in bathrooms and other damp areas.
Hinged wall mounting system for easy installation and decorating.
Finished in white.
All wireless controllers are to be purchased separately.
The Consort PLSTiE low surface temperature wall mounted fan heaters are very slim and contemporary in design.
Features open window detection which recognises a sudden temperature drop when a window is opened and turns
the heating off to save energy. Once the window is closed, the temperature change triggers the heating to resume its
normal operation. The intelligent fan control optimises fan speed and heat output to quickly achieve and control a
comfort temperature whilst maintaining a very low noise level.
These heaters are designed with a maximum surface temperature of 43�C, complying with NHS Estates Health
Guidance Notes, to minimise the risk of burn injuries. Being extremely economical to run and splash proof, they make
the perfect choice where space saving, style and efficiency are paramount. Ideal for nurseries, hospitals and
retirement homes, these fan heaters provide a high level of safety and controllability.
� Available in 0.5kW, 0.75kW, 1kW and 1.5kW
� Safety monitoring: In the unlikely event of a fault, the safety
monitoring will help prevent high surface temperatures and
the light on the heater will flash indicating the nature of the
fault.
� Intelligent fan control: The fan speed of the heater
automatically adjusts relative to the room�s temperature and
heat output in order to achieve a warm airflow. This prevents
the heater from blowing cold air.
� Incorporates EC motor for improved energy efficiency
� Maximum surface temperature of 43�C to comply with NHS
Estates Health Guidelines Notes
� 7-day timer with electronic thermostat
� 6 heating periods per day
� Battery backup for real-time clock
� Quiet operation
� Open window detection
� Copy day function
� Concealed digital controls
� 4 operating modes: Programme, Boost, Setback & Manual
� 15-minutes Boost feature
� Comfort heat setting between 15�C to 35�C
� Setback temperatures can be used for frost protection or
maintaining a minimum room temperature between 4�C to
15�C
� Automatic safety cut-out
� Can set temperatures in degrees Celsius or Fahrenheit
� Maintains temperature within 0.7 degrees
� Easy-to-read display
� Easy operation
� 4 large control buttons with tactile feedback
� Electronic child lock to prevent tampering with controls
� Optional control panel locking kit (PLK1)
� Slimline and clean design
� Splash proof to IP24 for use in bathrooms and other
damp areas
� Hinged wall mounting system for easy installation and
decorating
� Fitted with 1.1m of supply cable
� Finished in white
The Consort PLSTiE low surface temperature wall mounted fan heaters are very slim and contemporary in design.
Features open window detection which recognises a sudden temperature drop when a window is opened and turns
the heating off to save energy. Once the window is closed, the temperature change triggers the heating to resume its
normal operation. The intelligent fan control optimises fan speed and heat output to quickly achieve and control a
comfort temperature whilst maintaining a very low noise level.
These heaters are designed with a maximum surface temperature of 43�C, complying with NHS Estates Health
Guidance Notes, to minimise the risk of burn injuries. Being extremely economical to run and splash proof, they make
the perfect choice where space saving, style and efficiency are paramount. Ideal for nurseries, hospitals and
retirement homes, these fan heaters provide a high level of safety and controllability.
� Available in 0.5kW, 0.75kW, 1kW and 1.5kW
� Safety monitoring: In the unlikely event of a fault, the safety
monitoring will help prevent high surface temperatures and
the light on the heater will flash indicating the nature of the
fault.
� Intelligent fan control: The fan speed of the heater
automatically adjusts relative to the room�s temperature and
heat output in order to achieve a warm airflow. This prevents
the heater from blowing cold air.
� Incorporates EC motor for improved energy efficiency
� Maximum surface temperature of 43�C to comply with NHS
Estates Health Guidelines Notes
� 7-day timer with electronic thermostat
� 6 heating periods per day
� Battery backup for real-time clock
� Quiet operation
� Open window detection
� Copy day function
� Concealed digital controls
� 4 operating modes: Programme, Boost, Setback & Manual
� 15-minutes Boost feature
� Comfort heat setting between 15�C to 35�C
� Setback temperatures can be used for frost protection or
maintaining a minimum room temperature between 4�C to
15�C
� Automatic safety cut-out
� Can set temperatures in degrees Celsius or Fahrenheit
� Maintains temperature within 0.7 degrees
� Easy-to-read display
� Easy operation
� 4 large control buttons with tactile feedback
� Electronic child lock to prevent tampering with controls
� Optional control panel locking kit (PLK1)
� Slimline and clean design
� Splash proof to IP24 for use in bathrooms and other
damp areas
� Hinged wall mounting system for easy installation and
decorating
� Fitted with 1.1m of supply cable
� Finished in white
The wall-mounted low surface temperature PLSTi LST fan heaters are slim and contemporary. Being economical to run and splashproof, they make the perfect choice where space-saving and efficiency with style are paramount.
Ideal for nurseries, hospitals and retirement homes, these low surface temperature, thermostatically controlled fan heaters provide a high level of safety, controllability and style.
0.5kW, 0.75kW, 1kW or 1.5kW rating.
Compatible with any Consort wireless controller.
Maximum surface temperature of 43�C to comply with NHS Estates Health Guidelines Notes.
Safety monitoring: In the unlikely event of a fault, the safety monitoring will help prevent high surface temperatures and the light on the heater will flash indicating the nature of the fault.
Intelligent Fan Control: The fan speed of the heater automatically adjusts relative to the room�s temperature and heat output in order to achieve a warm control. This prevents the heater from blowing cold air.
Operates on a very low noise level.
Incorporates EC motor for improved energy efficiency.
Strengthened grille to increase durability.
LED indicator light.
Slimline design.
Automatic safety cut-out.
Splash proof to IP24 for use in bathrooms and other damp areas.
Hinged wall mounting system for easy installation and decorating.
Finished in white.
All wireless controllers are to be purchased separately.
