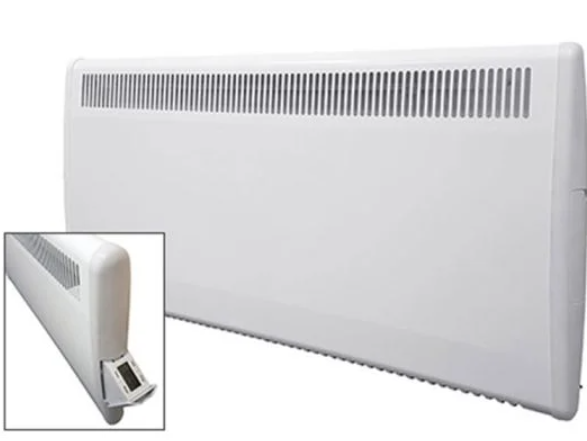

Consort Heater with electronic 7-day timer 2kW Panel Heater PLE200
_PLE panel heater with 7 day timer and electronic thermostat
_Open window detection with electronic child lock
_Automatic safety cut-out
_Fitted with 1.8m of supply cable
_With a 1 year guarantee
Consort 2kW Plinth Heater PHSL2BL
_Fan only setting for air circulation in warm weather
_Compatible with advanced single zone controllers and run-back time controllers
_LED indicator light with automatic safety cut-out and fitted 2.2m of supply cable
_Minimum kick space height of only 100mm
_With a 1 year guarantee
Consort 2kW Plinth Heater PHSL2W
_Fan only setting for air circulation in warm weather
_Compatible with advanced single zone controllers and run-back time controllers
_LED indicator light with automatic safety cut-out and fitted 2.2m of supply cable
_Minimum kick space height of only 100mm
_With a 1 year guarantee
Consort 3kW Plinth Heater PHSL3BL
_Fan only setting for air circulation in warm weather
_compatible with advanced single zone controllers and run-back time controllers
_LED indicator light with automatic safety cut-out and fitted 2.2m of supply cable
_Minimum kick space height of only 100mm
_With a 1 year guarantee
Consort 3kW Plinth Heater PHSL3S
_Fan only setting for air circulation in warm weather
_compatible with advanced single zone controllers and run-back time controllers
_LED indicator light with automatic safety cut-out and fitted 2.2m of supply cable
_Minimum kick space height of only 100mm
_With a 1 year guarantee
Consort 3kW Plinth Heater PHSL3W
_Fan only setting for air circulation in warm weather
_compatible with advanced single zone controllers and run-back time controllers
_LED indicator light with automatic safety cut-out and fitted 2.2m of supply cable
_Minimum kick space height of only 100mm
_With a 1 year guarantee
Consort 2kW Fan Heater 2kW CSL2MLST
_Available with mesh grille to prevent objects being dropped into the heater
_Maximum surface temperature of 43 degree C to comply with NHS estates health guidance notes
_LED indicator light with automatic safety cut-out
_Quiet operation
_With a 1 year guarantee
Consort Sunzone Radiant Heater 2kW HE6502SL
_Highly efficient sunzone radiant heater and 100mm clearance from adjacent wall or ceiling required
_Compatible with advanced single zone controllers and run-back time controllers
_Directional radiant heat
_Supplied with 1m of high temperature cable
_With a 1 year guarantee
Consort Quartz Halogen 1.5kW Radiant Heater HE7915
_Quartzzone halogen radiant heater ideal for high level use
_Fitted guard with angular and directional fixing bracket included
_Instant heat
_Suitable for wall or ceiling mounting
_With a 1 year guarantee
Consort Weatherproof 3kW Quartz Heater QZWP30N
_These heater are IP55 rated making them totally weatherproof
_Fitted with 2.8m of supply cable and fitted guard included
_Can be wall or overhead mounted
_Lamp life of 5000 hours
_With a 1 year guarantee
Consort Claudgen SLREC Receiver Unit Wireless Control Conversion
_Can control a load up to 3kW
_Maximum switching current 13A/250V
_Can be retrofitted to existing compatible heaters
_Each heater must be connected to an SLREC for it to be controlled by a CRXSL or SL controller
_With a 1 year guarantee
Consort Recessed Ceiling Fan Heater 3kW Wireless Controlled HE7230RX
_Compatible with advanced single zone controllers
_LED indicator light with automatic safety cut-out
_Fan only setting for air circulation
_3kW Rating
_With a 1 year guarantee

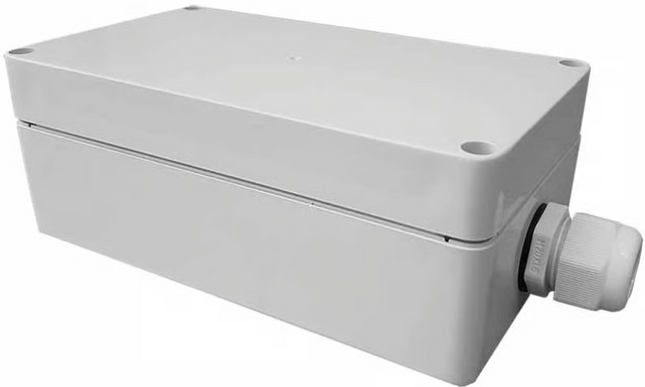

Consort Claudgen�s RXREC is a receiver unit that enables certain heaters controlled by a remote switch to be
wirelessly controlled by a CRXSL controller*. With RXREC installed, a CRXSL controller replaces the existing remote
switch, expanding the heating control options to include temperature and time control. Additionally, the Time/Manual
mode in a CRXSL controller takes advantage of the RXREC long range performance to allow heaters to be controlled
from a different room.
� Can be retrofitted to existing compatible Claudgen
products (see RXREC matching products list)
� Each heater must be connected to an RXREC for it
to be controlled by a CRXSL
� Multiple heaters can be controlled by a CRXSL
� Long range performance dependent on building
construction
� Dimensions (mm):- H:90 D:61 W:158
* Requires a separately purchased CRXSL controller.

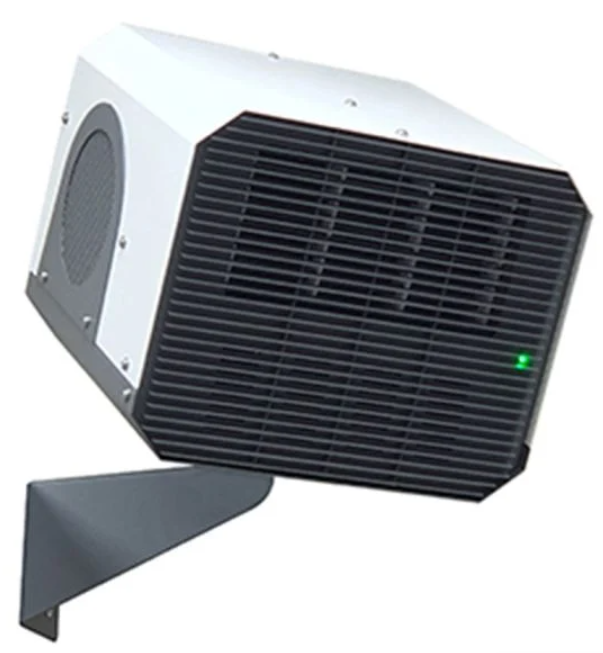

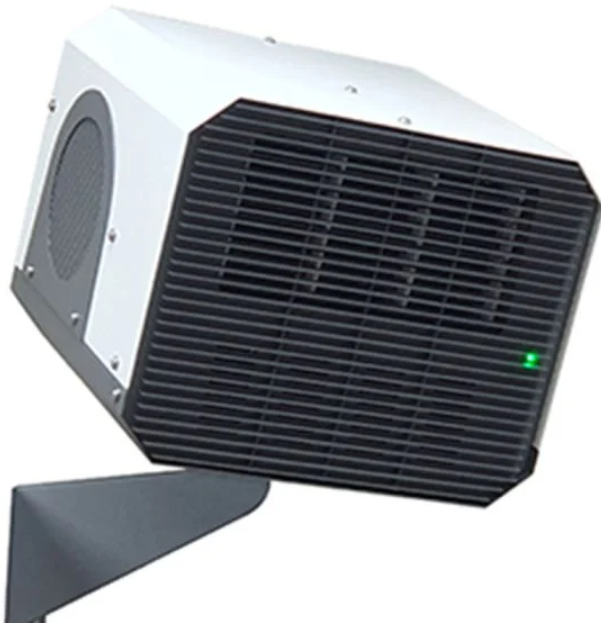

Our commercial fan heaters provide a �heat throw� of 11m at maximum fan speed. The intelligent fan control optimises fan speed and heat output to quickly achieve and control a comfort temperature whilst maintaining a very low noise level. Provides comfort heating while working in garages, workshops and warehouses. A great solution for commercial applications!
6kW, 9kW or 12kW rating.
Requires a separately purchased CHMC, HRXSL, CRXSL or CRXSLWIFI controller.
Single or 3 phase supply models.
Sensor to detect the room temperature.
Intelligent Fan Control feature: The fan speed of the heater automatically adjusts relative to the room�s temperature and heat output in order to achieve a warm inflow. This prevents the heater from blowing cold air.
Incorporates EC motor for improved energy efficiency.
Electronic fault monitoring.
Safety monitoring feature: The light on the heater will flash indicating the nature of the fault.
One CRXSL controller can operate multiple heaters in single zone configuration.
One CHMC controller can operate a maximum of 8 heaters with individual control.
Time/Manual mode in CRXSL controller:
� Allows fan and heat settings to be adjusted manually
� Allows set time schedule for fan and heat settings

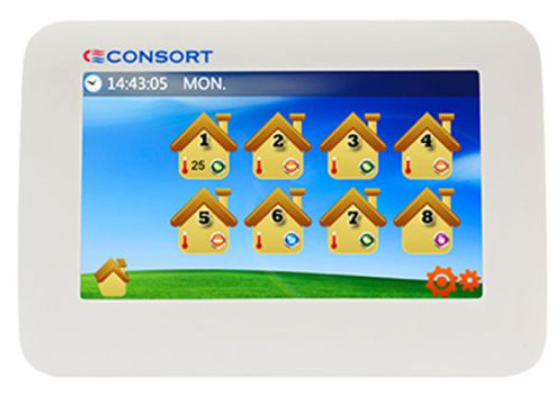

CRXSL controller is compatible with separately purchased MRX1 Multizone controller for �zoning� of the heating system.
Option to select room temperature measurement on HRXSL or heaters.
Instant directional warmth.
3 fan speeds, 3 heat settings with CRXSL (in Manual mode).
8 fan speeds, 8 heat settings with CHMC (in Manual mode).
Fan only setting for air circulation.
Wall mounted with multi-directional brackets supplied (180� horizontal, 45� vertical).
Maximum heat throw � 11 metres at full speed.
Finished in white/grey.

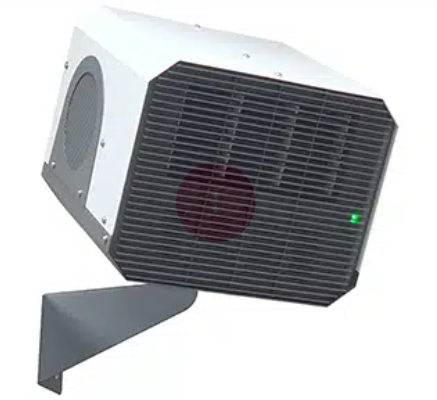

Our commercial fan heaters provide a �heat throw� of 11m at maximum fan speed. The intelligent fan control optimises fan speed and heat output to quickly achieve and control a comfort temperature whilst maintaining a very low noise level. Provides comfort heating while working in garages, workshops and warehouses. A great solution for commercial applications!
6kW, 9kW or 12kW rating.
Requires a separately purchased CHMC, HRXSL, CRXSL or CRXSLWIFI controller.
Single or 3 phase supply models.
Sensor to detect the room temperature.
Intelligent Fan Control feature: The fan speed of the heater automatically adjusts relative to the room�s temperature and heat output in order to achieve a warm inflow. This prevents the heater from blowing cold air.
Incorporates EC motor for improved energy efficiency.
Electronic fault monitoring.
Safety monitoring feature: The light on the heater will flash indicating the nature of the fault.
One CRXSL controller can operate multiple heaters in single zone configuration.
One CHMC controller can operate a maximum of 8 heaters with individual control.
Time/Manual mode in CRXSL controller:
� Allows fan and heat settings to be adjusted manually
� Allows set time schedule for fan and heat settings
CRXSL controller is compatible with separately purchased MRX1 Multizone controller for �zoning� of the heating system.
Option to select room temperature measurement on HRXSL or heaters.
Instant directional warmth.
3 fan speeds, 3 heat settings with CRXSL (in Manual mode).
8 fan speeds, 8 heat settings with CHMC (in Manual mode).
Fan only setting for air circulation.
Wall mounted with multi-directional brackets supplied (180� horizontal, 45� vertical).
Maximum heat throw � 11 metres at full speed.
Finished in white/grey.
Our commercial fan heaters provide a �heat throw� of 11m at maximum fan speed. The intelligent fan control optimises fan speed and heat output to quickly achieve and control a comfort temperature whilst maintaining a very low noise level. Provides comfort heating while working in garages, workshops and warehouses. A great solution for commercial applications!
6kW, 9kW or 12kW rating.
Requires a separately purchased CHMC, HRXSL, CRXSL or CRXSLWIFI controller.
Single or 3 phase supply models.
Sensor to detect the room temperature.
Intelligent Fan Control feature: The fan speed of the heater automatically adjusts relative to the room�s temperature and heat output in order to achieve a warm inflow. This prevents the heater from blowing cold air.
Incorporates EC motor for improved energy efficiency.
Electronic fault monitoring.
Safety monitoring feature: The light on the heater will flash indicating the nature of the fault.
One CRXSL controller can operate multiple heaters in single zone configuration.
One CHMC controller can operate a maximum of 8 heaters with individual control.
Time/Manual mode in CRXSL controller:
� Allows fan and heat settings to be adjusted manually
� Allows set time schedule for fan and heat settings
CRXSL controller is compatible with separately purchased MRX1 Multizone controller for �zoning� of the heating system.
Option to select room temperature measurement on HRXSL or heaters.
Instant directional warmth.
3 fan speeds, 3 heat settings with CRXSL (in Manual mode).
8 fan speeds, 8 heat settings with CHMC (in Manual mode).
Fan only setting for air circulation.
Wall mounted with multi-directional brackets supplied (180� horizontal, 45� vertical).
Maximum heat throw � 11 metres at full speed.
Finished in white/grey.
CSL2SC Convector Heater
The CSL2SC convector heater is designed to reduce the temperature rise above the heater allowing it to be installed beneath cable trunking.
2kW rating.
Compatible with any Consort wireless controller.
One controller can operate multiple SL heaters.
Virtually noiseless operation.
Can be mounted 300mm or more below cable trunking.
Full length wall bracket for ease of installation.
Automatic safety cut-out.
LED indicator light.
Finished in white.
Note: All wireless controllers are to be purchased separately.
The CSL2SR convector heater offers the added benefit of reducing the risk of wall discolouration and delamination through the provision of a built in heat deflector.
2kW rating.
Compatible with any Consort wireless controller.
One controller can operate multiple SL heaters.
Virtually noiseless operation.
Reduced risk of wall staining and delamination.
Full length wall bracket for ease of installation.
Automatic safety cut out.
LED indicator light.
Finished in white.
Note: All wireless controllers are to be purchased separately.

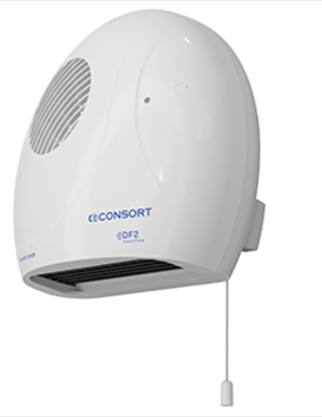

The new Consort DF2 Heatflow is a downflow fan heater with pull cord operation. It provides rapid warmth and an adjustable heat output (1kW or 2kW) at installation. Once activated, the heater operates on a pre-set period of 30 minutes or can be deactivated before the energy saving timer expires by pulling the pull cord again.
Up to 2kW heat output for fast heating
Pull cord operation
30 minute energy saving timer
Enhanced safety with 3 levels of overheat protection
Double insulated class II appliance
LED indicator light
Supply voltage: 230V-240V, 50Hz
Finished in white
The electronic touchscreen controller provides easy usability and simple installation. It can control up to 8 heaters and allows connection to Consort Connect app where the app provides full functionality to CHMC remotely. The controller also displays the temperature and fan speed for connected heaters.
Can control up to 8 heaters as a group or individually.
Can be located in different room to heaters.
Temperature sensor.
8 fan speeds, 8 heat settings in Manual mode.
2 operating modes: Manual and Temperature Control
7-day timer with 2 heating periods per day.
Easy to use interface and easy to set up.
Fan only setting for air circulation.
Wi-Fi enabled for connection to Consort Connect app
� App provides full functionality of CHMC remotely.
Compatible with Building Management Systems.
Displays individual and total energy usage of heaters.
Electronic lock.
CHMC controller is optional for use with Commercial Fan Heaters.
Commercial Heater Environmental Sensor (CHES) � Optional indoor sensor
Compatible with CHMC controller
Occupancy sensor
Temperature sensor
Remote switch connection for BMS, ON/OFF function or Boost
ches indoor sensor
Top 5 Benefits
The electronic lock on CHMC prevents unwanted tweaking of temperature settings reducing energy wastage.
As room temperature can be sensed at either CHMC, CHES or CH heaters, accurate temperature control can maintain heat levels with minimal energy waste.
With CHES occupancy sensor, the heater will conserve energy when it detects no movement within a given range.
Wi-Fi enabled for connection to Consort Connect app
� App provides full functionality of CHMC remotely
Displays individual and total energy usage of heaters.

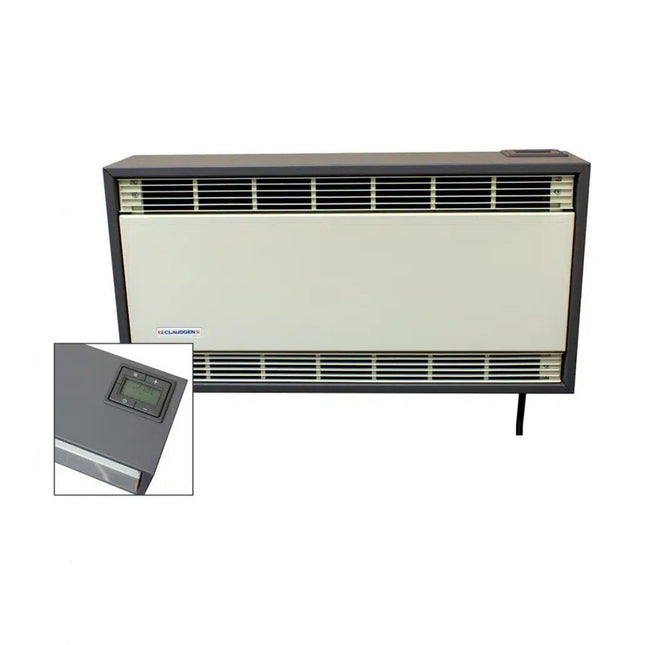

HE6137E 3kW Wall-Mounted Fan Heater With Electronic 7-Day Timer
Compact and a robust design make these heaters the perfect choice where space is limited. Suitable for a wide range of commercial and domestic applications.
3kW rating
7-day timer, 6 heating periods per day
Cell battery to backup real time clock
Quiet operation
Open window detection
Copy day function
Digital controls with easy-to-read display
4 operating modes: Programme, Boost, Setback & Manual
15-minutes Boost feature
Comfort heat setting between 15�C to 35�C
Setback temperatures can be used for frost protection or maintaining a minimum room temperature between 4�C to 15�C
Safety monitoring feature: The heater will detect and show the nature of the fault on the display screen
Automatic safety cut-out
Frost protection setting
Can set temperatures in degrees Celsius or Fahrenheit
Maintains temperature within 0.7 degrees
Easy operation
4 large control buttons with tactile feedback
Electronic child lock
Robust construction
Fitted with 1.8m of supply cable
Finished in barley white and grey surround
Ideal as an emergency stand-in heater for nurseries, hospitals and retirement homes, this Low Surface Temperature, thermostatically controlled, quiet fan heater provides both a high level of safety and controllability.
1kW rating with on/off switch
Maximum surface temperature of 43�C complies with NHS Estates Health Guidance Notes
Fan only setting for air circulation
Variable thermostat with frost protection setting
Free standing with feet supplied
Tilt switch turns the heater off if it is knocked over
Quiet operation
Mesh grille to prevent objects from being dropped into the heater
Screw lockable control access panel
Automatic safety cut-out
Fitted cable with plug
Finished in white
The CN2MLSTiE fan heaters are designed with a maximum surface temperature of 43�C, complying with NHS Estates Health Guidance Notes, to minimise the risk of burn injuries. Ideal for nurseries, hospitals and retirement homes, these fan heaters provide a high level of safety and controllability.
2kW rating
7-day timer, 6 heating periods per day
Cell battery to backup real time clock
Incorporates EC motor for improved energy efficiency
Quiet operation
Copy day function
Digital controls with easy-to-read display
4 large control buttons with tactile feedback
4 Operating modes: Programme, Boost, Setback & Manual
15-minute Boost feature
Comfort heat setting between 15�C to 35�C
Setback temperatures can be used for frost protection or maintaining a minimum room temperature between 4�C to 15�C
Automatic safety cut-out
Can set temperatures in degrees Celsius or Fahrenheit
Maintains temperature within 0.7 degrees
Electronic child lock
Mesh grille to prevent objects from being dropped into the heater
LED light indicator
Finished in white
Open Window Detection
Features open window detection which recognises a sudden temperature drop when a window is opened and turns the heating off to save energy. Once the window is closed, the temperature change triggers the heating to resume its normal operation.
Safety Monitoring
In the unlikely event of a fault, the safety monitoring will help prevent high surface temperatures and the light on the heater will flash indicating the nature of the fault.
Intelligent Fan Control
The fan speed of the heater automatically adjusts relative to the room�s temperature and heat output in order to achieve a warm control. This prevents the heater from blowing cold air.
PLE Panel Heaters With Electronic 7-Day Timer
The digital control panel has an easy-to-read display and four large control buttons with tactile feedback. They are easy to operate and have an electronic lock to prevent control tampering. An optional open window detection feature recognises a temperature drop when a window is opened, this smart function automatically turns the heater off to save energy. As soon as the window closes, the heater promptly resumes its warming function.
The heaters have tough grilles for extra durability. They also come with a snap-on bracket for easy mounting and removal, which is perfect for cleaning and decorating. Ideal for use in hotels, offices, or home spaces like bedrooms, kitchens, bathrooms, and laundries.
0.5kW, 0.75kW, 1kW, 1.25kW, 1.5kW or 2kW rating
7-day timer with electronic thermostat
6 heating periods per day
Cell battery to backup real time clock
Very quiet operation
Open window detection
Copy day function
Concealed digital controls
4 operating modes: Programme, Boost, Setback & Manual
15-minutes Boost feature
Comfort heat setting between 15�C to 35�C
Setback temperatures can be used for frost protection or maintaining a minimum room temperature between 4�C to 15�C
Automatic safety cut-out
Can set temperatures in degrees Celsius or Fahrenheit
Maintains temperature within 0.7 degrees
Easy-to-read display
Easy operation
4 large control buttons with tactile feedback
Electronic child lock
Optional control panel locking kit (PLK1)
Slimline and clean design
Splash proof to IP24 for use in bathrooms and other damp areas
Hinged wall mounting system for easy installation and decorating
Fitted with 1.1m of supply cable
Finished in white or stainless steel (stainless steel is only available for 2kW model)
These high level fan heaters are perfect for shops, offices and restaurants, indeed anywhere requiring discreet background heat. They are quiet, economical in use and unobtrusive once installed.
3kW rating
All RX and SL heaters are compatible with advanced single zone controllers*
SL controllers** are compatible with SL heaters only
Quiet operation
Safety monitoring feature: The light on the heater will flash indicating the nature of the fault.
Automatic safety cut-out
Fan only setting for air circulation (for RX model)
LED indicator light
Bracket supplied for angular adjustment of heat flow
Maximum mounting height is 2.3m
Finished in white
* Advanced single zone controllers: CRXSL, CRXSLWIFI, HRXSL and LC wireless controllers
** SL controllers: SLPBWIFI, SLPB, SLVT, SLVTB and SLPBWP wireless controllers
All wireless controllers are to be purchased separately.
Battery-powered (includes 2 �AA� batteries)
Compatible with all RX and SL heaters
Option to select room temperature measurement on HRXSL or compatible heaters
Quick and simple pairing to heaters
Open window detection
Stylish and sleek modern design
Large backlit LCD display for easy reading
Supplied with security wall bracket
Simple to set up and easy to programme
4 different operating modes:
� Automatic
� Manual temperature control
� Boost
� Frost protection
15-minutes Boost feature providing maximum comfort quickly with temperature control
Time/Manual mode is available with compatible heaters
Fan only mode for compatible heaters
Electronic child lock
Option to limit min/max temperature
Not compatible with MRX1 controller
6 temperature settings per day
7-day heating programmes per week
Half heat when approaching target temperature for compatible heaters
Maintains temperature within 0.5�C
Set temperature in 0.5�C increments
Consort Claudgen�s LC Landlord Control Heating System is an ideal heating system for student accommodation, hotels, or anywhere where a central control unit is required to control the temperature of all heaters in a building or rooms. It consists of an MLC controller and one or more LC controllers connected to Consort�s RX or SL heaters.
Room occupants can temporarily adjust the room temperature on the LC for a predetermined length of time before the LC reverts to the programmed temperature.
Mains or battery powered
Compatible with all RX and SL heaters
Open window detection
Allows user to temporarily increase or decrease the room temperature
Can control multiple heaters in a room
Large backlit LCD display for easy reading
Can be used as signal repeaters to extend the signal range.
An LC set as a repeater must be mains powered.
Stylish and sleek modern design
LSTE panel heaters feature an electronic timer which offers a 7-day programme with 6 heating periods per day. The digital control panel has an easy-to-read display and four large control buttons with audible and tactile feedback. Easy to operate and designed with an electronic lock to prevent tampering with controls.
Features open window detection which recognizes a sudden temperature drop when a window is opened and turns the heating off to save energy. Once the window is closed, the temperature change triggers the heating to resume its normal operation.
These slimline heaters are designed with a maximum surface temperature of 43�C, complying with NHS Estates Health Guidance Notes, to minimise the risk of burn injuries. They are perfect for environments with vulnerable people such as children and elderly residents; and therefore ideal for schools, nurseries, retirement homes, hospitals and anywhere where safety is paramount.
0.5kW or 0.8kW rating.
Maximum surface temperature of 43�C to comply with NHS Estates Health Guidance Notes.
7-day timer with electronic thermostat.
6 heating periods per day.
Cell battery to backup real time clock
Very quiet operation.
Open window detection.
Copy day function.
Concealed digital controls.
4 operating modes: Programme, Boost, Setback & Manual.
15-minutes Boost feature.
Comfort heat setting between 15�C to 35�C.
Setback temperatures can be used for frost protection or maintaining a minimum room temperature between 4�C to 15�C.
Automatic safety cut-out.
Can set temperatures in degrees Celsius or Fahrenheit.
Maintains temperature within 0.7 degrees.
Easy-to-read display.
Easy operation.
4 large control buttons with tactile feedback.
Electronic lock.
Optional control panel locking kit (PLK1).
Slimline and clean design.
Splash proof to IP24 for use in bathrooms and other damp areas.
Hinged wall mounting system for easy installation and decorating.
Fitted with 1.1m of supply cable.
Finished in white.
Consort Claudgen�s LC Landlord Control Heating System is an ideal heating system for student accommodation, hotels, or anywhere where a central control unit is required to control the temperature of all heaters in a building or rooms. It consists of an MLC controller and one or more LC controllers connected to Consort�s RX or SL heaters.
The MLC can control any number of LC depending on the building construction. It sets the same 7-day programme with 6 time settings per day for all LC controllers.
Mains powered
Controls an unlimited* number of LC controllers
Sets the same 7-day programme and time for all LC controllers
2 operating modes:
� 7-day programme
� When the temperature on LC controller is adjusted, the new temperature is maintained until the next programme overrides it.
� Constant temperature
� When the temperature on LC controller is adjusted, the new temperature is maintained for the landlord set period of up to 4 hours. It then reverts to the fixed temperature.
Simple to set up and easy to programme
Large backlit LCD display for easy reading
Stylish and sleek modern design
Option to limit min/max temperature
Temperature display of either degrees Celsius or Fahrenheit
* Only limited by building construction.
6 temperature settings per day
7-day heating programmes per week
Half heat when approaching target temperature **
Maintains temperature within 0.5�C
Set temperature in 0.5 degrees increments
Reduced power consumption in standby mode
** Half heat feature does not apply to 0.5kW and 0.8kW heaters.
The MRX1 Multizone wireless controller is a central control unit that can separately control up to 8 heating zones using the existing CRXSL controllers. Each CRXSL can control multiple Consort RX and/or SL heaters in the same room or zone. The MRX1 controller has a large touchscreen LCD colour display. A 7-day programme with 6 time periods per day can be set separately for each zone and if required, be duplicated across other zones. Temperature adjustments for all zones can also be done simultaneously.
Mains powered
Central control unit for a maximum of 8 heating zones
The MRX1 allows you to change the zone programme individually or as a group
Group Control feature allows setting a preferred operating mode and temperature in all heating zones simultaneously
Compatible with CRXSL and electronic 7-day timer heaters with RF receiver
4 different operating modes: Boost, Manual, Set back (Economy) & Program
15-minutes Boost feature providing maximum comfort quickly with temperature control
Simple to set up and easy to programme
Touchscreen control
Large backlit LCD colour display for easy reading
Stylish and sleek modern design
Option to limit min/max temperature
Individual zone programme can be changed from MRX1, CRXSL or electronic 7-day timer heaters with RF receiver
Temperature display of either degrees Celsius or Fahrenheit
6 temperature settings per day
7-day heating programmes per week
Half heat when approaching target temperature *
Maintains temperature within 0.5�C
Set temperature in 0.5 degrees increments
Reduced power consumption in standby mode
* Half heat feature does not apply to 0.5kW and 0.8kW heaters.
Consort Pack of 3 Towel Rail Brackets in White 18500487Suitable for the following Towel Rails:TRF30TRJ40TRJ60TRJ80This product is White - Internal dimension of holder 25mm.Supplied with two screws which are fitted on opposite corners of the bracket. This new bracket replaces the original design of two screws on one side of the bracket.
