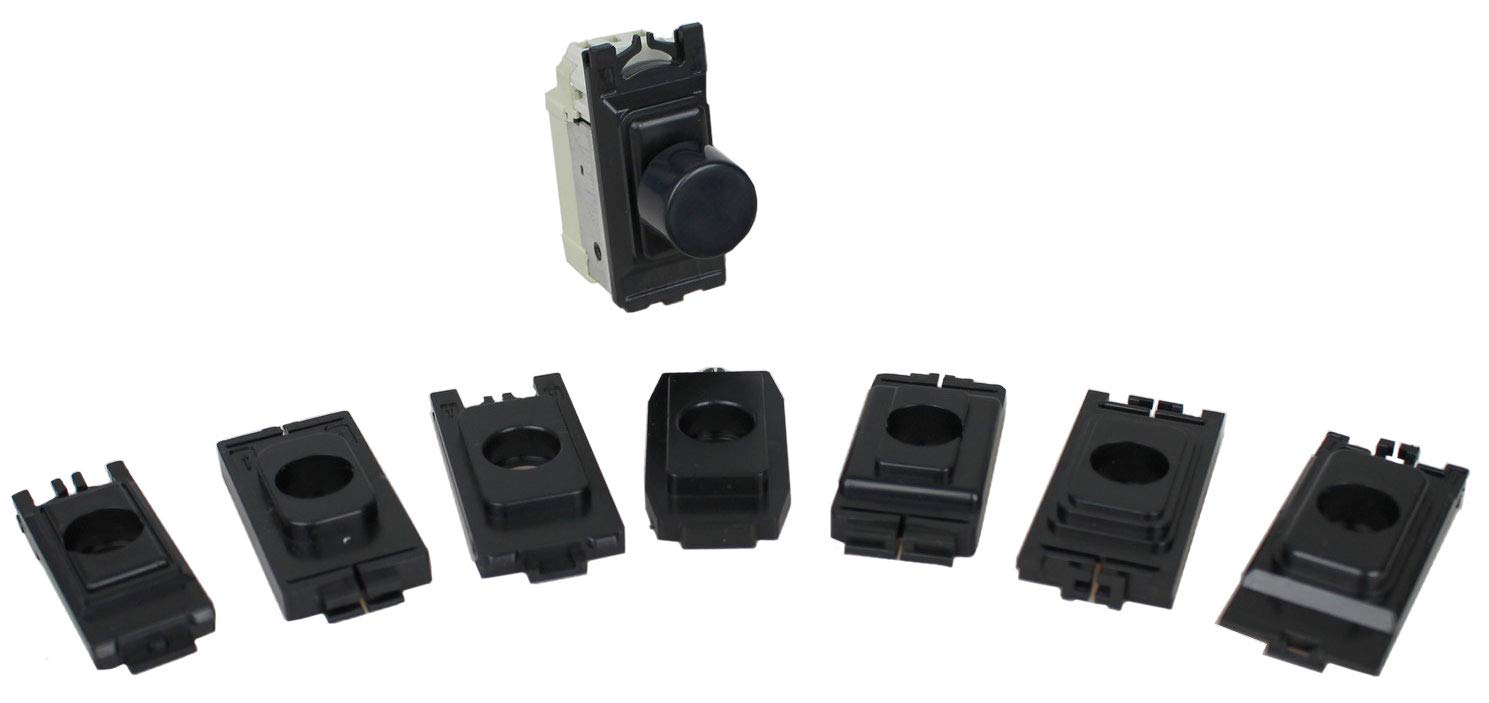

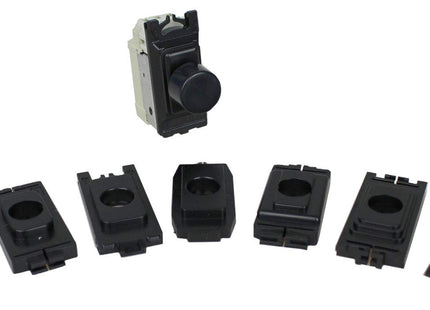

Varilight V-Pro Series Black 0-300W High Power Trailing Edge LED Power Grid Dimmer Module for MK, Schneider/GET, and Crabtree Power Grid Plates

Description

Range: MultiGrid Module

Finish: Black

: Modules for MK, GET, Crabtree Grids

Insert/Knob Colour: Black Insert

Barcode: 5021575004519

Dimensions: 54x26x50mm

Product Weight: 50g

Fixing Centres: N/A

Depth from Mounting Face:

Recommended Back Box Depth: 35mm

Operating Voltage: 220/250V AC

Maximum Load Rating: LED; 300W (Max. 20 Lamps)

Maximum Current Rating: 1.3A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm_

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm_

V-Pro intelligent dimming technology

Soft start feature and intelligent overload protection

Adjustable minimum brightness setting and choice of driving modes

Create your own switch combinations

Suitable for MK, GET Schnider and Crabtree Grid Plates

Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.

Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers, TRIAC dimmable loads or electric motors. Do not overload.

Applicable Safety Standard: BS EN 60669-2-1

Commodity Code: 85365007

_Max Load = 20 LEDs up to a total wattage of 300W / _Min Load = 0W - suitable for 1 - 20 dimmable LEDs _Not suitable for non-dimmable LED lamps _Suitable for MK, GET Schnider and Crabtree Grid Plates

Varilight V-Pro Series Black 0-300W High Power Trailing Edge LED Power Grid Dimmer Module for MK, Schneider/GET, and Crabtree Power Grid Plates
