The Varilight Screwless low profile collection offers minimalism with style and a flawless finish. The plate just clips on after installation. Each switch does need to be earthed and is designed to fit into UK standard wall boxes. Covered by the Varilight 10 year guaranty. Single plate size: 86mm x 86mm. Double plate size: 86mm x 147mm. 13A Plug sockets: Require a 35mm deep wall box. USBÕs are 2.1A. Rocker & Toggle Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 25mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 35mm wall box. 5 Amp Socket: Require a 35mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 35mm deep wall box. 13 Amp Double pole. TV Socket: Require a 25mm deep wall box. 20 Amp: Require a 25mm deep wall box. Fan Isolator: Require a 35mm deep wall box. 10A Fan Isolating Switch (3 Pole). DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 35mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 35mm deep wall box.

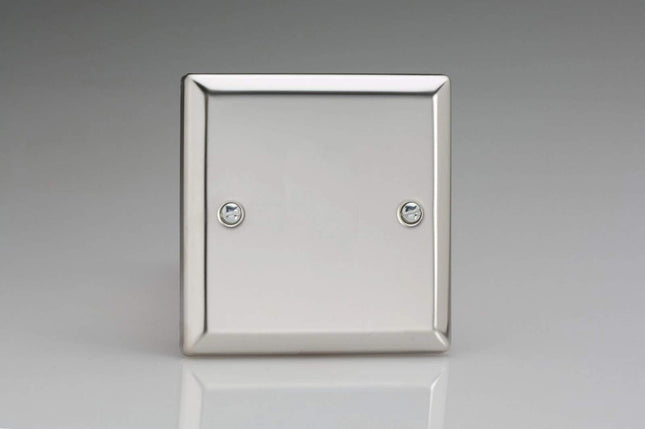

_Blank Plate
_Single Blank Plate
_Used to cover unused wall boxes
_Sleek, low-profile screwless faceplate
DataGrid Twin Plate (4 Grid Spaces)
_Available in 1, 2 and 4 gang data plates.
_DataGrid inserts must be ordered separately.
_Multiple finishes available.
_Manufacturer: Varilight
Varilight Datagrid plates allow you to create a multitude of data points that include CAT5E, HDMI, RJ45 and coaxial sockets to name just a few. Available in the popular screw less flat plate finish you can choose between a variety of grid plate sizes from 1 to 4 gang and large selection of finishes.
_Available in 1, 2 and 4 gang data plates.
_DataGrid inserts must be ordered separately.
_Multiple finishes available.
_Manufacturer: Varilight

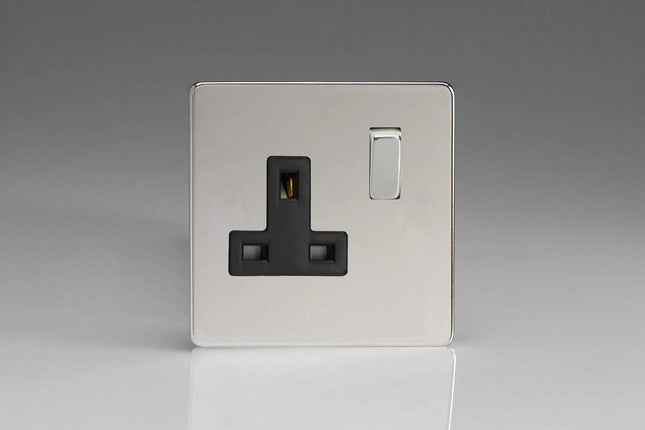

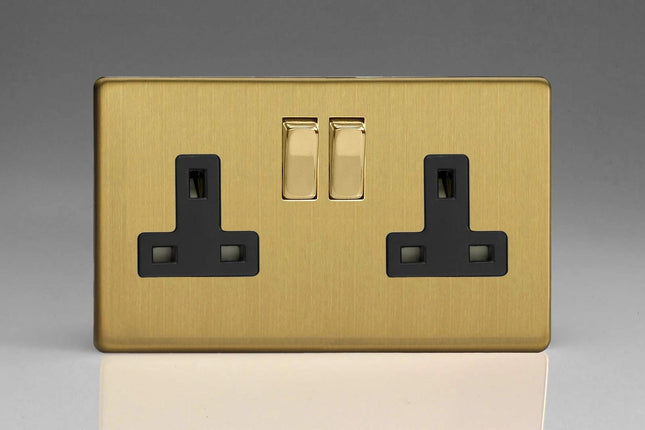

Varilight Dimension Screw less flat plate power sockets form part of a contemporary range of switches and sockets that is available in a choice of finishes. With many other matching accessories to choose from including the market leading V-Pro range of LED dimmer switches.
_Varilight switched screw less flat plate power socket 13 Amp, 1 or 2 gang
_Finishes: Many to choose from
_Double pole
_Rated at 13 Amp

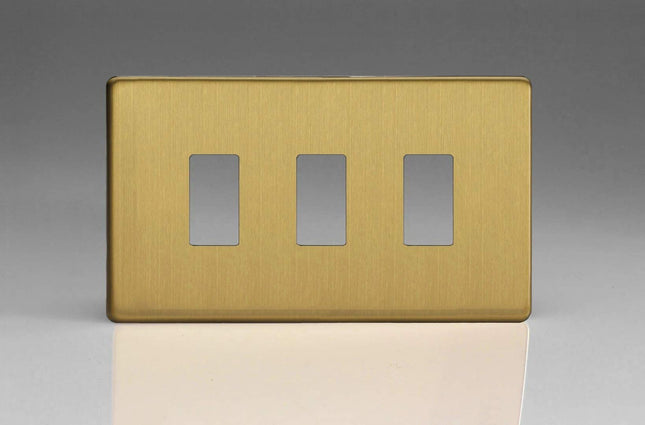

Varilight Power Grid plates allow you to create over 1 million different switching combinations to meet the demands of you project. Mix between conventional light switches, dimmer switches and double pole switches to get the exact results you need.
_Varilight Power Grid Plates (1-12 Gang)
_Extending flexibility and choice for the Varilight range
_Compliments existing Dimension accessories and Data Grid.
_Decorative rockers for a co-ordinated finish
The Varilight Screwless low profile collection offers minimalism with style and a flawless finish. The plate just clips on after installation. Each switch does need to be earthed and is designed to fit into UK standard wall boxes. Covered by the Varilight 10 year guaranty. Single plate size: 86mm x 86mm. Double plate size: 86mm x 147mm. 13A Plug sockets: Require a 35mm deep wall box. USBÕs are 2.1A. Rocker & Toggle Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 25mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 35mm wall box. 5 Amp Socket: Require a 35mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 35mm deep wall box. 13 Amp Double pole. TV Socket: Require a 25mm deep wall box. 20 Amp: Require a 25mm deep wall box. Fan Isolator: Require a 35mm deep wall box. 10A Fan Isolating Switch (3 Pole). DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 35mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 35mm deep wall box.
_Flex Outlet
_16A Flex Outlet Plate
_Can be used in a number of different environments for many applications
_Cable clamp
_Sleek, low-profile screwless faceplate

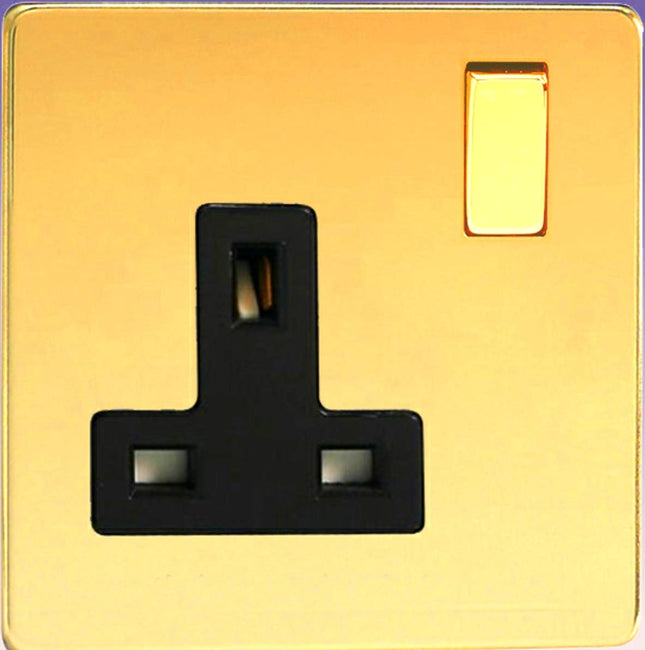

Varilight Dimension Screw less flat plate power sockets form part of a contemporary range of switches and sockets that is available in a choice of finishes. With many other matching accessories to choose from including the market leading V-Pro range of LED dimmer switches.
_Varilight switched screw less flat plate power socket 13 Amp, 1 or 2 gang
_Finishes: Many to choose from
_Double pole
_Rated at 13 Amp

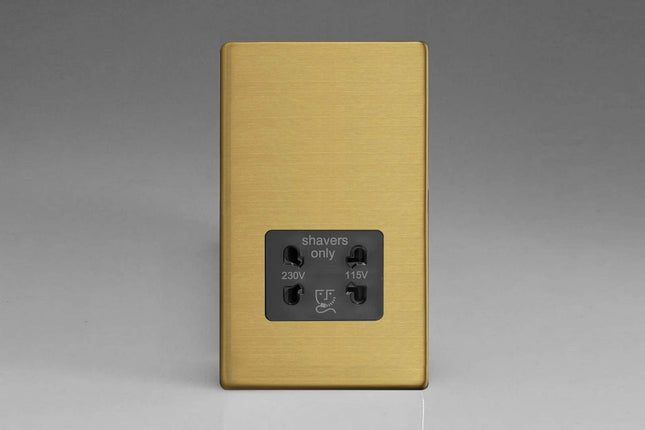

Varilight Dimension Screw less flat plate shaver socket has 230V and 115V inputs and is available in a choice of finishes and insert colours. With many other matching accessories to choose from including the market leading V-Pro range of LED dimmer switches.
_Varilight Dimension Screw less Flat Plate Dual Voltage Shaver Socket
_Finishes: Brushed Steel, Polished Chrome, Polished Brass, Brushed Brass, Iridium Black and Mocha.
_Manufacturer: Varilight

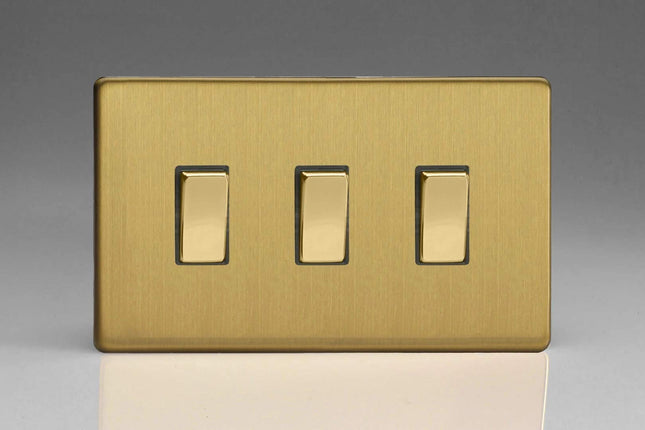

XDB93S
_2-Way Rocker Switch
_3-Gang 10A 1- or 2-Way Rocker Switch (Twin Plate)
_1- or 2-way switching
_Suitable for controlling both mains and low voltage lighting
_Sleek, low-profile screwless faceplate
Varilight Dimension Screw less flat plate switched fused spurs are available in a choice of finishes and insert colours. With many other matching accessories to choose from including the market leading V-Pro range of LED dimmer switches.
_Varilight 13 Amp screw less flat plate switched fused spur
_Finishes: Brushed Steel, Brushed Brass, Polished Brass, Polished Chrome, Mocha, Iridium Black
_Manufacturer: Varilight
_Package Dimensions: 550.0 L x 550.0 H x 550.0 W (millimeters)

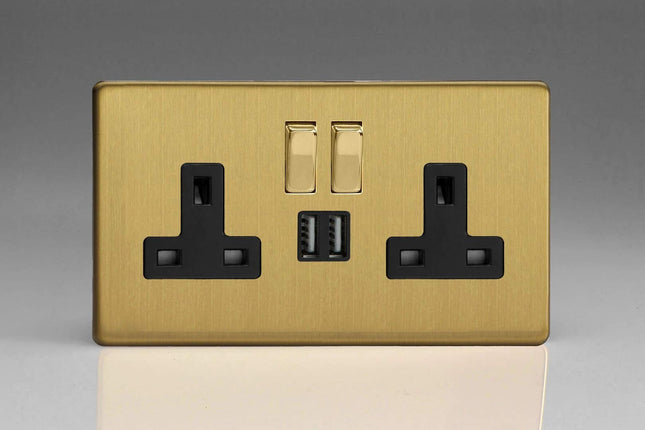

Varilight Dimension Screw less flat plate power sockets with USB charging outlets. Combines standard 13 amp power sockets with USB ports for charging iPhones and other USB powered electronic items.
_Finishes: Brushed steel, brushed brass, Polished Chrome, Polished Brass, Iridium Black, Mocha Brown, Premium Black and Premium White
_Insert colour matches the finish
_This is an un-switched socket as the USB chargers have taken the place of the switches
_Guarantee 1 year
Varilight Dimension Screw less flat plate power sockets form part of a contemporary range of switches and sockets that is available in a choice of finishes. With many other matching accessories to choose from including the market leading V-Pro range of LED dimmer switches.
_Varilight switched screw less flat plate power socket 13 Amp, 1 or 2 gang
_Finishes: Many to choose from
_Double pole
_Rated at 13 Amp

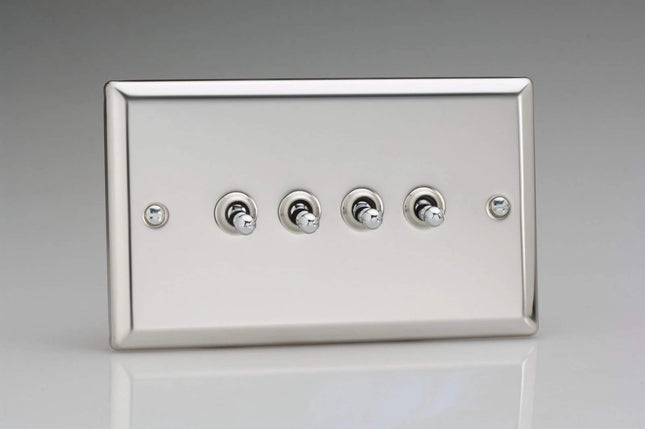

Varilight classic 4 gang 10 amps twin plate 1 or 2 way toggle switches with bevelled edge faceplate. Suitable for controlling both mains and low voltage lighting. Toggle switches is available in a finish options.
_Available in finish options: - Mirror Chrome - Iridium Black - Victorian Brass - Graphite
_Three insert colours options: - Chrome - Iridium - Brass
_4 Gang
_Range: Classic

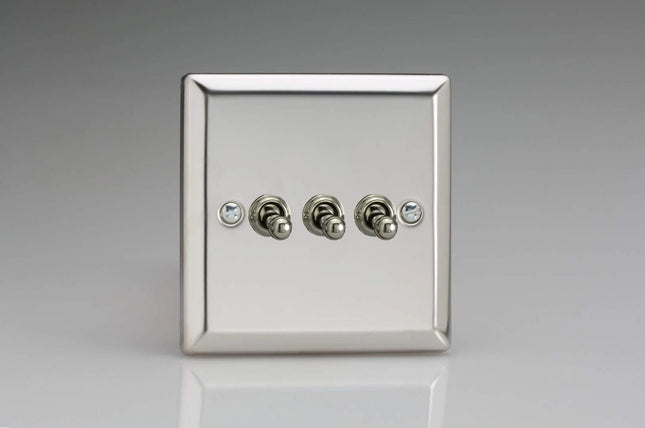

Varilight classic 10 amps 1 or 2 way toggle switches with bevelled edge faceplate. Suitable for controlling both mains and low voltage lighting. Toggle switches is available in a stylish finishes and gang options.
_Choose stylish finishes options: - Mirror Chrome - Iridium Black - Satin - Pewter Effect - Victorian Brass - Graphite 21
_Available in gang options: - 1-Gang - 2 Gang - 3 Gang
_Insert colour: Chrome
_Range: Classic
Dual Voltage Shaver Socket 240V/115V 240V/115V, Suitable for use in bathrooms, toilets and shower rooms (IP41), 240V accepts British and Continental round pin and Australia flat-pin, 240V accepts British and Continental round pin and Australia flat-pin.Dimensions
Height: 91mm
Width: 150mm
Depth: 44mm
The Varilight Classic raised profile range has an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_light switch

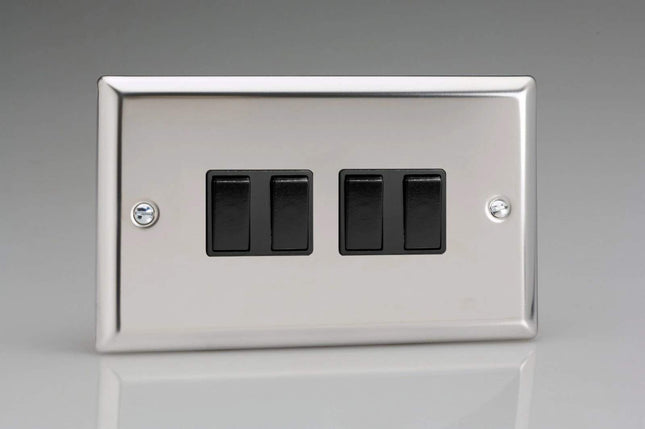

Varilight 10 amps 1 way or 2 way operation rocker switches with bevelled edge faceplate. Suitable for controlling both mains and low voltage lighting.
_Choose stylish finishes options: - Mirror Chrome - Iridium Black - Satin - Victorian Brass - Brushed Steel
_Insert colours options: - Black - Brass - Chrome - Iridium - Steel - White
_Available in 3, 4 or 6 gang options
_Range: Classic
Varilight 10 amps 1 way or 2 way operation rocker switches with bevelled edge face-plate. Suitable for controlling both mains and low voltage lighting.
_Many stylish finishes options: - Mirror Chrome - Iridium Black - Satin - Pewter Effect - Victorian Brass - Brushed Steel
_Three insert colours options - Black - Polished Chrome - White
_Available in 1, 2 or 3 gang options
_Range: Classic
Varilight 10 amps 1 way or 2 way operation rocker switches with bevelled edge face-plate. Suitable for controlling both mains and low voltage lighting.
_Many stylish finishes options: - Mirror Chrome - Iridium Black - Satin - Pewter Effect - Victorian Brass - Brushed Steel
_Three insert colours options - Black - Polished Chrome - White
_Available in 1, 2 or 3 gang options
_Range: Classic
Varilight 10 amps 1 way or 2 way operation rocker switches with bevelled edge face-plate. Suitable for controlling both mains and low voltage lighting.
_Many stylish finishes options: - Mirror Chrome - Iridium Black - Satin - Pewter Effect - Victorian Brass - Brushed Steel
_Three insert colours options - Black - Polished Chrome - White
_Available in 1, 2 or 3 gang options
_Range: Classic
The Varilight white plastic dimmer range has a 15mm depth from front to back of plate and require a 25mm wall box . Covered by the Varilight 10 year guaranty. Each dimmer has different characteristics and load requirements which are listed in the product title. Single plate size: 85mm x 85mm. Double plate size: 85mm x 145mm.
_Matrix Plate Kit
_1-Gang Matrix Kit For Rotary Dimmers (Twin Plate)
_Varilight Matrix system allows total dimming flexibility
_Create any combination of dimmers imaginable
_Durable white plastic
The Varilight white plastic dimmer range has a 15mm depth from front to back of plate and require a 25mm wall box . Covered by the Varilight 10 year guaranty. Each dimmer has different characteristics and load requirements which are listed in the product title. Single plate size: 85mm x 85mm. Double plate size: 85mm x 145mm.
_V-Com Dimmer
_1-Gang 2-Way Push-On/Off Rotary LED Dimmer 1 x 0-100W (max 10 LEDs)
_V-Com intelligent TRIAC leading edge dimming technology
_Soft start feature and intelligent overload protection
_Adjustable minimum brightness setting and choice of driving modes to optimise the dimming performance of a given LED lighting load

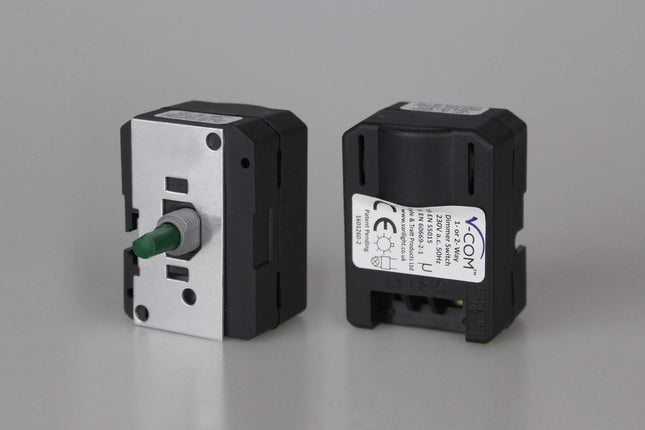

Varilight V-Com LED dimmer switches feature leading edge dimming technology and are suitable for higher loads or specific LEDs that require leading edge dimming. This includes the Halers H2 Pro and the JCC FGLED6 integrated LED downlights.
_1 way or 2 way operation
_220W - Will dim up to 30 LED lights
_400W - Will dim up to 40 LED lights
_600W - Will dim up to 60 LED lights. This version is supplied on a twin plate
Standard V-Pro dimmers have a push-on/push-off switch action with rotary dimming. You can change the driving modes and adjust the minimum brightness with pushes of the dimmer control and using signals from the lamps. You can view the programming instructions on the dimmer leaflet or, alternatively, you can view Varilight video on YouTube using this link:- https://www.youtube.com/watch?v=Id1E2hQpX-w . V-Pro series dimmers are designed for use with LEDs and they are also suitable for halogen and incandescent lighting, most dimmable electronic transformers and with no minimum load, are suitable for dimmable low energy lighting. The V-Pro Series, eliminates Dimmer Buzz For GLS Bulbs, GU10 Lamps, and LV Transformers Including Trailing Edge Loads and is equipped with Self Re-setting Overload Protection, so is able to handle overload situations, for example, if the wattage of the bulbs/lamps are accidentally too high on a circuit. This is achieved by the dimmer cutting out before there is any damage, (if the watts are grossly overloaded), until the load is reduced. The dimmer also contains a heat sensor which again stops damage to the dimmer, if it becomes too hot. Please adhere to maximum rating listed on the Varilight datasheets on their website or copy and paste the link for the V-Pro instruction leaflet: - http://www.varilight.co.uk/leaflets/VARILIGHT%20V-Pro%20Dimmer%20Instructions%20776.pdf .These dimmers do not work with lighting panels (LED or CFL) and are not suitable for wire-wound "toroidal" transformers. Please note that only good quality dimmable LEDs should be used. If this dimmer is purchased and the LED lamps are not compatible, the dimmer is not faulty so cannot be returned, but a better quality LED lamp/bulb should be fitted instead. Trailing and Leading Edge Dimmer, please refer to instructions provided with the dimmer, which explains all 3 dimming modes.
_Dimmable LED load 10w-120w (per dimmer)
_Suitable for 1-10 good quality LED lamps per dimmer module
_For Incandescent bulbs, mains, eco and L/V halogen bulbs please click on the link in the product description below.
_V-Pro dimmer are suitable for dimmable LEDs, dimmable ESLs, electronic transformers, trailing edge, standard bulbs, GU10 and mains halogen
_Fits a 25 mm wall box
Classic Brushed Steel 2-Gang 2-Way Push-On/Off Rotary LED Dimmer 2 x 0-120W (1-10 LEDs)
_Power and brightness: 120 watts at 230v
_Finish: Brushed Steel
_Dimensions: 47mm x 91mm x 91mm
The Varilight Classic raised profile range has an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.

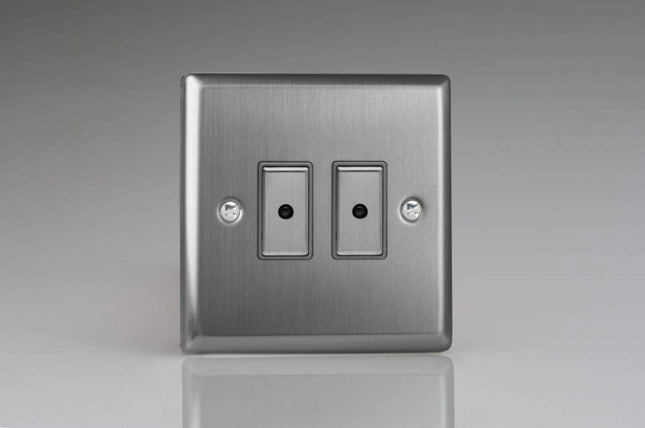

_V-Pro Multi-Point Remote (formerly Eclique2) Dimmer
_2-Gang 1-Way V-Pro Multi-Point Remote/Tactile Touch Control Master LED Dimmer 2 x 0-100W (1-10 LEDs)
_V-Pro intelligent dimming technology
_Tactile touch control or remote control from dedicated handset or spare button on an existing handset (e.g. TV remote)
_Soft start feature and intelligent overload protection
Dimmer will give you complete control over your lighting ambience, thanks to its intelligent 2-way control mechanism and is also available in number of finishes acting as both a key aesthetic and technical component of your interior design. The maximum load per gang is 100 watts or 10 lamps (whichever is lower). The minimum load per gang should not be less than 10 watts or 2 LEDs.
_LED compatible
_2 way control mechanism
_Trailing edge technology
_Model number: DIM-1BM-1-BM
Standard V-Pro dimmers have a push-on/push-off switch action with rotary dimming. You can change the driving modes and adjust the minimum brightness with pushes of the dimmer control and using signals from the lamps. You can view the programming instructions on the dimmer leaflet or, alternatively, you can view Varilight video on YouTube V-Pro series dimmers are designed for use with LEDs and they are also suitable for halogen and incandescent lighting, most dimmable electronic transformers and with no minimum load, are suitable for dimmable low energy lighting. The V-Pro Series, eliminates Dimmer Buzz For GLS Bulbs, GU10 Lamps, and LV Transformers Including Trailing Edge Loads and is equipped with Self Re-setting Overload Protection, so is able to handle overload situations, for example, if the wattage of the bulbs/lamps are accidentally too high on a circuit. This is achieved by the dimmer cutting out before there is any damage, (if the watts are grossly overloaded), until the load is reduced. The dimmer also contains a heat sensor which again stops damage to the dimmer, if it becomes too hot. Please adhere to maximum rating listed on the Varilight datasheets on their website or copy and paste the link for the V-Pro instruction leaflet: dimmers do not work with lighting panels (LED or CFL) and are not suitable for wire-wound "toroidal" transformers. Please note that only good quality dimmable LEDs should be used. If this dimmer is purchased and the LED lamps are not compatible, the dimmer is not faulty so cannot be returned, but a better quality LED lamp/bulb should be fitted instead. Trailing and Leading Edge Dimmer, please refer to instructions provided with the dimmer, which explains all 3 dimming modes.
_Dimmable LED load 10w-120w (per dimmer)
_Suitable for 1-10 good quality LED lamps per dimmer module
_For Incandescent bulbs, mains, eco and L/V halogen bulbs please click on the link in the product description below.
_V-Pro dimmer are suitable for dimmable LEDs, dimmable ESLs, electronic transformers, trailing edge, standard bulbs, GU10 and mains halogen
_Fits a 25 mm wall box

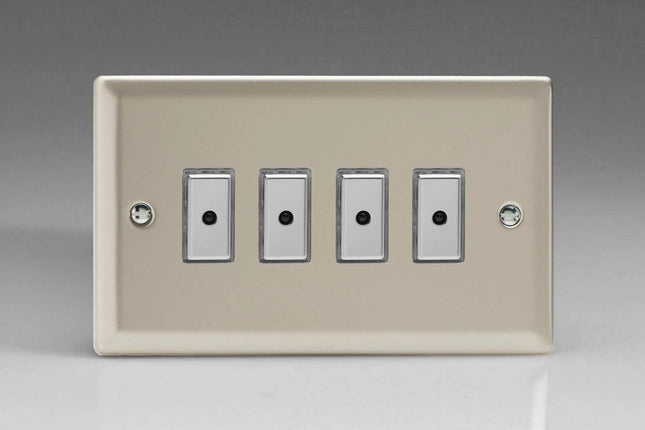

The Varilight Classic raised profile range has an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_Back Box Depth: 25mm
_Remote can be purchased seperately
_Gang: 4
_Measurements: 91mm:150mm:27mm
_Plate Style: Classic
