Metric 333mm lengths of high carbon bright steel, precision ground to very close tolerances; Above 25mm + - 0.025mm.Below 25mm + - 0.0127mm. Closely controlled analysis for uniform machining properties and consistent response to heat treatment. Chamfered, deburred ends for safety.Size 3mm
Metric 333mm lengths of high carbon bright steel, precision ground to very close tolerances; Above 25mm + - 0.025mm.Below 25mm + - 0.0127mm. Closely controlled analysis for uniform machining properties and consistent response to heat treatment. Chamfered, deburred ends for safety.Size 25mm
Metric 333mm lengths of high carbon bright steel, precision ground to very close tolerances; Above 25mm + - 0.025mm.Below 25mm + - 0.0127mm. Closely controlled analysis for uniform machining properties and consistent response to heat treatment. Chamfered, deburred ends for safety.Size 22mm
Imperial 13in lengths of high carbon bright steel, precision ground to very close tolerances; Above 1 in + - 0.0005in.Below 1 in + - 0.00025in. Closely controlled analysis for uniform machining properties and consistent response to heat treatment. Chamfered, deburred ends for safety.Size 1 in
Metric 333mm lengths of high carbon bright steel, precision ground to very close tolerances; Above 25mm + - 0.025mm.Below 25mm + - 0.0127mm. Closely controlled analysis for uniform machining properties and consistent response to heat treatment. Chamfered, deburred ends for safety.Size 16mm
Imperial 13in lengths of high carbon bright steel, precision ground to very close tolerances; Above 1 in + - 0.0005in.Below 1 in + - 0.00025in. Closely controlled analysis for uniform machining properties and consistent response to heat treatment. Chamfered, deburred ends for safety.Size 3/4 in
1 x Moore & Wright 4009 Engineer's Square Grade B 225mm (9in)in Retail Packaging. Specifications: Blade Size: 273.1 x 38.1mm.Stock Size: 139.7 x 38.1mm.Inner Working: 107.9 x 234.95mm.
This hollow punch is made from carbon steel. It has a ground tapered section with a milled clearway for removing waste materials. It is intended for cutting soft materials such as leather.
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size.64.0mm.Key Type.ME. 14mm hexagonal wrench
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size.20.0mm.Key Type.MB. 8mm hexagonal wrench
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size.31.0mm.Key Type.MB. 8mm hexagonal wrench
Type 117 Centre punches are manufactured from specially selected steel, hardened and properly tempered. They are well proportioned, nicely finished and have a knurled finger grip. The points are ground at the proper angle to give maximum service, and the tips are accurately centered. Length: 100mm (4in).Size 2 x 100mm (5/64 x 4 in)
Used to adjust tappets, spark plugs, distributor points, checking bearing clearances and gear play, fitting pistons, rings and pins and gauging narrow slots. Leaves are tempered steel, easily removed and replaced. Locking device on all sets.Inch Reading Gauges with Straight leaves 1/2 x 4 1/2 in No. of leaves: 13 Range: 0.0015 - 0.200 Inch (0.0015, 0.002, 0.003, 0.004, 0.006, 0.008, 0.010 to 0.040 by 0.01 in steps , 0.075, 0.100, 0.200 in).
Recoil inserts are the quick and easy way to repair damaged threads or create stronger original threads in alloys and composite materials in original equipment manufacture.Made from corrosion resistant stainless steel, they create stronger threads in most materials and simplify changeover from unified to metric or vice versa.They reduce thread wear and are interchangeable with other brands of inserts or tooling.Size. 7mm x 1.0Length. 1 1/2 x Diameter.
Recoil Inserts are made from high quality stainless steel wire, with a diamond shaped cross section wound to the shape of a spring thread. The insert, which is larger in diameter than the tapped hole, is compressed during installation then allowed to spring back permanently anchoring the insert in the tapped hole. Because of its larger diameter the recoil insert has a greater contact area and is normally stronger than the original thread.Size. M4.0 x 0.70 Pitch.Length. 1 1/2 X Diameter
Recoil inserts are the quick and easy way to repair damaged threads or creating stronger original threads in alloys and composite materials in original equipment manufacture.Made from corrosion resistant stainless steel, they create stronger threads in most materials and simplifiy changeover from unified to metric or vice versa.They reduce thread wear and are interchangeable with other brands of inserts or tooling.Size. 5/16 UNC X 18 TPILength. 1 1/2 x Diameter.
SB-373N series parallel pin punches made from vanadium extra steel with a hexagonal shank. Fully polished steel surfaces and a brilliant chrome finish.Length: 150mm (6 in).Size: 10mm (3/8 in).
Faithfull Letter and number punches are used for hand marking metals and other hard materials. They are useful for stamping personal identification or post codes on tools, cycles etc., as frequently recommended by police and insurers. The letter or number sizes as shown, relate to the height of the characters. The punches are manufactured from high quality tested carbon steel with double induction hardened heads to ensure high quality impressions. The body is hardened and the head is tempered to prevent chipping when hammered.Contents : 1, 2, 3, 4, 5, 6, 7, 8, 9, 0 (9 is achieved by reversing 6).Set supplied in plastic box.Size : 3mm (1/8 in).
1 x Moore & Wright 40012 Engineer's Square Grade B 300mm (12in) in Retail Packaging. Specification: Blade Size: 355.6 x 44.4mmStock Size: 177.8 x 44.4mmInner Working: 139.7 x 311.2mm
Straight edge for accurate marking out with a carpenters pencil or metal scriber. Accuracy is 0.01% of the length of the straight edge.Size: 450 x 53mm (18 x 2.08in).
These Dormer 2 piece sets each feature a tap and its corresponding pre-hole drill in one convenient package, helping to save time and error.The packs contain an A002 split-point jobber drill and a straight flute tap. The taps are suitable for threading up to 1.5x their diameter in most materials (ISO Standard). Two tap options are available: Second tap for through drilling, or a bottoming tap for blind holes.Specifications: Tap Type: SecondThread Size: M8
These Dormer 2 piece sets each feature a tap and its corresponding pre-hole drill in one convenient package, helping to save time and error.The packs contain an A002 split-point jobber drill and a straight flute tap. The taps are suitable for threading up to 1.5x their diameter in most materials (ISO Standard). Two tap options are available: Second tap for through drilling, or a bottoming tap for blind holes.Specifications: Tap Type: BottomingThread Size: M8
Dormer E500 straight flute taps are the only type of taps that can be used by hand, but they may also be used in a machine if required. Extremely versatile, can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming, third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1,2 and 3, Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size 20.0mm x 2.5 second
The Facom 249.G sheathed drift punches are tough and durable. With very high tensile strength, these punches feature a head hardened to 43 HRc and a long shank hardened to 58 HRc. The handles are ergonomically shaped for comfort and shock absorption. Ideal as an aid in aligning bolt or rivet holes prior to inserting a fastener.The FCM249G10 Sheathed Punch has the following specifications:Point diameter: 9.80 mm.Length: 230mm.
The Moore & Wright 400 Series Dial Indicator has a satin-chromed body with a tungsten carbide measuring contact and a double dial indicator for measuring mm stroke. The design is shockproof incase of accidently knocks. The scale can be adjusted with the stop screw. The 400 Series Dial Indicator is manufactured to DIN 878 standards. Supplied packed in a foam box. Range: 0-10mm.Resolution: 0.01mm.Dial Diameter: 58mm. Type: Ear Back.

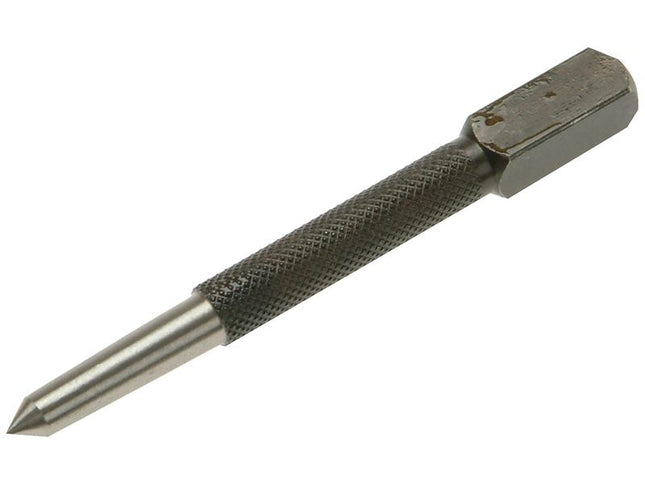

Hardened steel punches carefully heat treated for long life. Precisely knurled body with square head which gives a good striking area and prevents the punch from rolling.Size 1.5mm (1/16 in).Length 100mm (4 in)
Hexagonal bodied parallel pin punches with extra long pins. Used for driving out long retaining pins. The pin should be first started with a hand or taper punch to avoid damage to the point of the pin punch. Pin length: 63mm (2.1/2in).Overall length: 152mm (6in).Size. 6.4mm (1/4 in).
Wad punches are used for cutting holes in soft materials or for producing discs from the material being cut.One piece forging with ground and polished tapered section.Size 13mm (1/2 in)
Letter punches are for marking metals and other solid materials. Produced from quality steel, heat treated to give maximum endurance and accuracy of impression. Packed in attractive plastic box.Size. 6mm (1/4 in)Contents A to Z Plus & (and)
Wad punches are used for cutting holes in soft materials or for producing discs from the material being cut.One piece forging with ground and polished tapered section.Size 44mm (1 3/4 in)
A hardened and tempered parallel pin punch, which is used for removing pins in parallel holes. The pin should be first started with a hand or taper punch to avoid damage to the point of the parallel punch.Size 4.0mm (5/32 in)
The Moore & Wright CSM Precision Sets are supplied with a rule (graduated both sides), Protractor head, Square head and Centre head. The datum faces are fully hardened and ground to resist wear. There is a centrally mounted protractor vial allows unrestricted viewing and the protractor has full 360° scale plate, graduated 0° - 180° - 0°. The protractor is also fitted with a satin chrome scale plate. The precision rules have been fully hardened and tempered with deeply etched graduations on both sides for ease of reading and long life. It has a unique rule clamp that allows positive location and clamping and a clipped corner on rule to maximise capability Square Head offers the following fixed angles: 15°, 30°, 45°, 60°, 75° and 90°. Centre Head offers a fixed 90° angle, for finding the centre of round bar stock up to 120mm diameter. MAWCSRM600 & MAWCSRME24 are rules specifically designed for use with the Combination Sets (MAWCSM300 & MAWCSME12).The Moore & Wright CSME12 Precision Combination Set is a full set including 300mm/12in rule (graduated both sides), Protractor head, Square head and Centre head. Measurements: Metric graduations: in 0.5mm, numbered every 10mm. Imperial graduations: 32nds and 64ths numbered every 1/8in.
The Moore & Wright Firm Joint Outside Calipers are manufactured from polished tool steel and have a large headed nut and screw assembly that provides a firm and rigid friction joint, with no play. The sizes listed are the effective leg length which is measured from the joint assembly. The Firm Joint Outside Calipers are manufactured to BS3123 standards. Note: Firm joint caliper capacities are generally 1/3 greater than the effective leg length.The Moore & Wright 33124 Firm Joint Outside Calipers have the following specification: Size: 600mm (24in).
The Moore & Wright MW521-01 Combination Set is supplied with three measuring heads (Square, Protractor and Centre) that can be attached to the stainless steel ruler, allowing versatile measurements and marking on various types of workpieces. The stainless steel rule has engraved graduations; one side metric, one side imperial and hardened and ground slide ways. Range: 180°.Length: 300mm (12in).
The Moore & Wright Engineer's Levels have a precision ground cast base with a V-groove for location on cylindrical work. Each level is fitted with a main, cross and plumb vial and the main vial is protected by a rotating shroud. The solution in the vials maintains colour and fluidity under all workshop conditions and the main vial has a sensitivity of 1 minute.The Moore & Wright ELM Engineer's Levels has the following specification: Length: 300mm (12in).Width: 36mm (1.42in).Height: 58mm (2.28in).Resoultion: 0.3mm per metre (0.0035in per foot).
