The Facom 249.G sheathed drift punches are tough and durable. With very high tensile strength, these punches feature a head hardened to 43 HRc and a long shank hardened to 58 HRc. The handles are ergonomically shaped for comfort and shock absorption. Ideal as an aid in aligning bolt or rivet holes prior to inserting a fastener.The FCM249G2 Sheathed Punch has the following specifications:Point diameter: 1.95mm.Length: 140mm.
Used to adjust tappets, spark plugs, distributor points, checking bearing clearances and gear play, fitting pistons, rings and pins and gauging narrow slots. Leaves are tempered steel, easily removed and replaced. Locking device on all sets.Inch Reading Gauges with Straight leaves 1/2 x 3 1/32 in No. of leaves: 26 Range: 0.0015 - 0.025 in ( 0.0015, 0.002, 0.0025, and 0.003 to 0.025 by 0.001 in steps)
Feeler gauges are used to adjust tappets, spark plugs, distributor points, check bearing clearances and gear play, fitting pistons, rings and pins and gauging narrow slots. Leaves are tempered steel, easily removed and replaced. There is a locking device on all sets.Millimetre Reading Gauges with Straight leaves 12.7 x 77mmNo. of leaves: 13 Range: 0.03 - 0.5mm ( 0.03- 0.10 by 0.01 mm steps, 0.15, 0.20 to 0.50 by 0.1 mm steps)
The Facom 249.G sheathed drift punches are tough and durable. With very high tensile strength, these punches feature a head hardened to 43 HRc and a long shank hardened to 58 HRc. The handles are ergonomically shaped for comfort and shock absorption. Ideal as an aid in aligning bolt or rivet holes prior to inserting a fastener.The FCM249G5 Seathed Punch has the following specifications:Point diameter: 4.95mm.Length: 200mm.
These Faithfull punches are made from uniformly heat treated carbon steel and are used for removing pins in parallel holes. The removal of the pins should first be started with a hand or taper punch to avoid damage to the end of the parallel punch.Tip Diameter: 4mm (5/32in).Length: 100mm (4in).
Faithfull Letter punches are used for hand marking metals and other hard materials. They are useful for stamping personal identification or post codes on tools, cycles etc., as frequently recommended by police and insurers. The letter sizes as shown, relate to the height of the characters. The punches are manufactured from high quality tested carbon steel with double induction hardened heads to ensure high quality impressions. The body is hardened and the head is tempered to prevent chipping when hammered. Each set contains twenty seven punches with the characters & and A to Z.Set supplied in plastic box.Size : 6mm (1/4 in).
The Moore & Wright Spring Dividers are manufactured from polished tool steel and the points are hardened to over 550Hv. The bow spring ensures uniform tension over working range and they are fitted with a centrally mounted adjustment screw. These Spring Dividers comply with BS3123 standards. Note: The nominal size is the distance between the centre of the roller and the working ends of the legs.The Moore & Wright 504 Spring Dividers have the following specifications: Size: 100mm (4in).
The Moore & Wright 56R Spring Joint Jenny Caliper is manufactured from polished tool steel and the marking leg has been hardened to over 550Hv at the point. It is fitted with a bow spring that ensures uniform tension over the working range and a centrally mounted adjustment screw that offers finer setting than firm joint type. Also known as Hermaphrodite calipers. Size: 150mm (6in).
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size.15.0mm.Key Type. 6mm hexagonal wrenchj
Q.Max Thrust Races are recommended to increase punch life and to significantly ease the operation of the punch. Makes cutting the holes effortless.This 10mm Thrust Race is suitable for 19-31mm punches.
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size.29.0mm.Key Type.MB. 8mm hexagonal wrench
Faithfull Long series pin punch with extended parallel shank, used for the removal of tight pin and metal dowels from mechanical fittings and machinery. Designed for heavy-duty use and made from uniformly heat treated tool steel with a round head and a knurled body for a firm grip. Set of 8 includes: 1.6, 2.4, 3.2, 4, 4.8, 6, 8 and 10mm. Pin length: 90mm (3.1/2in).Overall length: 200mm (8in).Size: 3.2mm (1/8 in)
Workpieces with straight edges, shoulders, grooves, studs, dowels, centre points and scribed lines can all be quickly and accurately located with this handy tool. Made of tool steel, hardened, ground and lapped.Description: Single end Body diameter: 10mm Contact diameter: 6mm
Recoil Inserts are made from high quality stainless steel wire, with a diamond shaped cross section wound to the shape of a spring thread. The insert, which is larger in diameter than the tapped hole, is compressed during installation then allowed to spring back permanently anchoring the insert in the tapped hole. Because of its larger diameter the recoil insert has a greater contact area and is normally stronger than the original thread.Size M16 x 2.0 Pitch.Length. 1 1/2 x Diameter
Recoil inserts are the quick and easy way to repair damaged threads or creating stronger original threads in alloys and composite materials in original equipment manufacture.Made from corrosion resistant stainless steel, they create stronger threads in most materials and simplifiy changeover from unified to metric or vice versa.They reduce thread wear and are interchangeable with other brands of inserts or tooling.Size. 14mm x 1.25 Length. 12.5mm (1/2 in).
Recoil inserts are the quick and easy way to repair damaged threads or create stronger original threads in alloys and composite materials in original equipment manufacture.Made from corrosion resistant stainless steel, they create stronger threads in most materials and simplify changeover from unified to metric or vice versa.They reduce thread wear and are interchangeable with other brands of inserts or tooling.Size. 12mm x 1.75 Length. 1 1/2 x Diameter.
Hardened and tempered square head centre punch with knurled shank and black coated finish. The knurled body provides a secure grip during use. Length: 3.2 x 100mm (1/8 x 4in).
Recoil inserts are the quick and easy way to repair damaged threads or creating stronger original threads in alloys, composite materials in original equipment manufacture.Made from corrosion resistant stainless steel, creates stronger threads in most materials, simplifies changeover from unified to metric or vice versa.Reduces thread wear, is interchangeable with other brands of inserts or tooling.Wide temperature tolerance.Size. 12mm x 1.5 Length. 1 1/2 x Diameter.
Recoil inserts are the quick and easy way to repair damaged threads or create stronger original threads in alloys and composite materials in original equipment manufacture.Made from corrosion resistant stainless steel, they create stronger threads in most materials and simplify changeover from unified to metric or vice versa.They reduce thread wear and are interchangeable with other brands of inserts or tooling.Size. 14mm x 2 Length. 1 1/2 x Diameter.
Recoil inserts are the quick and easy way to repair damaged threads or creating stronger original threads in alloys and composite materials in original equipment manufacture.Made from corrosion resistant stainless steel, they create stronger threads in most materials and simplifiy changeover from unified to metric or vice versa. Recoil thread repair kits contain a quality HSS tap, Installation tool, precision stainless steel inserts and instructions.Supplied in a sturdy container.Supplied complete with appropriate size tapping drill.Size 12mm x 1.5Length 1 1/2 x Diameter
The Moore & Wright Reversible Base Depth Gauges have accurately ground top and bottom faces to allow the base to be reversed perfect for use in confined spaces. There is a full range rule adjustment and the readings can be fixed by means of a locknut. Rules are graduated on both sides.The Moore & Wright 43 Reversible Base Depth Gauge has the following specification: Size of Base: 18/56mm, 0.71/2.21in.Width: 5.5mm/0.22in.Thickness: 1.0mm/0.04in.Length of Blade: 195mm/7.68in. Metric/Imperial Scale Graduations : Front Face: 1/32nd, Rear Face: 1.0mm.
The Moore & Wright 200 Series MW200-01 Analogue External Micrometer has a hammertone finish frame with an insulated grip, a satin chrome scale and tungsten carbide measuring faces. It has a tapered design for easier access to difficult areas. The micrometer has a adjusting key, locking lever and a constant force ratchet for ease of use. The micrometer is manufactured to DIN 863/1 standards. Supplied in plastic case. Specification Range: 0-25mm.Resolution: 0.01mm.
Recoil inserts are the quick and easy way to repair damaged threads or creating stronger original threads in alloys and composite materials in original equipment manufacture.Made from corrosion resistant stainless steel, they create stronger threads in most materials and simplifiy changeover from unified to metric or vice versa.They reduce thread wear and are interchangeable with other brands of inserts or tooling.Size. 10mm x 1.00 Length. 1 1/2 x Diameter.
Dormer E500 straight flute taps are the only type of taps that can be used by hand, but they may also be used in a machine if required. Extremely versatile, can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming, third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1,2 and 3, Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size 8.0mm x 1.25 second
Dormer E500 straight flute taps are the only type of taps that can be used by hand, but they may also be used in a machine if required. Extremely versatile, can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming, third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1,2 and 3, Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size 4.0 x 0.7 second
Dormer E500 straight flute taps are the only type of taps that can be used by hand, but they may also be used in a machine if required. Extremely versatile, can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming, third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1,2 and 3, Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size: 3.0mm x 0.5 bottoming.
Dormer E500 straight flute taps are the only type of taps that can be used by hand, but they may also be used in a machine if required. Extremely versatile, can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming, third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1,2 and 3, Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size 5.0mm x 0.8 set of 3
These Dormer 2 piece sets each feature a tap and its corresponding pre-hole drill in one convenient package, helping to save time and error.The packs contain an A002 split-point jobber drill and a straight flute tap. The taps are suitable for threading up to 1.5x their diameter in most materials (ISO Standard). Two tap options are available: Second tap for through drilling, or a bottoming tap for blind holes.Specifications: Tap Type: BottomingThread Size: M3
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size.27.5mm.Key Type.MB. 8mm hexagonal wrench
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size.70.0mm.Key Type.ME. 14mm hexagonal wrench
Used to adjust tappets, spark plugs, distributor points, checking bearing clearances and gear play, fitting pistons, rings and pins and gauging narrow slots. Leaves are tempered steel, easily removed and replaced. Locking device on all sets.Inch Reading Gauges with Tapered leaves 1/2-1.4 x 1 1/32 in No. of leaves: 26 Range: 0.0015 - 0.025 in (0.0015, 0.002, 0.0025, 0.003 to 0.025 by 0.001 in steps).
Combination scriber with a knurled body to give a positive finger grip and sharp ground, heat treated points to give a long life. Having one point and one knife edge, it is ideal for marking wood, plastic and laminates. Length: 165mm (6.1/2in).
Hexagonal bodied parallel pin punches with extra long pins. Used for driving out long retaining pins. The pin should be first started with a hand or taper punch to avoid damage to the point of the pin punch. Pin length: 63mm (2.1/2in).Overall length: 152mm (6in).A set of 6 hexagonal bodied punches with extra long pins. Walleted as a set containing one of each of the following sizes. 1/8in, 5/32in, 3/16in, 7/32in, 1/4in and 5/16in.

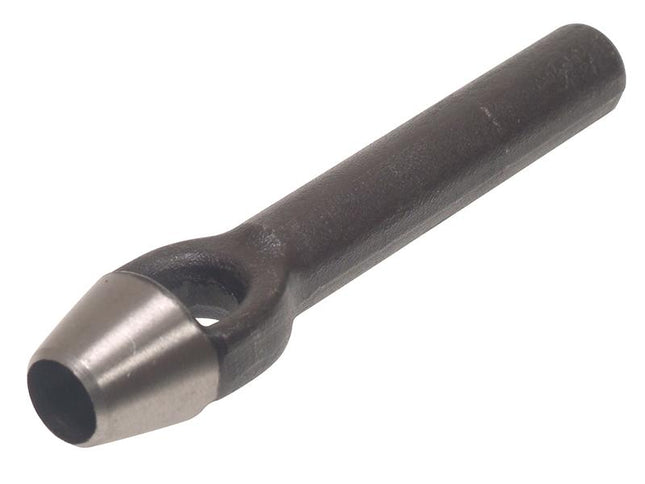

Wad punches are used for cutting holes in soft materials or for producing discs from the material being cut.One piece forging with ground and polished tapered section.Size 14mm (9/16 in)
Wad punches are used for cutting holes in soft materials or for producing discs from the material being cut.One piece forging with ground and polished tapered section.Size 6mm (1/4 in)
Hardened steel punches carefully heat treated for long life. Precisely knurled body with square head which gives a good striking area and prevents the punch from rolling.Size 2.5mm (3/32 in).Length 100mm (4 in)
