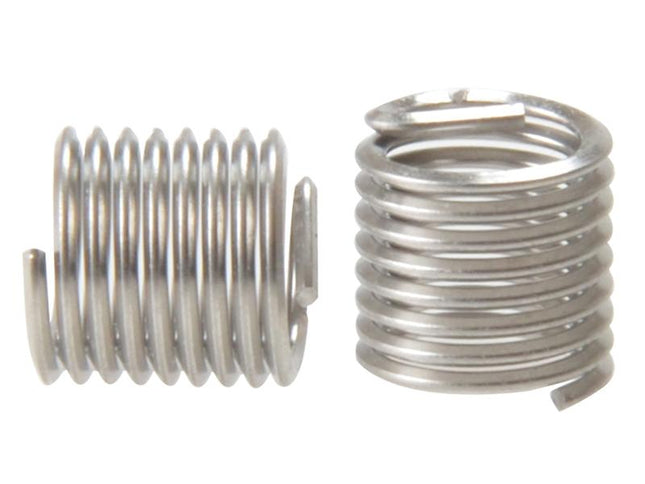

Recoil Inserts are made from high quality stainless steel wire, with a diamond shaped cross section wound to the shape of a spring thread. The insert, which is larger in diameter than the tapped hole, is compressed during installation then allowed to spring back permanently anchoring the insert in the tapped hole. Because of its larger diameter the recoil insert has a greater contact area and is normally stronger than the original thread.Size M8 x 1.25 Pitch.Length. 1 1/2 X Diameter
The Moore & Wright Traditional External Micrometer has a blue textured frame finish with tungsten carbide measuring faces and a tapered bow frame. The 'speeder' type ratchet, locking lever and adjusting key make this micrometer easy to use. It has a 6.5mm spindle diameter. The micrometers are manufactured to BS870, DIN 863/1, ISO 361 standards. Supplied in plastic pocket case.The 1965 Traditional External Micrometer has the following specification: Micrometer Range: 0-1in. Measuring Faces: Flatness: 0.00005in, Parallelism: 0.0001in, Accuracy: 0.0001in.Resolution: 0.001in.
The Moore & Wright Spring Dividers are manufactured from polished tool steel and the points are hardened to over 550Hv. The bow spring ensures uniform tension over working range and they are fitted with a centrally mounted adjustment screw. These Spring Dividers comply with BS3123 standards. Note: The nominal size is the distance between the centre of the roller and the working ends of the legs.The Moore & Wright 506 Spring Dividers have the following specifications: Size: 150mm (6in).
Dormer E500 straight flute taps are the only type of taps that can be used by hand, but they may also be used in a machine if required. Extremely versatile, can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming, third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1,2 and 3, Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size 16.0 x 2.0 bottoming
These Dormer 2 piece sets each feature a tap and its corresponding pre-hole drill in one convenient package, helping to save time and error.The packs contain an A002 split-point jobber drill and a straight flute tap. The taps are suitable for threading up to 1.5x their diameter in most materials (ISO Standard). Two tap options are available: Second tap for through drilling, or a bottoming tap for blind holes.Specifications: Tap Type: BottomingThread Size: M3
Dormer E500 straight flute taps are the only type of taps that can be used by hand, but they may also be used in a machine if required. Extremely versatile, can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming, third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1,2 and 3, Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size 20.0mm x 2.5 second
A hardened and tempered parallel pin punch, which is used for removing pins in parallel holes. The pin should be first started with a hand or taper punch to avoid damage to the point of the parallel punch.Size 4.0mm (5/32 in)
The Faithfull Half Round Engineer's Hand Scraper has been especially developed for removing high spots on machined surfaces. It is manufactured from selected steel and is suitably hardened and lightly tempered for lasting durability. It has a shaped round wooden handle for comfort during use. Size: 200mm (8in).
A hardened and tempered parallel pin punch, which is used for removing pins in parallel holes. The pin should be first started with a hand or taper punch to avoid damage to the point of the parallel punch.Size 5.5mm (7/32 in).
The Faithfull Spring Dividers have polished natural steel finish legs made of flat stock. They are carefully balanced, with heat treated points. A strong but flexible bow spring and centrally located adjustment screw give a smooth and precise action.Size 200mm (8 in)
The Faithfull Spring Dividers have polished natural steel finish legs made of flat stock. They are carefully balanced, with heat treated points. A strong but flexible bow spring and centrally located adjustment screw give a smooth and precise action.Size 150mm (6 in)
Faithfull Nail punch with a square head which provides a larger striking area and stops the punch rolling off the bench. Accurately hardened and tempered with a precision formed concave tip for better nail contact. Designed to drive nail heads below the surface of the wood.Point Diameter: 2.5mm (3/32in)Length: 100mm (4in)
Faithfull Letter and number punches are used for hand marking metals and other hard materials. They are useful for stamping personal identification or post codes on tools, cycles etc., as frequently recommended by police and insurers. The letter or number sizes as shown, relate to the height of the characters. The punches are manufactured from high quality tested carbon steel with double induction hardened heads to ensure high quality impressions. The body is hardened and the head is tempered to prevent chipping when hammered.Contents : 1, 2, 3, 4, 5, 6, 7, 8, 9, 0 (9 is achieved by reversing 6).Set supplied in plastic box.Size : 3mm (1/8 in).
The Faithfull Automatic Centre Punch is ideal for making light indents to heavy punching without using a hammer. Pressure can be varied from 5lbs to approximately 30lbs simply by rotating the head. Tip diameter: 4mm (5/32in).Length: 100mm (4in).
Pin vices are chiefly used for holding small taps, reamers, scribers or wire. The handles are tubular which permit holding wires of any length or diameter up through the length of the tool.Set of four: one of each size 1, 2, 3 & 4.Capacity: 1) 0 -1mm2) 0.75 - 1.5mm3) 1.5 - 3mm4) 3 - 4.5mm
Industrial quality bar type tap wrench manufactured from a high-quality steel. The wrench body is black powder-coated and houses two steel jaws. The handle is knurled for positive grip and control.Tap size capacity: M4 - M14
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size.64.0mm.Key Type.ME. 14mm hexagonal wrench
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size.18.6mm.Key Type. MB. 8mm hexagonal wrench
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size.51.0mm.Key Type.MC. 10mm hexagonal wrench
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size.37.0mm.Key Type.MC. 10mm hexagonal wrench
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size. 50.0mm.Key Type. MC. 10mm hexagonal wrench
The Moore & Wright MW475-01 Magnetic Indicator Stand features fine adjustment and accepts dial test indicators, digital indicators and normal indicators. It is a universal model which can be used for indicators with or without a lug style back plate. There is a powerful magnetic base that can be turned on and off depending on the user requirements and there is a magnetic force of 80kg/175lbs.
This hollow punch is made from carbon steel. It has a ground tapered section with a milled clearway for removing waste materials. It is intended for cutting soft materials such as leather.
This hollow punch is made from carbon steel. It has a ground tapered section with a milled clearway for removing waste materials. It is intended for cutting soft materials such as leather.
Wad punches are used for cutting holes in soft materials or for producing discs from the material being cut.One piece forging with ground and polished tapered section.Size 32mm (1 1/4 in)
Wad punches are used for cutting holes in soft materials or for producing discs from the material being cut.One piece forging with ground and polished tapered section.Size 35mm (1 3/8 in)
A hardened and tempered parallel pin punch, which is used for removing pins in parallel holes. The pin should be first started with a hand or taper punch to avoid damage to the point of the parallel punch.Size 6.4mm (1/4 in).
Letter punches are for marking metals and other solid materials. Produced from quality steel, heat treated to give maximum endurance and accuracy of impression. Packed in attractive plastic box.Size. 3mm (1/8 in)Contents: A to Z plus & (and)
Dormer E500 straight flute taps are the only type of taps that can be used by hand, but they may also be used in a machine if required. Extremely versatile, can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming, third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1,2 and 3, Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size: 3mm x 0.50 Taper.
SB-3753N series centre punches made from vanadium steel with a hexagonal shank. Fully polished steel surfaces and a brilliant chrome finish.Size: 8mm (5/16 in).Length: 150mm (6 in).
Widely used in automotive, aviation, diesel and farm equipment manufacture and also in jig, fixture and gauge work. Packed individually in envelope. Metric gauge 300 mm long.Thickness: 0.50mm
SB-373N series parallel pin punches made from vanadium extra steel with a hexagonal shank. Fully polished steel surfaces and a brilliant chrome finish.Length: 150mm (6 in).Size: 6mm (1/4 in).
Recoil inserts are the quick and easy way to repair damaged threads or create stronger original threads in alloys and composite materials in original equipment manufacture.Made from corrosion resistant stainless steel, they create stronger threads in most materials and simplify changeover from unified to metric or vice versa.They reduce thread wear and are interchangeable with other brands of inserts or tooling.Size. 4mm x 0.7 Length. 1 1/2 x Diameter.
Recoil Inserts are made from high quality stainless steel wire, with a diamond shaped cross section wound to the shape of a spring thread. The insert, which is larger in diameter than the tapped hole, is compressed during installation then allowed to spring back permanently anchoring the insert in the tapped hole. Because of its larger diameter the recoil insert has a greater contact area and is normally stronger than the original thread.Size M16 x 2.0 Pitch.Length. 1 1/2 x Diameter
