The Faithfull Engineers Square has been carefully crafted from high quality tool steel, these squares are accurate to BS939 Grade B standard. The stock and blade are precision ground to ensure straightness and accuracy, and the spring steel blade is hardened and tempered for increased durability. Size: 150mm (6in) External size: 173 x 100mmInternal size: 150 x 75mmStock thickness: 11mmBlade thickness: 1.7mm
Faithfull Long series pin punch with extended parallel shank, used for the removal of tight pin and metal dowels from mechanical fittings and machinery. Designed for heavy-duty use and made from uniformly heat treated tool steel with a round head and a knurled body for a firm grip. Pin length: 90mm (3.1/2in).Overall length: 200mm (8in).Size: 2.4mm (3/32 in)
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size.25.0mm.Key Type.MB. 8mm hexagonal wrench
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size.52.0mm.Key Type.ME. 14mm hexagonal wrench
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size. 50.0mm.Key Type. MC. 10mm hexagonal wrench
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size.40.0mm.Key Type.MC. 10mm hexagonal wrench
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size.60.0mm.Key Type. ME. 14mm hexagonal wrench
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size.18.6mm.Key Type. MB. 8mm hexagonal wrench
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size.14.0mm.Key Type. 6mm hexagonal wrench
A quick and easy way to cut clean metric sized holes in sheet metal up to 16 gauge. The special design allows even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches are sold singly without key, which should be ordered separately. Thread the punch onto the hexagonal screw and then pass the hexagonal screw through the hole. Position the die on top of the die nut and then screw the die nut onto the projecting hexagonal screw until it touches the metal sheet. Use a hexagonal key to turn the hexagonal screw. The screw will pull the punch through the metal and a hole will result. Please note these instructions apply to cutters up to 15 mm in size, for cutters 15 mm and over have a different configuration. Notably they have fewer components, in the larger cutters the thread is in the punch and thus there is no die nut.Size.11.0mm.Key Type. 5mm hexagonal wrench
A quick and easy way to cut clean imperial sized holes in sheet metal up to 16 gauge. The special design allows an even load during cutting and produces a burr free hole that needs no extra finishing. Heat treated cutting edges with black anti-corrosive surface finish to prevent rusting. All punches boxed singly without key, which should be ordered separately. To use these punches they require a hole to be drilled through the sheet metal (large enough to clear the heagonal Screw) then the Die and hexagonal screw are threaded through the sheet metal then onto the die nut and screw die nut. When the hexagonal screw is tightened the punch will cut cleanly and evenly through the metal.Size.1 1/8in.Key Type.B. 5/16 in hexagonal wrench
Faithfull Centre punch with a square head which provides a larger striking area and prevents the punch rolling when laid on the bench. Carefully hardened and tempered and with a 90° ground point.Point Diameter: 5mm (3/16in).Length: 100mm (4in).
Nail punches are designed to drive nail heads below the surface of the wood. Square head provides a large striking area which also stops the punch from rolling off the bench. Knurled body with hardened, slightly cupped head.Set of 4 in wallet. 1 of each 1/16in, 3/32in, 1/8in, 3/16in. Length 4in
A hexagonal bodied Rivet Snap with the working end heat-treated to ensure a long life.This tool is used for the forming of heads on solid rivets.Size 3 X 115mm (1/8 x 4 1/2 in)
A hardened and tempered parallel pin punch, which is used for removing pins in parallel holes. The pin should be first started with a hand or taper punch to avoid damage to the point of the parallel punch.Size 6.4mm (1/4 in).
This hollow punch is made from carbon steel. It has a ground tapered section with a milled clearway for removing waste materials. It is intended for cutting soft materials such as leather.
Wad punches are used for cutting holes in soft materials or for producing discs from the material being cut.One piece forging with ground and polished tapered section.Size 19mm (3/4 in)
The Faithfull Vernier Calipers are manufactured from hardened stainless steel with dual reading in Imperial to 0.001in and in Metric to 0.02mm. The universal four-way measurement facility enables reading in external, internal, depth and step modes. The sliding thumblock feature easily allows quick and precise measurements to be taken. The satin finished scales and beam ensure fast, easy and accurate readings. Range: 150mm (6in).Graduations: 0.02mm and 0.001in increments.
Metric 333mm lengths of high carbon bright steel, precision ground to very close tolerances; Above 25mm + - 0.025mm.Below 25mm + - 0.0127mm. Closely controlled analysis for uniform machining properties and consistent response to heat treatment. Chamfered, deburred ends for safety.Size 20mm
This Blue Spot 6 Piece Pin Punch Set contains the following sizes:2.5 x 150mm, 3.5 x 150mm, 4.5 x 150mm, 6 x 150mm, 8 x 150mm and 10 x 150mm. The punches are manufactured from heat treated alloy tool steel and are hardened to Rockwell HRC49-53.
The Moore & Wright 100 Series Vernier Calipers have a standard workshop model design. They are made of hardened alloyed stainless steel and have a chromed scale with engraved graduations. The calipers allow 4-way measurement and the measuring surface is micro-lapped. The calipers are manufactured to DIN 862 standards. Supplied in a plastic box.The MAW10015BI calipers have the following specifications: Range: 0-150mm (0-6in).Resolution: 0.02mm (0.001in).
Metric 333mm lengths of high carbon bright steel, precision ground to very close tolerances; Above 25mm + - 0.025mm.Below 25mm + - 0.0127mm. Closely controlled analysis for uniform machining properties and consistent response to heat treatment. Chamfered, deburred ends for safety.Size 9mm
The Faithfull Engineers Square has been carefully crafted from high quality tool steel, these squares are accurate to BS939 Grade B standard. The stock and blade are precision ground to ensure straightness and accuracy, and the spring steel blade is hardened and tempered for increased durability. Size: 225mm (9in) External size: 262 x 160mmInternal size: 235 x 129mmStock thickness: 18mmBlade thickness: 2mm

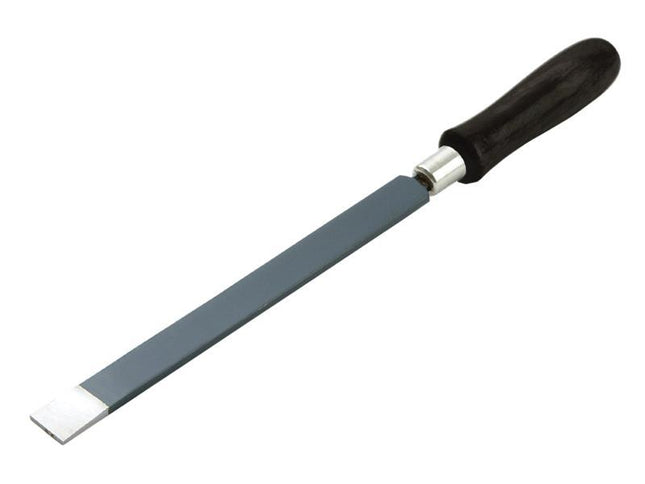

The Faithfull Engineer's Flat Hand Scraper has been specially developed for removing high spots on machined surfaces. It is manufactured from selected steel and is suitably hardened and lightly tempered for lasting durability. It has a shaped round wooden handle for comfort during use.Size: 200mm (8 in)
Dormer E500 straight flute taps are the only type of taps that can be used by hand, but they may also be used in a machine if required. Extremely versatile, can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming, third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1,2 and 3, Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size 10.0mm x 1.5 taper
The Faithfull Die Holders are used for securely holding round dies for the clean cutting of external threads. The body and ends are black powder-coated, with each end knurled for a comfortable non-slip grip.Size: 50.8mm (2 in)
Dormer E500 straight flute taps are the only type of taps that can be used by hand, but they may also be used in a machine if required. Extremely versatile, can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming, third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1,2 and 3, Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size 6.0mm x 1.0 taper
The Faithfull HSS Straight Flute Taps are versatile, general-purpose taps for threading blind or through-holes in most materials. Suitable for machine cutting, each set contains taper, second and bottom taps to accommodate all threading. The taps are made from high-speed steel, with a bright finish and conform to ISO529.Size: M6Thread: 1.0Drill Size: 5.2mm
Faithfull Long series pin punch with extended parallel shank, used for the removal of tight pin and metal dowels from mechanical fittings and machinery. Designed for heavy-duty use and made from uniformly heat treated tool steel with a round head and a knurled body for a firm grip. Set of 8 includes: 1.6, 2.4, 3.2, 4, 4.8, 6, 8 and 10mm. Pin length: 90mm (3.1/2in).Overall length: 200mm (8in).Size: 4.0mm (5/32 in)
The Faithfull Stainless Steel Marking and Measuring Set provides the user with all the basic tools to enable them to measure and mark sheet metal for a precise fit. Made from high-quality stainless steel for durability and accuracy. Widely used by metal workers, machinists and hobbyists. Contents: 1 x Divider 152mm (6in), 1 x Steel Rule 152mm (6in), 1 x Carbide Scribe 152mm (6in), 1 x Automatic Centre Punch and 1 x Square 127mm (5in)
The Faithfull Shallow Pot Magnets are designed for clamping directly onto a steel surface. The large, powerful ceramic magnet is encased within a protective steel shell. Magnetic on one face only, creating a solid clamping force for holding and lifting metal parts. The shallow depth allows use in confined spaces. They can be secured with bolts through their centre holes and their heavy lifting capacities make them a great choice for use in industrial settings.Diameter: 80.0mmHeight: 9.5mmPull Power: 25.0kg
This clamp is extremely useful for holding work together when drilling, tapping and other machining operations. Manufactured from case hardened steel for strength. Equipped with a spring clip and a retaining ring which holds the loose jaw in place when the clamp is being adjusted.Size: 30mm (1.1/4in)
Faithfull Nail punch with a square head which provides a larger striking area and stops the punch rolling off the bench. Accurately hardened and tempered with a precision formed concave tip for better nail contact. Designed to drive nail heads below the surface of the wood.Point Diameter: 1.5mm (1/16in)Length: 100mm (4in)
The Faithfull Prestige Mitre Saw Protractor is a modern and accurate way to measure internal and external wall angles. This measurement is commonly used to transfer angles to mitre saws but could also be used as a datum point for hand cutting. Manufactured using CNC machining from heavy-duty aluminium. It is then black anodised for protection and laser etched for accuracy.
Faithfull Letter punches are used for hand marking metals and other hard materials. They are useful for stamping personal identification or post codes on tools, cycles etc., as frequently recommended by police and insurers. The letter sizes as shown, relate to the height of the characters. The punches are manufactured from high quality tested carbon steel with double induction hardened heads to ensure high quality impressions. The body is hardened and the head is tempered to prevent chipping when hammered. Each set contains twenty seven punches with the characters & and A to Z.Set supplied in plastic box.Size : 3mm (1/8 in).
