Description: 230mm fixed grille fan suitable for panel/wall mounting or window mounting using the appropriate window accessory kit. Suitable for commercial applications in pubs, hotels, restaurants, offices, schools, shops and factories.
Application: Ventilation
Key features:
Simple installation
External 2 speed reversible on/off controller available
Manufactured impact resistant high gloss ABS for strength and durability
Motor fitted with thermal over load protection
Specifications:
Meets the requirements of Building Regulation Document F
IP44 rated, DEMKO Approved, and CE marked in accordance with all the relevant EEC Harmonised Directives
Double Insulated, class II motor fitted with thermal protection
Hole Diameters: Window 260mm, Wall 280mm
Panel Mount Airflow 259l/sec
Window/Wall Mount Airflow: 190l/sec
H340 x W340 x D158mm
Product range details:
Rated Voltage 220-240v-50Hz
Rated Wattage 90w
Accessories:
Wall Kit
External wall grille
External gravity wall grille
Ducting
Airvent 401901 Wall Fixing Kit in White for 4'' Extractor Fan
_Kit consists of an External Fixed Grille and a Length of 4" Solid Tube
_Grille is White with Fixed Louvres with a 4" Round Spigot to Rear
_Solid Tube is approx 4" in diameter and approx 35cm long
AIRVENT Kitchen/Utility Room Axial Extract Fan with over run timer and internal shutters, suitable for panel, wall or window mounting when using the appropriate accessory, such as tube or flexi ducting and an external grille. This listing is for the fan only. Requires two live wires!
_AIRVENT Kitchen/Utility Room Axial Extract Fan with over run timer and internal shutters, suitable for panel, wall or window mounting
_Requires 2 Live Wires: A Switched Live and a Permanent Live as well as a Neutral
_No Earth Required as Double Insulated
Slim axial extract fan with backdraught shutter and electronic overrun timer adjustable from 3 minute to 25 minutes, the factory setting is 15 minutes.Suitable for panel mounting or wall mounting using the appropriate accessory kit.Key features:
Slim – only 15mm thick
Suitable for wall or ceiling mounting
High Quality ABS mouldings with external gloss finish
Quiet Operation
Adjustable overrun timer
Backdraught shutter
Specifications:
Meets the requirements of Building Regulation Document F.
IP44 rated, BEAB Approved, and CE marked in accordance with all the relevant EEC Harmonised Directives.
Double Insulated, class II motor fitted with thermal protection
Hole Diameters: Wall 115mm
Airflow:Panel Mount 90m3/hr
H159 x W159 x D15mm
Product range details:
Rated Voltage 220-240v-50Hz
Rated Wattage 16W
Noise Level 37.8dB(A)
Low voltage (SELV) 12V extractor fan with separate transformer. This fan is suitable for use within zone 1, shower enclosures etc, providing the transformer unit is located outwith zone 2, e.g. in an adjacent cupboard or loftspace. This model incorporates a run-on timer which operates in connection with the room light switch. When the light is switched on the fan starts, when the light is switched off the fan continues to run for the pre-set period. Permanent live, switched live and neutral wires (3 cores + earth) are required at the transformer position in order to function correctly. Suitable for ceiling mounting as long as the ducting is kept shorter than 1.5m. Fan dimensions: 160mm wide x 160mm tall x 10mm deep (beyond installed surface). 99mm diameter spigot, extends for 80mm. For connection to 100mm / 4 ducting. Transformer dimensions: 149mm wide x 88mm tall x 67mm deep
_21 litres per second, 75 cubic metres per hour extraction rate
_For use with fluorescent lamp wattages 4-8, 13, 15, 18-20, 25-65 & 80 Watt
_Manufactured to BS EN 60155
Model: 434446A ¯100mm, axial, inline, shower fan kit with electronic overrun timer adjustable from 5 to 30 minutes. The factory setting is 15 minutes. Kit Includes Fan, two grilles, fixings and 3m flexible PVC ducting Quiet operation Timer model (5-30 minutes) Technical Specification IP44 rated. CE marked in accordance with all the relevant EEC Harmonised Directives. Double insulated, class II motor fitted with Thermal Protection. Airflow Installed: 82m3/hr installed Airflow, fan only, free air: 108m3/hr Technical Data: Rated Voltage 220-240v-50Hz Rated Wattage 14W Noise Level 37dB(A) Grille Dimensions Height: 170mm Width: 170mm Length: 60mm Dimensions Height-100mm Width-100mm Depth-137mm
_Full Kit comprising of Inline Fan, 2 Grilles, 3 metres of Flexiduct and Fixings
_Airvent Brand (made at Vent Axia)
_Timer Model - Can be wired so Fan stays on when light switched off
_Requires: Premanent Live, Switched Live, Neutral
_Double Insulated: No Earth Required
AirVent Axial Kitchen Fan 150mm with Pull Cord and Shutters 435103
_Model number 5031680870060.
_Adapt normal for the cuisines or the grandes salles de bains.
_Griglia anteriore section misura approx. 21cm x 21cm.
Airvent 435403 - Kitchen Extractor Fan 6''/150mm - Low Profile/Slimline - With Integral Butterfly Style Shutters
_Mains 230/240V AC 50Hz. Power consumption: 25 watts
_Extraction rate 63 litres per second, 228 cubic metres per hour
_Sound output: 40dB(A) @ 3m. Double spring operated backdraught shutter
_IP44 rated. CE approved
_Dimensions: 224mm wide x 224mm tall x 15mm deep (beyond installed surface). 145mm diameter spigot, extends for 110mm. For connection to 150mm / 6 inch ducting
Airvent 435404 Axial Low Profile Extractor Fan 150mm / 6'' - Timer Model
_Front Cover Measures Approx 8" Square
_150mm size refers to Size of the Fan inside the Housing
This model incorporates a condensation (humidity) sensor which automatically switches the fan on when the condensation level builds up. Once the condensation clears the fan turns off. Airvent are part of the Vent Axia group Dimensions: 224mm wide x 224mm tall x 15mm deep (beyond installed surface). 145mm diameter spigot, extends for 110mm. For connection to 150mm / 6 inch ducting
_Mains voltage 230/240V AC 50Hz
_Extraction rate 63 litres per second, 228 cubic metres per hour
_Power consumption: 25watts, Sound output: only 45dB(A) @ 3m
_Double spring operated backdraught shutter
_IP44 rated, CE approved
This model incorporates a run-on timer which operates in connection with the room light switch. When the light is switched on the fan starts, when the light is switched off the fan continues to run for the pre-set period. Permanent live, switched live and neutral wires (3 cores + earth) are required at the fan position in order to function correctly. This model is normally suitable for kitchen, utility room and larger bathrooms (outwith zone 2)
_Voltage 230/240V AC 50Hz. Extraction rate 61 litres per second, 220 cubic metres per hour
_Power consumption: 25 watts. Sound output: 45dB(A) @ 3m
_Timer over-run adjustable 1 - 25 minutes. Class II double insulated
_IP22 rated. CE approved. Airvent is part of the Vent Axia group
_Dimensions: 226mm wide x 218mm tall x 48mm deep (beyond installed surface). 145mm diameter spigot, extends for 80mm. For connection to 150mm / 6 inch ducting
Airvent 459294A 4'' 100mm White Bathroom Fan with Humidistat - Made at Vent Axia
_Mains voltage 230/240V AC 50Hz
_Extraction rate 21 litres per second, 75 cubic metres per hour
_Power consumption: 16watts, Sound output: only 30dB(A) @ 3m
_Pullcord override
_IP44 rated, CE approved
Airvent 459309A 100MM 4'' Bathroom Extractor Fan With Timer And Automatic Shutters
_Automatic slow opening / closing backdraught shutter built in
_24 litres per second, 88 cubic metres per hour extraction rate
_20W power consumption
_Sound output 32dB(A) @ 3m
_Dimensions: 156mm wide x 156mm high x 42mm deep. 99mm diameter spigot, extends for 53mm
Fan has thermally activated shutters which automatically open/close slowly once the fan has been switched on/off. For wall, ceiling or window mounting (wall and window kits available to buy separate). Axial fans are designed to move air over short distances i.e up to 2meters in length. Front grille measures approx 6" x 6" round spigot to rear approx diameter 4"
Description: The Worm Drive Metal Clamps are appropriate for all kinds of flexible ducts. Ideally suited for most day to day requirements for joining hose to solid/ rigid piping or solid spigots in general.
Application: Ventilation
Specifications:
Band: Width: 9mm, Thickness: 0.6mm, Ferritic Stainless Steel: AISI 430 � EN 1.4016, continuous threaded band pressed and raised, rounded edges to prevent damages to the pipe
Upper and Lower Housing: Low Carbon Galvanised Steel
Screw: Size: 7mm, cross slotted-hexagon, Galvanised Steel Passivation free of Hexavalent Chromium (Cr6+)
System size: 6_/150mm
Min-Max diameter: 60-325mm
Description: white cover plate can be flush or surface mounted. Suitable for commercial environments.
Application: Ventilation
Key features:
Controls up to 3 fans

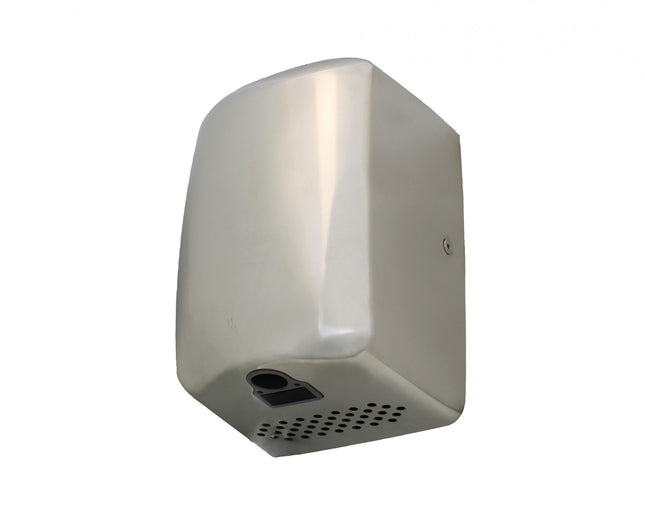

Description: High quality robust hand dryer ideal for use in many applications where fast hand drying and energy saving is essential.
Application: Washroom
Key features:
Automatic infra-red sensing
Approximately 10-12 seconds drying time
Steel cover white powder coated
Powerful Operation
Blue LED sensing zone
Internal UV Protection
Infra-red touch free activation
Intelligent activation of heating element. Element switches on when the ambient temperature is 25�C or less
Specifications:
Insulation Earthed Class I
GS Approved
IPX1 Rated
CE marked in accordance with all the relevant EEC Harmonised Directives
Air velocity 60m/s
H260 x W180 x D152mm
Product range details:
Rated at 1150 Watts
Supply Voltage 220-240V 50/60 Hz
Weight 3.0kg (3.5kg packed)
Motor 25000rpm brushed motor
Sound level 75Dba at 1 metre
Sensor Range 5-20cm
Description: The Quiet Fan X5 Conceal is the latest in domestic ventilation to incorporate a high extraction rate whilst producing an incredibly quiet running volume. Designed for wall and ceiling mounting, this comprehensive range is ideal for bathrooms and toilets.
Application: Bathroom
Key features:
Wall or ceiling mounting
High quality ABS thermoplastics for strength and durability
Quiet operation
Specifications:
IPX5 rated
Long life motors warranted for a minimum of 30,000 hours or 3 years
Integral backdraught shutters
Airflow: 75m3 /hr, 21 litres per second
SFP: 0.29W/l/s
Complies with both Part F & L
Product range details:
Rated voltage 220-240v-50Hz
Rated wattage 6W
28dB(A) at 3m
Dimensions:
H160 x W160 x D40mm
Description: The Quiet Fan X5 Conceal is the latest in domestic ventilation to incorporate a high extraction rate whilst producing an incredibly quiet running volume. Designed for wall and ceiling mounting, this comprehensive range is ideal for bathrooms and toilets.
Application: Bathroom
Key features:
Wall or ceiling mounting
High quality ABS thermoplastics for strength and durability
Quiet operation
Specifications:
IPX5 rated
Long life motors warranted for a minimum of 30,000 hours or 3 years
Integral backdraught shutters
Airflow: 75m3 /hr, 21 litres per second
SFP: 0.29W/l/s
Complies with both Part F & L
Product range details:
Rated voltage 220-240v-50Hz
Rated wattage 6W
28dB(A) at 3m
Dimensions:
H160 x W160 x D40mm
Introducing the Airvent Ducting Reducer, a vital component for optimizing your ventilation systems. Designed to seamlessly transition from a 150mm duct to a 100mm duct, this reducer ensures efficient airflow and is perfect for various ventilation applications. Key Features:- Reduces duct size from 150mm to 100mm, enhancing airflow management.- Ideal for residential and commercial ventilation systems.- Made with high-quality materials for durability and long-lasting performance.- Each pack contains one unit, making it easy to integrate into your existing setup.The Airvent Ducting Reducer is not just functional; it is manufactured by a trusted brand known for its commitment to quality. With no FSC/PEFC certification and no REACh compliance, this product is straightforward and easy to use. Enjoy statutory guarantee duration for peace of mind with your purchase. Upgrade your ventilation system with the Airvent Ducting Reducer and experience improved air circulation and efficiency today.
The Airvent Extractor Fan Fixing Kit for Window Mounting is designed for easy installation of a 9'' commercial fan. It includes all necessary components to securely mount the fan onto a window, ensuring efficient ventilation and air extraction. Ideal for commercial settings, this kit provides a reliable solution for maintaining air quality and comfort.
Square White Fan Grille to fit onto 150mm 6" Ducting. The Grille has a circular spigot on the rear to fix onto your solid or flexible ducting. There are screw holes in each corner and fixed slats at a slight gradient. The front of the grille measures approx 19cm square. The round spigot at the back has a diameter of slightly under 150mm and a depth of approx 2cm. The cover has an overall depth of approx 3cm and has curved edges to give a neat finish.
_Premium Plastic Grille with Rounded Edges - 19cm Square
_Round Spigot At Rear - 147cm diameter to fit onto 150mm ducting
_Curved Edges to Give a Neat Finish
_Screw Holes in Each Corner
_Fixed Slats at a Slight Gradient
