Introducing the Airvent 100mm Vertical 90 Degrees Elbow Bend, the perfect ducting connector designed to optimize your ventilation system. This high-quality elbow bend features a 100mm diameter and dimensions of 110 x 54mm, allowing for efficient airflow and seamless connections in your ducting setup.Specifications:- Diameter: 100mm- Dimensions: 110mm x 54mm- Maximum Height: 79mm- Maximum Width: 117mm- Maximum Depth: 141mm- Colour: WhiteThis durable and reliable elbow bend is an essential component for any ventilation application, ensuring that air flows smoothly through your ducts. With a guaranteed statutory duration, you can trust the quality of this product. Each unit weighs just 100 grams, making it lightweight yet sturdy for easy installation. Manufactured by Airvent, this ducting bend is not only practical but also compliant with industry standards. Enhance your ventilation system with the Airvent 100mm Vertical 90 Degrees Elbow Bend today!
Description: 100mm Axial extract fan suitable for panel mounting or wall/window mounting using the appropriate accessory kit.
Application: Bathroom
Key features:
Wall or ceiling mounting
All non pull-cord variants can be ceiling mounted
High quality ABS mouldings
With external gloss finish
Quiet Operation
Specifications:
Meets the requirements of Building Regulation Document F.
IP44 rated, BEAB Approved, and CE marked in accordance with all the relevant EEC Harmonised Directives.
Double Insulated, class II motor fitted with thermal protection
Hole Diameters: Window 105mm, Wall 115mm
Airflow: Panel Mount 88m3/hr, Window/Wall 543m/hr
H154 x W154 x D47mm
Product range details:
Rated Voltage 220-240v-50Hz
Rated Wattage 16W
Motor speed 2100rpm
Noise Level 30dB(A)
Accessories:
Window Kit
Wall Kit
External wall grille
External gravity wall grille
Ducting
Description: �100mm, axial, inline, shower fan kit with remote switching.
Application: Bathroom
Key features:
Fan
Two grilles
Fixings and 3m flexible
PVC ducting
Quiet operation
Specifications:
Meets the installed performance requirements of Building Regulations Document F for an inline fan. IP44 rated. CE marked in accordance with all the relevant EEC Harmonised Directives. Double insulated, class II motor fitted with Thermal Protection.
Hole Diameters: Wall 115mm
Airflow Installed: 82m3/hr installed
Airflow, fan only, free air: 108m3/hr
H100 x W100 x D137mm
Product range details:
Rated Voltage 220-240v-50Hz
Rated Wattage 14W
Noise Level 37dB(A)
Description: This powerful 100mm in-line LED shower fan and light kit with timer, is designed for the safe ventilation of bathrooms, toilets and shower rooms by removing any risk of an electric shock in wet areas as the fan is mounted remotely.
Application: Bathroom
Key features:
SFP down to 0.43W/l/s
Incorporates an integral adjustable electronic timer (1-20 mins)
Quiet Operation
Limited to 1.5mtrs of ducting when connected to an axial fan
Specifications:
Meets the requirements of Building Regulation Document F and L.
IP44 rated.
CE marked in accordance with all the relevant EEC Harmonised Directives.
Double Insulated, class II
Motor fitted with thermal protection
Airflow: Maximum 24 lts/sec
Product range details:
Rated Voltage 12 volt DC 3WMR16 lamp. Powered by an LED driver.
Maximum Pressure � 20Pa
Rated Wattage- 10.4watts
Sound Volume- 41dB(A)
Max Operating Temp � 40�C
Kit Comprises of the following:
In Line 100mm shower fan
White/Chrome fitting Shower Light and fitting.
12 Volt Transformer
1.5mtrs PVC Ducting
Butterfly clips, cable ties and screw plugs
External Grille
Description: 100mm axial extract fan with Humidity control which is adjustable between 40%RH and 95%RH complete with adjustable timer (1-20 mins) designed to meet the new Part L building regulations, for use in bathrooms and toilets.
Application: Bathroom
Key features:
FP down 0.42W/l/s
Suitable for wall or ceiling mounting
High Quality ABS moulding with external gloss finish
Quiet Operation
Comes complete with backdraught shutter
Specifications:
Meets the requirements of Building Regulation Document F and L.
IP44 rated and CE marked in accordance with all the relevant EEC Harmonised Directives.
Double Insulated, class II motor fitted with thermal protection
Airflow: 91.8m3/hr
H205 x W205 x D110mm
Product range details:
Rated Voltage � 220-240v-50Hz
Rated Wattage � 10.77W
Motor speed � 2400rpm
Noise Level � 41dB(A)
Max. Operating Temp. � 40�C
Max. Pressure � 20Pa
Specific Fan Power (SFP) Requirements:
Mechanical ventilation systems should be designed to minimise electric fan power. Specific fan power (SFP) should not be worse than:
i. 0.5 Watts per litres per seconds for intermittent extract ventilation systems
ii. 0.7 Watts per litres per seconds for continuous extract ventilation systems
iii. 1.5 Watts per litres per seconds for continuous supply and extract with heat recovery ventilation systems.
Description: 100mm axial extract fan with adjustable timer (1-20 mins) designed to meet the new Part L building regulations, for use in bathrooms and toilets.
Application: Bathroom
Key features:
FP down 0.42W/l/s
Suitable for wall or ceiling mounting
High Quality ABS moulding with external gloss finish
Quiet Operation
Comes complete with backdraught shutter
Specifications:
Meets the requirements of Building Regulation Document F and L.
IP44 rated and CE marked in accordance with all the relevant EEC Harmonised Directives.
Double Insulated, class II motor fitted with thermal protection
Airflow: 91.8m3/hr
H205 x W205 x D110mm
Product range details:
Rated Voltage � 220-240v-50Hz
Rated Wattage � 10.77W
Motor speed � 2400rpm
Noise Level � 41dB(A)
Max. Operating Temp. � 40�C
Max. Pressure � 20Pa
Specific Fan Power (SFP) Requirements:
Mechanical ventilation systems should be designed to minimise electric fan power. Specific fan power (SFP) should not be worse than:
i. 0.5 Watts per litres per seconds for intermittent extract ventilation systems
ii. 0.7 Watts per litres per seconds for continuous extract ventilation systems
iii. 1.5 Watts per litres per seconds for continuous supply and extract with heat recovery ventilation systems.
Description: 100mm standard centrifugal fan with adjustable electronic overrun timer (1�20 minutes). Suitable for use in toilets, cloakrooms, bathrooms and shower rooms.
Application: Bathroom
Key features:
Wall or Ceiling Mounting
Suitable for wall or ceiling mounting
High Impact ABS mouldings with external gloss finish Integral Backdraught Shutter
Long Life Motor
Flush or Surface Mountable
Adjustable 98mm rear or side exit spigot
Specifications:
Meets the requirements of Building Regulation Document F
IP44 rated
BEAB Approved
CE marked in accordance with all the relevant EEC Harmonised Directives
Double Insulated, class II motor fitted with thermal protection
Hole Diameters: Wall 117mm
Airflow: 75m3/hr
H256 x W210 x D100mm
Product range details:
Rated Voltage 220-240v-50Hz
Rated Wattage 11W
Noise Level 36dB(A
Accessories:
Wall Kit
External wall grille
Flexible Ducting
Description: Designed for the safe ventilation of bathrooms, toilets and shower rooms, by removing any risk of an electric shock in wet areas as the fan is mounted remotely.
�150mm, axial, inline, shower fan kit with electronic overrun timer adjustable from 1 to 20 minutes (the factory setting is 15 minutes). Includes fan with mounting foot, PVC flexible ducting, 2 white grilles, grille fixing clips and screw plugs.
Application: Ventilation
Key features:
Meets the installed performance requirements of Building Regulations Document F and L for an inline fan.
IP44 rated. CE marked in accordance with all the relevant EEC Harmonised Directives.
Double insulated, class II motor fitted with Thermal Protection.
Airflow: Maximum 24ltrs per seconds installed
Sound: 40dBA at 3 metres
Product range details:
Rated Voltage: 220-240V 50Hz
Motor: 2400rpm
Rated Power: 20.2W
Maximum Pressure: 50 p.a.
Maximum Operating Temperature: 40�C
Specific Fan Power (SFP) Requirements:
1.0 a. Mechanical ventilation systems should be designed to minimise electric fan
Fan power. Specific fan power (SFP) should not be worse than:
i. 0.5 Watts per litres per seconds for intermittent extract ventilation systems
ii. 0.7 Watts per litres per seconds for continuous extract ventilation systems
iii.1.5 Watts per litres per seconds for continuous supply and extract with heat recovery ventilation systems
Description: Standard fan plus timer and humidistat
Application: Bathroom
Key features:
Slim � only 15mm thick
Suitable for wall or ceiling mounting
High Quality ABS mouldings with external gloss finish
Quiet Operation
Backdraught shutter
Specifications:
Meets the installed performance requirements of Building Regulations Document F for a wall fan
IPX7 fan suitable for installing in zone 1. GS approved and CE marked in accordance with all the relevant EEC Harmonised Directives
Double Insulated, class III motor fitted with thermal protection, controller class II
Hole Diameters: �115mm
Airflow: Panel Mount 90m3/hr
H159 x W159 x D15mm
Product range details:
Rated Voltage 220-240v-50Hz
Rated Wattage 14W
Noise Level 38dB(A)
Accessories:
Wall Kit
External wall grille
External gravity wall grille
Ducting
Description: Standard SELV fan plus Humidistat with pullcord
Application: Bathroom
Key features:
Slim � only 15mm thick
Suitable for wall or ceiling mounting
High Quality ABS mouldings with external gloss finish
Quiet Operation
Backdraught shutter
Specifications:
Meets the installed performance requirements of Building Regulations Document F for a wall fan
IPX7 fan suitable for installing in zone 1. GS approved and CE marked in accordance with all the relevant EEC Harmonised Directives
Double Insulated, class III motor fitted with thermal protection, controller class II
Hole Diameters: �115mm
Airflow: Panel Mount 90m3/hr
H159 x W159 x D15mm
Product range details:
Rated Voltage 220-240v-50Hz
Rated Wattage 23W
Noise Level 38dB(A)
Accessories:
Wall Kit
External wall grille
External gravity wall grille
Ducting
Description: Standard fan plus humidistat plus pull cord
Application: Bathroom
Key features:
Designed to run continuously with a boost function to comply with Part F & L
Overrun timer function
Rated Voltage 220-240v-50Hz
Rated Wattage 1.5W on trickle, 2.5W on low boost and 8W on high boost
Low Trickle � 24.0dBA
High Trickle � 25.9dBA
Boost � 38.5dBA
H265 x W210 x D90mm

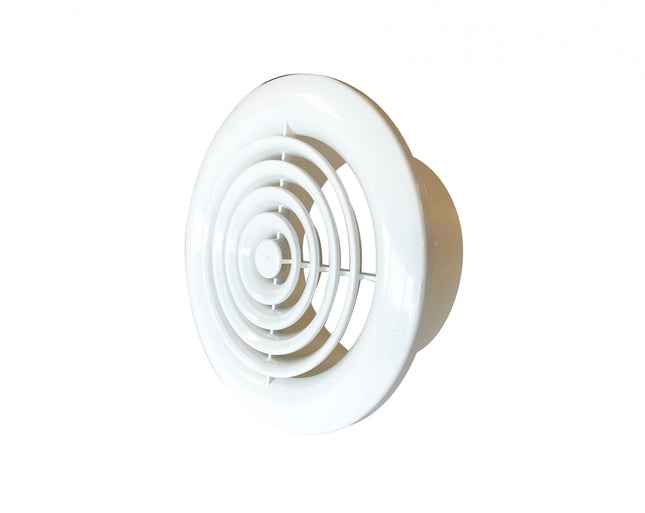

Airvent ceiling vent grille. Ceiling grille for use with indoor ventilation systems. This item can be used as air intake or extraction. For use with 4" (100mm) diameter ducting. The cover is removable for cleaning, etc. Approximate dimensions are 141mm diameter x 10mm deep (visible), 99mm diameter spigot (extends for 50mm)
Discover the Airvent 100mm Short Round to Rectangle Male Adapter, expertly designed for effective ventilation solutions. This versatile adapter features a 100mm diameter and dimensions of 110 x 54mm, making it an ideal choice for transitioning from round to rectangular ductwork. With a maximum height of 107mm, a maximum width of 114mm, and a maximum depth of 118mm, this adapter ensures a snug fit and optimal airflow. Made from high-quality materials, it guarantees durability and reliability in various ventilation applications. Whether you're upgrading your home ventilation system or working on a commercial project, the Airvent Short Round to Rectangle Adapter is a must-have component. Each adapter is sold individually, ensuring you get precisely what you need for your installation. Choose Airvent for your ventilation needs and experience the difference in quality and performance. This product is compliant with relevant regulations and is backed by statutory guarantee, giving you peace of mind with your purchase.
Description: 100mm axial fan which has a unique design that allows the fan to fit unobtrusively into any wall or ceiling. The tile design allows the fan to blend into the d�cor of the room. This unit is not suitable for Window mounting.
Application: Bathroom
Key features:
Unique tile design
Long life motor
Easy to install and maintain
Quiet and Efficient
Specifications:
Meets the requirements of Building Regulation Document F
IP24 rated, BEAB Approved, and CE marked in accordance with all the relevant EEC Harmonised Directives
Double Insulated, class II motor fitted with thermal protection
Hole Diameters: Wall 115mm
Airflow: Wall 75m3/hr
H140 x W140 x D105mm
Accessories:
Wall Kit
External wall grille
Ducting
Description: 100mm axial fan which has a unique design that allows the fan to fit unobtrusively into any wall or ceiling. The tile design allows the fan to blend into the d�cor of the room. This unit is not suitable for Window mounting.
Application: Bathroom
Key features:
Unique tile design
Long life motor
Easy to install and maintain
Quiet and Efficient
Specifications:
Meets the requirements of Building Regulation Document F
IP24 rated, BEAB Approved, and CE marked in accordance with all the relevant EEC Harmonised Directives
Double Insulated, class II motor fitted with thermal protection
Hole Diameters: Wall 115mm
Airflow: Wall 75m3/hr
H140 x W140 x D105mm
Accessories:
Wall Kit
External wall grille
Ducting
Description: ABS Pipe. Round Pipe Ducting Systems are the least resistant, due to the way the duct handles back-pressure. Ideal for fans, cooker hoods, whole-house ventilation systems and stack ventilation. Suitable for long duct runs where space is not an issue. Made from flame retardant materials.
Round Pipe Lengths: Female
Accessories and Bends: Male
Maximum Operating Temperature: -15�C/60�C
Material: uPVC
Application: Ventilation
Specifications:
100 x 350mm
Maximum Height: 104mm
Maximum Width: 104mm
Maximum Depth: 350mm
Description: The 110 x 54mm � L1.5m Rectangular Ducting System is an efficient range of flat ducting generally used for short and simple duct runs. 110x54mm Rectangular ducting is ideal for fitting in bathrooms or toilets/internal WC�s, concealed above wall units or in wall or ceiling voids due to its low profile.
Application: Ventilation
Specifications:
Material: uPVC
Maximum Operating Temperature: -15�C/60�C
Minimum Space Needed (Female Accessories): 112x62mm
H55 x W111 x D1500mm
White, Illustrated (Grey or white may be supplied)
Description: The 110 x 54mm � L1m Rectangular Ducting System is an efficient range of flat ducting generally used for short and simple duct runs. 110x54mm Rectangular ducting is ideal for fitting in bathrooms or toilets/internal WC�s, concealed above wall units or in wall or ceiling voids due to its low profile.
Application: Ventilation
Specifications:
Material: uPVC
Maximum Operating Temperature: -15�C/60�C
Minimum Space Needed (Female Accessories): 112x62mm
H55 x W111 x D1000mm
White, Illustrated (Grey or white may be supplied)
PLEASE NOTE THIS IS THE LARGER MODEL FAN FOR CONNECTION TO 150MM / 6" DIAMETER DUCTING This model incorporates a condensation (humidity) sensor which automatically switches the fan on when the condensation level builds up. Once the condensation clears the fan turns off. It can also be connected to work with the room light switch. Requires at least a permanent unswitched live and neutral connection. If the timer functionality is required then an additional switched live connection is required.
_Mains voltage 220/240V AC 50Hz. See product description for electrical connection requirements
_Extraction rate 63 litres per second, 230 cubic metres per hour
_Power consumption: 25 watts. Sound output 40dB(A) @ 3m
_Spring operated backdraught shutter. Class II - double insulated. IP44 rated
_Dimensions: 205mm wide x 205mm tall x 50mm deep (beyond installed surface). 150mm diameter spigot, extends for 60mm. For connection to 150mm / 6 inch ducting

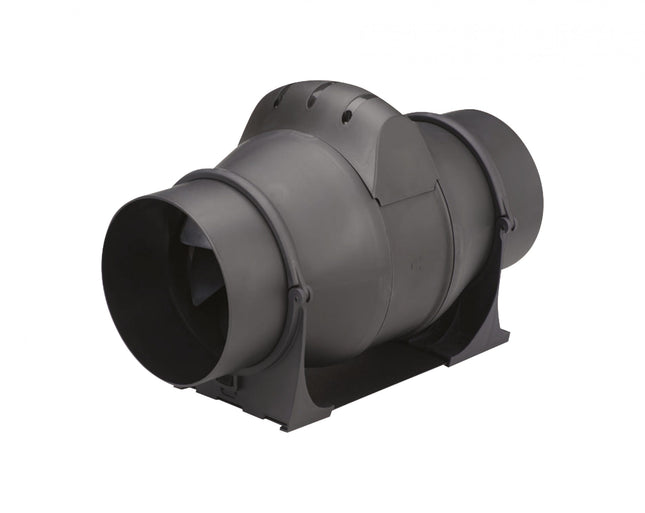

Description: 150mm mixed flow high performance extract fan suitable for use in restricted spaces such as ceiling voids traditionally found in refurbishments.
Application: Ventilation
Key features:
Integral foot plate provides secure, fast mounting
Spigot designed for speedy installation of flexible ducting.
Mixed flow fans develop greater pressure than conventional axial fans making them ideal for use in ducted systems
3 Speed fan setting
Specifications:
Fully Building Code Compliant
IPX4 rated CE marked in accordance with all the relevant EEC Harmonised Directives
Double Insulated with motor fitted with Thermal Protection
H252 x W226 x D307mm
Product range details:
Rated Voltage 220-240v-50Hz
High Rated Wattage 120W
Low Rated Wattage 42W
High Speed Noise Level: 48dB(A) @ 3m
Low Speed Noise Level 31dB(A) @ 3m
Performance:
High Speed: 855m3/h
Low Speed: 400m3/h
Accessories:
Wall Kit
External wall grille
Flexible Ducting
Diameter of spigot: 98mm
Description: 150mm mixed flow high performance extract fan suitable for use in restricted spaces such as ceiling voids traditionally found in refurbishments.
Application: Ventilation
Key features:
Integral foot plate provides secure, fast mounting
Spigot designed for speedy installation of flexible ducting.
Mixed flow fans develop greater pressure than conventional axial fans making them ideal for use in ducted systems
3 Speed fan setting
Specifications:
Fully Building Code Compliant
IPX4 rated CE marked in accordance with all the relevant EEC Harmonised Directives
Double Insulated with motor fitted with Thermal Protection
H252 x W226 x D307mm
Product range details:
Rated Voltage 220-240v-50Hz
High Rated Wattage 120W
Low Rated Wattage 42W
High Speed Noise Level: 48dB(A) @ 3m
Low Speed Noise Level 31dB(A) @ 3m
Performance:
High Speed: 855m3/h
Low Speed: 400m3/h
Accessories:
Wall Kit
External wall grille
Flexible Ducting
Diameter of spigot: 98mm
Description: This automatic dryer is most probably the smallest, most energy efficient and quickest hand drying model in the market.
Application: Washroom
Key features:
10-12 seconds drying time
Low energy usage
Powerful Operation
Saves up to 75% energy costs against a conventional dryer
Approximately 10-12 seconds drying time
Specifications:
Insulation Earthed class 1
IPX1 rated
Air velocity 113m3/hr
TUV/GS Approved, RoSH Compliant
CE marked in accordance with all the relevant EEC Harmonised Documents
Warm Air Speed Output 75-100m/s
H180 x W250 x D138.5mm
Product range details:
Rated 1.0Kw at 220V
Supply Voltage 220-240V 50Hz
Sound level 75dBa at 1 metre
Weight 3.8kg (4.2kg packed)
Motor Thermal Protection auto resetting at 105�C
Motor 500W
Element 500W
