Wired programmable room thermostat for underfloor heating
JG Underfloor Controls 240v wired programmable thermostat is a stylish and simple way to control wet underfloor heating systems.
Easily mounted on the wall, the thermostat signals the JG Underfloor Controls wiring centre to provide heat to an individual room. Its user-friendly interface makes adjusting and programming temperatures fast and simple.
Ideal for new builds and renovations, the back plate is fitted before decorating begins and the front plate is installed once work is completed to avoid any damage. Designed to suit a standard pattress box, the thermostat is also ideal when replacing an existing thermostat.
The thermostat can be accessed remotely using the JG Underfloor Controls gateway and App, offering remote underfloor heating control on the go.
Features and benefits
Mains-wired thermostat that is easy to install and set up
7-day programme, 15-minute increments and 6 on/off periods for optimal comfort and control
Ambient temperature sensor with an optional connection for an external probe to protect against excessive heat
Open Window function detects sudden temperature drops to prevent the boiler from firing up and wasting energy
Adaptive function predicts heat up times and adjusts programming to eliminate temperature spikes
Freeze Protection function reduces energy-wastage in unused rooms and is adjustable between 5-17°C
Holiday function maintains low-level heating when the home is unoccupied
Heating Boost function boosts heat for 1-9 hours in the event of low temperatures
Anti-seize function prevents the UFH pump from seizing during low-usage months
Free smart app for controlling underfloor heating on the go
Compatible with Alexa or Google Home voice control
Meets Boiler Plus requirements
Wired programmable room thermostat for underfloor heating
JG Underfloor Controls 240v wired programmable thermostat is a stylish and simple way to control wet underfloor heating systems.
Easily mounted on the wall, the thermostat signals the JG Underfloor Controls wiring centre to provide heat to an individual room. Its user-friendly interface makes adjusting and programming temperatures fast and simple.
Ideal for new builds and renovations, the back plate is fitted before decorating begins and the front plate is installed once work is completed to avoid any damage. Designed to suit a standard pattress box, the thermostat is also ideal when replacing an existing thermostat.
The thermostat can be accessed remotely using the JG Underfloor Controls gateway and App, offering remote underfloor heating control on the go.
Features and benefits
Mains-wired thermostat that is easy to install and set up
7-day programme, 15-minute increments and 6 on/off periods for optimal comfort and control
Ambient temperature sensor with an optional connection for an external probe to protect against excessive heat
Open Window function detects sudden temperature drops to prevent the boiler from firing up and wasting energy
Adaptive function predicts heat up times and adjusts programming to eliminate temperature spikes
Freeze Protection function reduces energy-wastage in unused rooms and is adjustable between 5-17°C
Holiday function maintains low-level heating when the home is unoccupied
Heating Boost function boosts heat for 1-9 hours in the event of low temperatures
Anti-seize function prevents the UFH pump from seizing during low-usage months
Free smart app for controlling underfloor heating on the go
Compatible with Alexa or Google Home voice control
Meets Boiler Plus requirements
Battery operated programmable room thermostat for underfloor heating
JG Underfloor Controls battery operated and RF programmable thermostat is a stylish and simple way to control wet underfloor heating systems.
The thermostat communicates with the JG Underfloor Controls RF wiring centre via a radio signal to provide heat to an individual room and to remove the need for further wiring. Its user-friendly interface makes adjusting and programming temperatures fast and simple.
When used with the JG Underfloor Controls gateway and app, underfloor heating can be controlled remotely on the go.
Features and benefits
Battery operated programmable thermostat that is easy to install and set up
7-day programme, 15-minute increments and 6 on/off periods for optimal comfort and control
Ambient temperature sensor with an optional connection for an external probe to protect against excessive heat
Radio signalling to the RF wiring centre saves cost on cabling and eliminates damage and disruption caused by additional wiring
Open Window function detects sudden temperature drops to prevent the boiler from firing up and wasting energy
Adaptive function predicts heat up times and adjusts programming to eliminate temperature spikes
Freeze Protection function reduces energy-wastage in unused rooms and is adjustable between 5-17°C
Holiday function maintains low-level heating when the home is unoccupied
Heating Boost function boosts heat for 1-9 hours in the event of low temperatures
Anti-seize function prevents the UFH pump from seizing during low-usage months
Free smart app for controlling underfloor heating on the go
Compatible with Alexa or Google Home voice control
Meets Boiler Plus requirements
JG Underfloor floor clips screw easily into the insulation to secure 15mm pipe, they are best installed using a JG Underfloor fixing tool.
Secure pipe fixing floor clips
Screw down 15mm pipe clips
Internet gateway for remote underfloor heating control (RF thermostats only)
JG Underfloor Controls gateway is a mains-powered, compact unit for connecting RF thermostats to the internet via Wi-Fi.
When used with the JG Underfloor Controls app, underfloor heating can be remotely controlled on the go.
Features and benefits
Enables control of thermostats via the internet
Compact mains-powered unit, cable supplied
Indicator lights show status of device
Install anywhere in the system, no hard-wired router connection needed

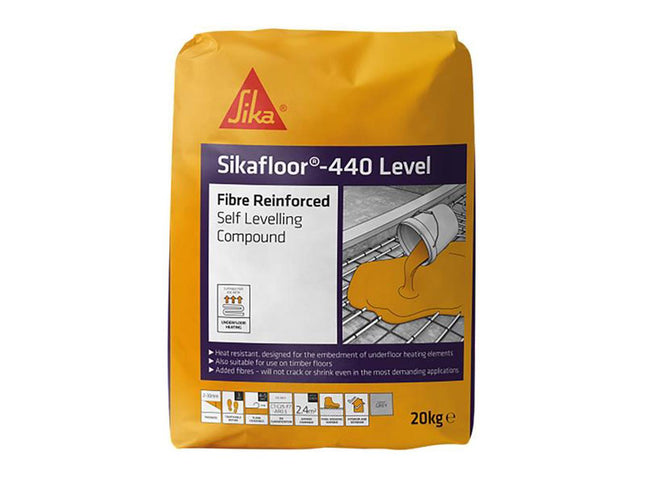

Sikafloor®-440 Level Fibre Reinforced is a fibre and polymer reinforced, flexible, high strength cement based levelling compound, designed specifically for use with underfloor heating and for application over wooden floors.Once mixed with water, Sikafloor®-440 Level Fibre Reinforced produces a smooth self-levelling compound which dries to a tough flexible finish which may then be overlaid with most common floor coverings or left as a final wearing surface.
Full internal service kit for the JG/Control4 and JG Control/5 mixing valveJG Underfloor internal service kit for JGCONTROL/4 and JGCONTROL5. Includes replacement thermostat and spring for the UFH mixing valve, as well as pre-lubricated replacement seals for the mixer’s brass temperature adjustment.Features and benefits
Includes a replacement thermostatic element and spring.
All pre-lubricated mixing valve seals included.
Suitable for underfloor heating applications only.
The JG Underfloor Manifold Connection Kit is designed for connecting multiple JG LowFit or JG Underfloor Manifolds together. It is an ideal solution for larger properties that require multiple loops per room, or when additional underfloor heating (UFH) circuits are required on an existing installation.
The kit is easy to installl and comes complete with sealing washers. Simply remove the blanking plugs from the existing manifold at the end of both flow and return bars. Insert the sealing washer into the connectors and tighten. The additonal manifold can then be connected to the other end, creating further circuits, whilst still using a single JG Underfloor Thermomix Control Kit.
The manifold flow meters will need to be recalibrated after installation on both manifolds to ensure optimum performance.
Connects two JG Underfloor or JG LowFit manifolds
Quick & easy to fit with union connections
Kit contains both adaptors for flow and return bars and sealing washers
JG Underfloor Manifold Isolation Valve is a replacement valve for that thermostatically opens the return port for the associated manifold circuit when in use and closes when shutting down.
Installed on the return bar of the manifold, the valve opens as hot water is pumped through the circuit slowly opening as the temperature rises. The valve closes automatically as the system shuts off and cools.
Durable brass
Suitable for JG Underfloor heating manifolds manufactured prior to April 2014
JG LowFit conduit elbow allows for transition from JG Speedfit pipe from the UFH manifold pipework to conduit piping run within the floor. It can be fixed or free standing.
90ºC angle
Suitable for use with JG Speedfit PEX and polybutylene barrier pipe (inserts required) and JG Speedfit Conduit Pipe
Suitable for underfloor heating applications only
