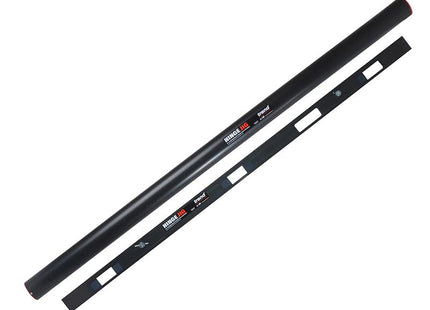

TREND Hinge Jig

Description

The Trend Hinge Jig is a portable template set designed for recessing hinges in wooden doors and frames. Used on-site and in joinery shops to increase productivity with excellent results. Four apertures for fire door requirements. No need for marking out in the conventional way. Quick and simple to set-up as the hinge is used as the pattern.

Clean and accurate recesses are achieved every time. Suitable for timber based doors and square butt hinges. Use with a light duty router with 1/4inch collet. Long reach router cutter required, 12mm diameter with 70mm overall length. Angled position slots to prevent creep.

Patent No. GB2285410.

Includes: 4 x Apertures, 2 x Bradawls, 1 x 16mm Guide Bush, 1 x T-Handle Hex Key, 1 x 4mm Spacing Gauge and 1 x Plastic Storage Tube.

Specification

Hinge Sizes Possible:

Length Min/Max: 67-127mm (2.5/8-5in).
Width Min/Max: 9.5-35mm (3/8-1.3/8in).

Door Sizes Possible:

Height Min/Max: 1955-2032mm (6ft 5in - 6ft 10in).
Thickness Min/Max: 16-44mm.

TREND Hinge Jig

Product form

£308.99 Incl. VAT

    Be quick! Only 5 products left in stock!

    • Shipped today? Order within: Nov 25, 2024 14:00:00 +0000
    • Free UK Shipping No Minimum Spend*
    • 5 Star Reviews Across All Our Retail Channels
    • Multiple Secure Payment Options
    • 100% Genuine Products
    Delivery

    Next Day Delivery available Monday - Friday when you order by 2pm.

    We take delivery very seriously. You can find the UK delivery time for any of our products on the relevant product page. These vary based on complexity of shipping, size/value of the item and the service used. These times are a guideline - however, in well over 99% of cases (and rising), we achieve or beat them.

    DELIVERY PRICES

    We offer free delivery throughout mainland UK and Northern Ireland. *This excludes certain items that are difficult to ship and some special offers. ‘Mainland UK’ is defined by the delivery area set by our couriers - although geographically belonging to the mainland we do have to charge a delivery fee to some parts of the Scottish Highlands and other outer lying areas given the increased costs charged by couriers for despatch to these areas. We do however attempt to keep these costs to our customers as low as possible.

    *Please note - this may vary for non-mainland UK addresses. You can always check the delivery cost of an order by adding items to your shopping cart and using the ‘Estimate Shipping & Tax’ tool.

    To find out more about delivery prices/methods please click here.

    Returns & Refunds

    We know that you will be pleased with your purchases from Trade Hut Direct however, there may be occasions when you will need to return items to us. If you wish to do so, please thoroughly read our returns policy and complete the returns form here.

    Important - if your return qualifies for a refund of the return carriage costs, please be aware that the maximum we can refund is £6. If the return costs are going to be more than this, please call our customer service team who should be able to arrange an alternative solution.

    To find out more about returns and refunds please click here.

    Payments

    We accept all major credit/debit cards.

    If you have any questions relating to placing an order, how to pay or issues with checking out please contact our customer service team on 0800 994 9992.

    SKU: TREHINGEJIG
    Barcode: 5027654503300

    Description

    The Trend Hinge Jig is a portable template set designed for recessing hinges in wooden doors and frames. Used on-site and in joinery shops to increase productivity with excellent results. Four apertures for fire door requirements. No need for marking out in the conventional way. Quick and simple to set-up as the hinge is used as the pattern.

    Clean and accurate recesses are achieved every time. Suitable for timber based doors and square butt hinges. Use with a light duty router with 1/4inch collet. Long reach router cutter required, 12mm diameter with 70mm overall length. Angled position slots to prevent creep.

    Patent No. GB2285410.

    Includes: 4 x Apertures, 2 x Bradawls, 1 x 16mm Guide Bush, 1 x T-Handle Hex Key, 1 x 4mm Spacing Gauge and 1 x Plastic Storage Tube.

    Specification

    Hinge Sizes Possible:

    Length Min/Max: 67-127mm (2.5/8-5in).
    Width Min/Max: 9.5-35mm (3/8-1.3/8in).

    Door Sizes Possible:

    Height Min/Max: 1955-2032mm (6ft 5in - 6ft 10in).
    Thickness Min/Max: 16-44mm.
