The Varilight Classic raised profile range has an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.

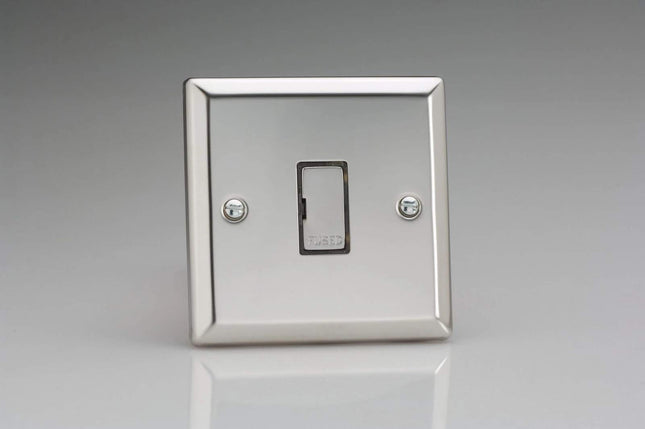

_Fused Spur
_13A Unswitched Fused Spur
_Holds standard 25.4x6.4mm fuse
_Replaceable 13A fuse included
_Bevelled edge faceplate
Varilight classic 2 gang single pole 13 amps metal rockers switches and socket with USB charging ports. The USB port detects the device to be charged and optimises its output accordingly to achieve the fastest possible charging speed.
_Choose stylish plate finish options: - Mirror Chrome - Iridium Black - Satin - Victorian Brass
_Insert colours options: Black or White
_Metal Switches
_2 Gang
Varilight classic 2 gang single pole 13 amps switched socket and USB charging ports with bevelled edge faceplate. The USB port detects the device to be charged and optimises its output accordingly to achieve the fastest possible charging speed.
_Choose stylish plate finish options: - Mirror Chrome - Iridium Black - Satin - Pewter Effect - Victorian Brass - Brushed Steel
_Insert colours options: Black or White
_2 Gang
_Single Pole

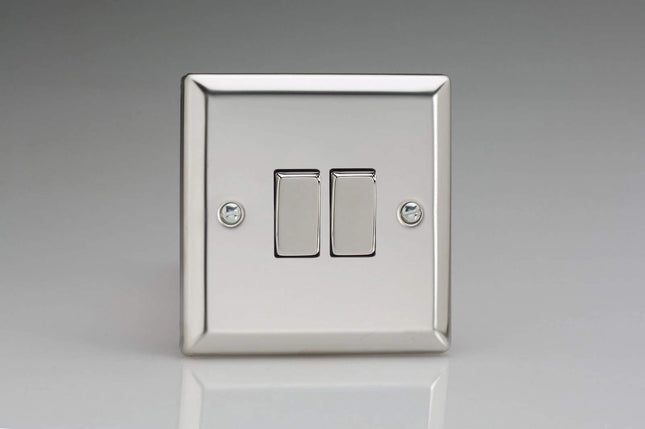

Varilight 10 amps 1 way or 2 way operation rocker switches with bevelled edge face-plate. Suitable for controlling both mains and low voltage lighting.
_Many stylish finishes options: - Mirror Chrome - Iridium Black - Satin - Pewter Effect - Victorian Brass - Brushed Steel
_Three insert colours options - Black - Polished Chrome - White
_Available in 1, 2 or 3 gang options
_Range: Classic
Varilight 1-Gang 20 amps double pole rocker switch with neon indicator light. Rocker switches is available with insert colour options.
_Three insert colours options: - Black - White
_Finish: Mirror Chrome
_1-Gang
_Double Pole
Varilight 1-Gang 20 amps double pole rocker switch with bevelled edge faceplate. Rocker switches is available in a decorative finishes with insert colour options.
_Choose stylish finishes options: - Mirror Chrome - Iridium Black - Victorian Brass
_Three insert colours options: - Black - Iridium - White
_1-Gang
_Double Pole

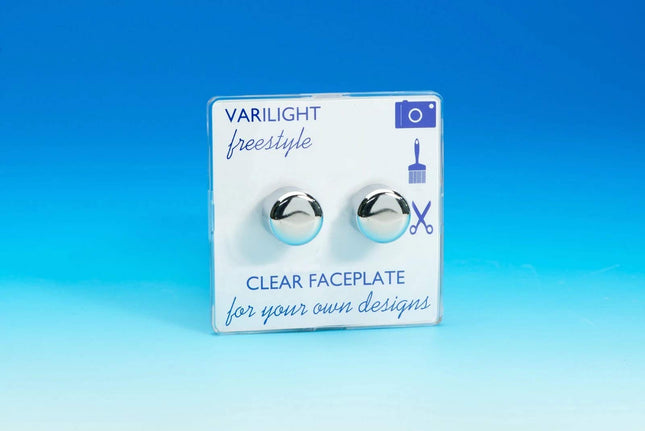

The Varilight Screwless low profile collection offers minimalism with style. The Freestyle range comes with a clear plate so you can create your own design or use a photo or insert wall paper. The Screwless plate is made from plastic and just clips on after installation. Each switch does need to be earthed and is designed to fit into UK standard wall boxes. Covered by the Varilight 10 year guaranty. Single plate size: 86mm x 86mm Double plate size: 86mm x 147mm 13A Plug sockets: Require a 35mm deep wall box. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 25mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 35mm wall box. 5 Amp Socket: Require a 35mm deep wall box. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 35mm deep wall box. 13 Amp Double pole. 20 Amp: Require a 25mm deep wall box. 45 Amp Double pole. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 35mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset or spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 35mm deep wall box.
_V-Dim Dimmer
_2-Gang 2-Way Push-On/Off Rotary Dimmer 2 x 40-250W
_V-Dim dimming technology
_Ideal for incandescent lighting including mains and low voltage halogen
_Overload protection that automatically switches off the lights when an overload is detected
Varilight V-Pro high wattage LED dimmer module that can dim up to 300W of LED load without needing to re-rate. Supplied as a module that can be used to retrofit onto existing dimmer switch plates. Ideal for use when higher loads are required.
_Max wattage: 300W
_Will dim up to 30 LED lights
_Contains trailing edge V-Pro dimming technology which can reprogrammed to emulate leading edge mode but isn't TRIAC.
_Smoother, silent dimming operation, no buzzing.
Standard V-Pro dimmers have a push-on/push-off switch action with rotary dimming. You can change the driving modes and adjust the minimum brightness with pushes of the dimmer control and using signals from the lamps. You can view the programming instructions on the dimmer leaflet or, alternatively, you can view Varilight video on YouTube using this link:- https://www.youtube.com/watch?v=Id1E2hQpX-w . V-Pro series dimmers are designed for use with LEDs and they are also suitable for halogen and incandescent lighting, most dimmable electronic transformers and with no minimum load, are suitable for dimmable low energy lighting. The V-Pro Series, eliminates Dimmer Buzz For GLS Bulbs, GU10 Lamps, and LV Transformers Including Trailing Edge Loads and is equipped with Self Re-setting Overload Protection, so is able to handle overload situations, for example, if the wattage of the bulbs/lamps are accidentally too high on a circuit. This is achieved by the dimmer cutting out before there is any damage, (if the watts are grossly overloaded), until the load is reduced. The dimmer also contains a heat sensor which again stops damage to the dimmer, if it becomes too hot. Please adhere to maximum rating listed on the Varilight datasheets on their website or copy and paste the link for the V-Pro instruction leaflet: - http://www.varilight.co.uk/leaflets/VARILIGHT%20V-Pro%20Dimmer%20Instructions%20776.pdf .These dimmers do not work with lighting panels (LED or CFL) and are not suitable for wire-wound "toroidal" transformers. Please note that only good quality dimmable LEDs should be used. If this dimmer is purchased and the LED lamps are not compatible, the dimmer is not faulty so cannot be returned, but a better quality LED lamp/bulb should be fitted instead. Trailing and Leading Edge Dimmer, please refer to instructions provided with the dimmer, which explains all 3 dimming modes.
_Dimmable LED load 10w-120w (per dimmer)
_Suitable for 1-10 good quality LED lamps per dimmer module
_For Incandescent bulbs, mains, eco and L/V halogen bulbs please click on the link in the product description below.
_V-Pro dimmers are suitable for dimmable LEDs, dimmable ESLs, electronic transformers, trailing edge, standard bulbs, GU10 and mains halogen
_Fits a 25 mm wall box
Standard V-Pro dimmers have a push-on/push-off switch action with rotary dimming. You can change the driving modes and adjust the minimum brightness with pushes of the dimmer control and using signals from the lamps. You can view the programming instructions on the dimmer leaflet or, alternatively, you can view Varilight video on YouTube using this link:- https://www.youtube.com/watch?v=Id1E2hQpX-w . V-Pro series dimmers are designed for use with LEDs and they are also suitable for halogen and incandescent lighting, most dimmable electronic transformers and with no minimum load, are suitable for dimmable low energy lighting. The V-Pro Series, eliminates Dimmer Buzz For GLS Bulbs, GU10 Lamps, and LV Transformers Including Trailing Edge Loads and is equipped with Self Re-setting Overload Protection, so is able to handle overload situations, for example, if the wattage of the bulbs/lamps are accidentally too high on a circuit. This is achieved by the dimmer cutting out before there is any damage, (if the watts are grossly overloaded), until the load is reduced. The dimmer also contains a heat sensor which again stops damage to the dimmer, if it becomes too hot. Please adhere to maximum rating listed on the Varilight datasheets on their website or copy and paste the link for the V-Pro instruction leaflet: - http://www.varilight.co.uk/leaflets/VARILIGHT%20V-Pro%20Dimmer%20Instructions%20776.pdf .These dimmers do not work with lighting panels (LED or CFL) and are not suitable for wire-wound "toroidal" transformers. Please note that only good quality dimmable LEDs should be used. If this dimmer is purchased and the LED lamps are not compatible, the dimmer is not faulty so cannot be returned, but a better quality LED lamp/bulb should be fitted instead. Trailing and Leading Edge Dimmer, please refer to instructions provided with the dimmer, which explains all 3 dimming modes.
_Dimmable LED load 10w-120w (per dimmer)
_Suitable for 1-10 good quality LED lamps per dimmer module
_For Incandescent bulbs, mains, eco and L/V halogen bulbs please click on the link in the product description below.
_V-Pro dimmers are suitable for dimmable LEDs, dimmable ESLs, electronic transformers, trailing edge, standard bulbs, GU10 and mains halogen
_Fits a 25 mm wall box
Standard V-Pro dimmers have a push-on/push-off switch action with rotary dimming. You can change the driving modes and adjust the minimum brightness with pushes of the dimmer control and using signals from the lamps. You can view the programming instructions on the dimmer leaflet or, alternatively, you can view Varilight video on YouTube using this link:- . V-Pro series dimmers are designed for use with LEDs and they are also suitable for halogen and incandescent lighting, most dimmable electronic transformers and with no minimum load, are suitable for dimmable low energy lighting. The V-Pro Series, eliminates Dimmer Buzz For GLS Bulbs, GU10 Lamps, and LV Transformers Including Trailing Edge Loads and is equipped with Self Re-setting Overload Protection, so is able to handle overload situations, for example, if the wattage of the bulbs/lamps are accidentally too high on a circuit. This is achieved by the dimmer cutting out before there is any damage, (if the watts are grossly overloaded), until the load is reduced. The dimmer also contains a heat sensor which again stops damage to the dimmer, if it becomes too hot. Please adhere to maximum rating listed on the Varilight datasheets on their website or copy and paste the link for the V-Pro instruction leaflet: - .These dimmers do not work with lighting panels (LED or CFL) and are not suitable for wire-wound "toroidal" transformers. Please note that only good quality dimmable LEDs should be used. If this dimmer is purchased and the LED lamps are not compatible, the dimmer is not faulty so cannot be returned, but a better quality LED lamp/bulb should be fitted instead. Trailing and Leading Edge Dimmer, please refer to instructions provided with the dimmer, which explains all 3 dimming modes.
_Dimmable LED load 10w-120w (per dimmer)
_Suitable for 1-10 good quality LEDlamps per dimmer module
_For Incandescent bulbs, mains, eco and L/V halogen bulbs please click on thelink in the product description below.
_V-Pro dimmer are suitable for dimmableLEDs, dimmable ESLs, electronic transformers, trailing edge, standard bulbs,GU10 and mains halogen
_Fits a 25 mm wall box
The Varilight Victorian raised profile range has an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_Back Box Depth: 25mm
_Remote can be purchased seperately
_Gang: 2
_Measurements: 91mm:91mm:27mm
_Plate Style: Classic
The Varilight Classic raised profile range has an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_V-Pro Multi-Point (formerly Eclique2) Dimmer
_3-Gang Tactile Touch Control Dimming Slave for use with Multi-Point (formerly Eclique2) Master on 2-Way Circuits (Twin Plate)
_V-Pro intelligent dimming technology
_Soft start feature and intelligent overload protection
_Use with touch & remote master Multi-Point dimmers in multi-way circuits
Varilight is the brand name of Doyle & Tratt Products Ltd the leading British manufacturer of dimmer switches and decorative switches and sockets supplying the UK retail market, the trade and OEMs. The launch of Varilight's international range has enabled the company to establish a presence in other European markets, the Middle East and Africa.
_Back Box Depth: 25mm
_Remote can be purchased seperately
_Gang: 1
_Measurements: 88mm:88mm:27mm
_Plate Style: Classic

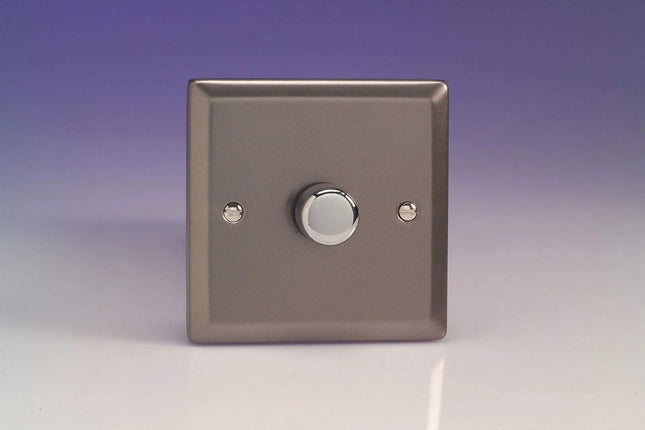

Standard V-Pro dimmers have a push-on/push-off switch action with rotary dimming. You can change the driving modes and adjust the minimum brightness with pushes of the dimmer control and using signals from the lamps. You can view the programming instructions on the dimmer leaflet or, alternatively, you can view Varilight video on YouTube using this link:- https://www.youtube.com/watch?v=Id1E2hQpX-w . V-Pro series dimmers are designed for use with LEDs and they are also suitable for halogen and incandescent lighting, most dimmable electronic transformers and with no minimum load, are suitable for dimmable low energy lighting. The V-Pro Series, eliminates Dimmer Buzz For GLS Bulbs, GU10 Lamps, and LV Transformers Including Trailing Edge Loads and is equipped with Self Re-setting Overload Protection, so is able to handle overload situations, for example, if the wattage of the bulbs/lamps are accidentally too high on a circuit. This is achieved by the dimmer cutting out before there is any damage, (if the watts are grossly overloaded), until the load is reduced. The dimmer also contains a heat sensor which again stops damage to the dimmer, if it becomes too hot. Please adhere to maximum rating listed on the Varilight datasheets on their website or copy and paste the link for the V-Pro instruction leaflet: - http://www.varilight.co.uk/leaflets/VARILIGHT%20V-Pro%20Dimmer%20Instructions%20776.pdf .These dimmers do not work with lighting panels (LED or CFL) and are not suitable for wire-wound "toroidal" transformers. Please note that only good quality dimmable LEDs should be used. If this dimmer is purchased and the LED lamps are not compatible, the dimmer is not faulty so cannot be returned, but a better quality LED lamp/bulb should be fitted instead. Trailing and Leading Edge Dimmer, please refer to instructions provided with the dimmer, which explains all 3 dimming modes.
_Dimmable LED load 10w-120w (per dimmer)
_Suitable for 1-10 good quality LED lamps per dimmer module
_For Incandescent bulbs, mains, eco and L/V halogen bulbs please click on the link in the product description below.
_V-Pro dimmer are suitable for dimmable LEDs, dimmable ESLs, electronic transformers, trailing edge, standard bulbs, GU10 and mains halogen
_Fits a 25 mm wall box
Standard V-Pro dimmers have a push-on/push-off switch action with rotary dimming. You can change the driving modes and adjust the minimum brightness with pushes of the dimmer control and using signals from the lamps. You can view the programming instructions on the dimmer leaflet or, alternatively, you can view Varilight video on YouTube using this link:- https://www.youtube.com/watch?v=Id1E2hQpX-w . V-Pro series dimmers are designed for use with LEDs and they are also suitable for halogen and incandescent lighting, most dimmable electronic transformers and with no minimum load, are suitable for dimmable low energy lighting. The V-Pro Series, eliminates Dimmer Buzz For GLS Bulbs, GU10 Lamps, and LV Transformers Including Trailing Edge Loads and is equipped with Self Re-setting Overload Protection, so is able to handle overload situations, for example, if the wattage of the bulbs/lamps are accidentally too high on a circuit. This is achieved by the dimmer cutting out before there is any damage, (if the watts are grossly overloaded), until the load is reduced. The dimmer also contains a heat sensor which again stops damage to the dimmer, if it becomes too hot. Please adhere to maximum rating listed on the Varilight datasheets on their website or copy and paste the link for the V-Pro instruction leaflet: - http://www.varilight.co.uk/leaflets/VARILIGHT%20V-Pro%20Dimmer%20Instructions%20776.pdf .These dimmers do not work with lighting panels (LED or CFL) and are not suitable for wire-wound "toroidal" transformers. Please note that only good quality dimmable LEDs should be used. If this dimmer is purchased and the LED lamps are not compatible, the dimmer is not faulty so cannot be returned, but a better quality LED lamp/bulb should be fitted instead. Trailing and Leading Edge Dimmer, please refer to instructions provided with the dimmer, which explains all 3 dimming modes.
_Dimmable LED load 10w-120w (per dimmer)
_Suitable for 1-10 good quality LED lamps per dimmer module
_For Incandescent bulbs, mains, eco and L/V halogen bulbs please click on the link in the product description below.
_V-Pro dimmer are suitable for dimmable LEDs, dimmable ESLs, electronic transformers, trailing edge, standard bulbs, GU10 and mains halogen
_Fits a 25 mm wall box
The Varilight Classic raised profile range has an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_Back Box Depth: 25mm
_Remote can be purchased seperately
_Gang: 1
_Measurements: 91mm:91mm:27mm
_Plate Style: Classic
British made LED Dimmer is an award winning, high quality dimmer switch, compatible with most mains and low voltage spotlights and bulb range, including dimmable GU10 LED bulbs. The dimmer is controlled by a state-of-the-art microprocessor that offers sophisticated overload protection, meaning if you mistakenly connect your dimmer to too many lights or transformers, it will protect itself from failure. This dimmer will give you complete control over your lighting ambience, thanks to its intelligent 2-way control mechanism and is also available in number of finishes acting as both a key aesthetic and technical component of your interior design.
_V-Pro dimmers are designed to control LED lighting loads requiring trailing-edge or leading-edge control with options from 0W-120W (max. 10 LEDs)
_Suitable for 1-10 good quality LED lamps per dimmer module
_V-Pro dimmers are suitable for dimmable LEDs, dimmable ESLs, electronic transformers, trailing edge, standard bulbs, GU10 and mains halogen
_Fits a 25 mm wall box

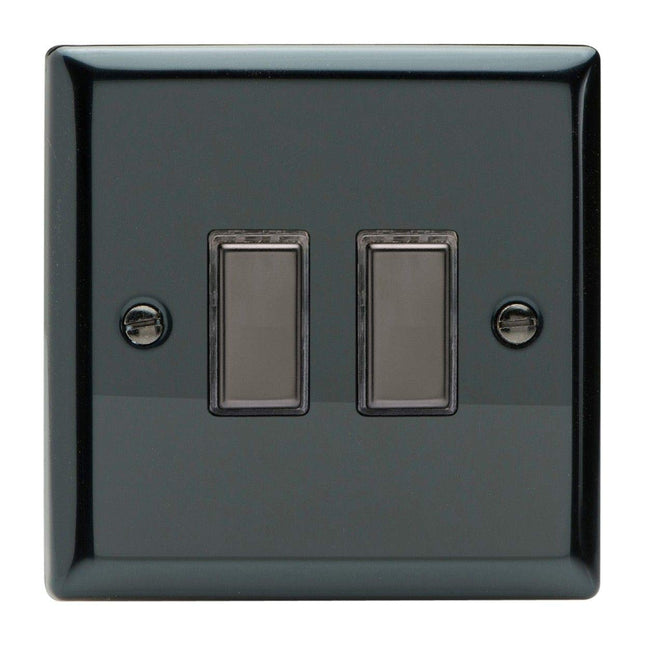

The Varilight Classic raised profile range has an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_V-Pro Multi-Point (formerly Eclique2) Dimmer
_2-Gang Tactile Touch Control Dimming Slave for use with Multi-Point (formerly Eclique2) Master on 2-Way Circuits
_V-Pro intelligent dimming technology
_Soft start feature and intelligent overload protection
_Use with touch & remote master Multi-Point dimmers in multi-way circuits

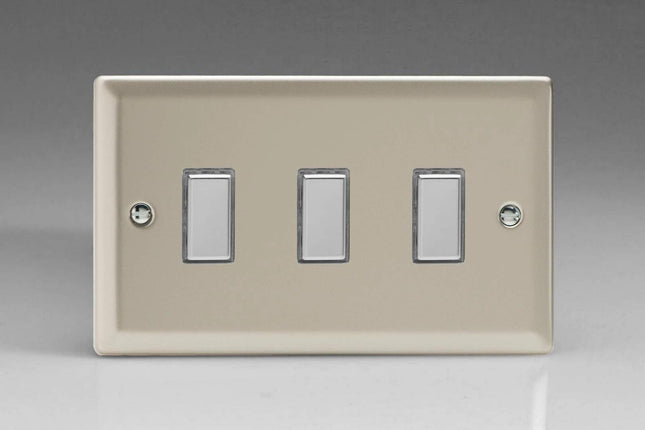

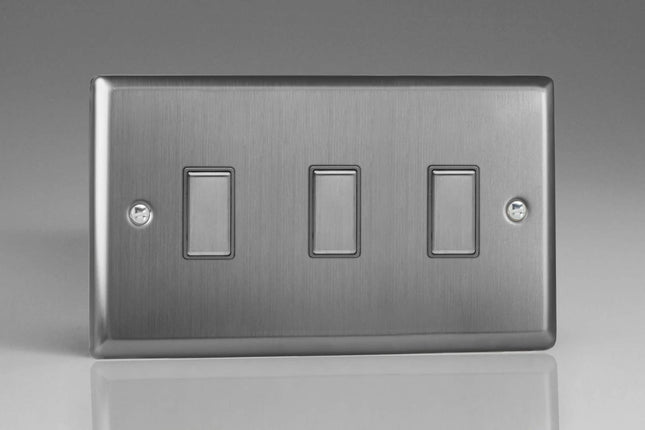

The Varilight Classic raised profile range has an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_V-Pro Multi-Point (formerly Eclique2) Dimmer
_3-Gang Tactile Touch Control Dimming Slave for use with Multi-Point (formerly Eclique2) Master on 2-Way Circuits (Twin Plate)
_V-Pro intelligent dimming technology
_Soft start feature and intelligent overload protection
_Use with touch & remote master Multi-Point dimmers in multi-way circuits

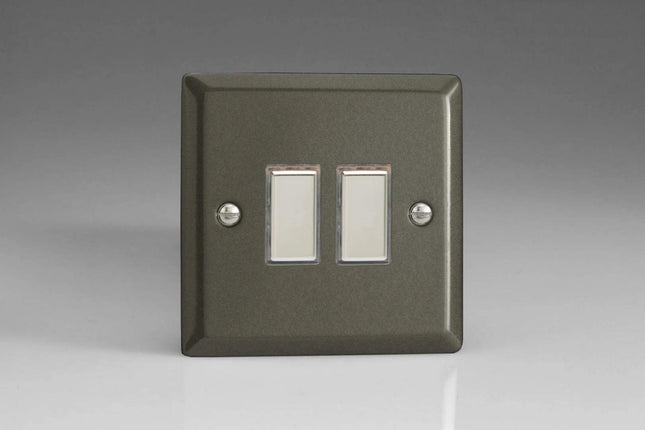

The Varilight Classic raised profile range has an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_V-Pro Multi-Point (formerly Eclique2) Dimmer
_2-Gang Tactile Touch Control Dimming Slave for use with Multi-Point (formerly Eclique2) Master on 2-Way Circuits
_V-Pro intelligent dimming technology
_Soft start feature and intelligent overload protection
_Use with touch & remote master Multi-Point dimmers in multi-way circuits

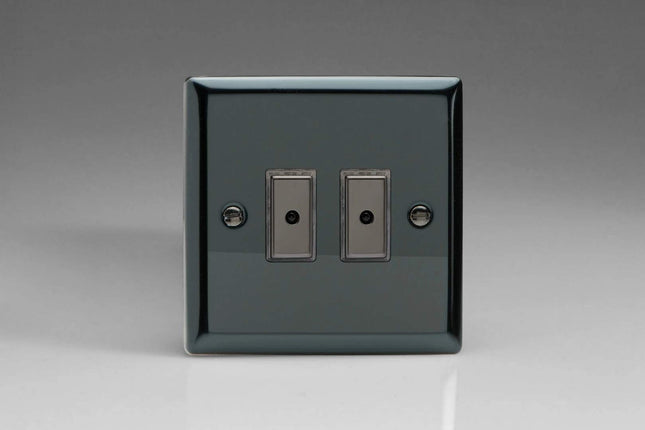

The Varilight Classic raised profile range has an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_Back Box Depth: 25mm
_Remote can be purchased seperately
_Gang: 2
_Measurements: 91mm:91mm:27mm
_Plate Style: Classic

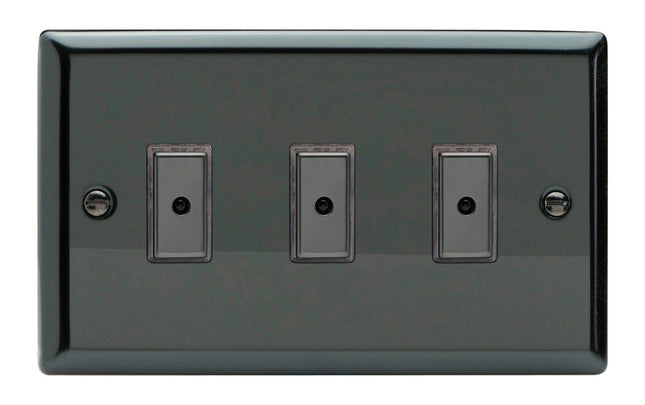

The Varilight Classic raised profile range has an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_SKU: JIE103
_Remote can be purchased seperately
_Colour: Iridium
_Back Box Depth: 25mm
_3 Gang, Remote Sold Seperately
The Varilight Classic raised profile range has an 8mm depth from front to back of plate. Covered by the Varilight 10 year guaranty. Single plate size: 91mm x 91mm. Double plate size: 91mm x 150mm. 13A Plug sockets: Require a 25mm deep wall box. USBÕs are 2.1A. Rocker Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 16mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 25mm wall box. 5 Amp Socket: Require a 25mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Suitable for use in bathrooms, toilets and shower rooms (IP41). 240V accepts British and Continental round pin and Australia flat-pin. 115V accepts Continental two-pin and America NEMA. Cooker Switch: Require a 35mm deep wall box. 45 Amp Double pole. Fused Spur: Require a 25mm deep wall box. 13 Amp Double pole. TV Socket: Require a 16mm deep wall box. TV socket for use with male co-axial plugs. Fan Isolator: Require a 16mm deep wall box. 10A Fan Isolating Switch (3 Pole). Triple pole switching. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 25mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 25mm deep wall box.
_Back Box Depth: 25mm
_Remote can be purchased seperately
_Gang: 2
_Measurements: 91mm:91mm:27mm
_Plate Style: Classic

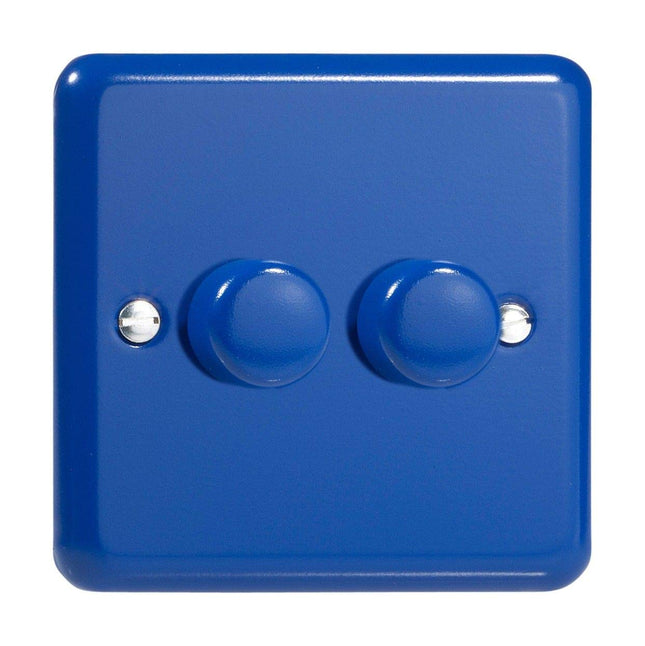

Standard V-Pro dimmers have a push-on/push-off switch action with rotary dimming. You can change the driving modes and adjust the minimum brightness with pushes of the dimmer control and using signals from the lamps. You can view the programming instructions on the dimmer leaflet or, alternatively, you can view Varilight video on YouTube using this link:- https://www.youtube.com/watch?v=Id1E2hQpX-w . V-Pro series dimmers are designed for use with LEDs and they are also suitable for halogen and incandescent lighting, most dimmable electronic transformers and with no minimum load, are suitable for dimmable low energy lighting. The V-Pro Series, eliminates Dimmer Buzz For GLS Bulbs, GU10 Lamps, and LV Transformers Including Trailing Edge Loads and is equipped with Self Re-setting Overload Protection, so is able to handle overload situations, for example, if the wattage of the bulbs/lamps are accidentally too high on a circuit. This is achieved by the dimmer cutting out before there is any damage, (if the watts are grossly overloaded), until the load is reduced. The dimmer also contains a heat sensor which again stops damage to the dimmer, if it becomes too hot. Please adhere to maximum rating listed on the Varilight datasheets on their website or copy and paste the link for the V-Pro instruction leaflet: - http://www.varilight.co.uk/leaflets/VARILIGHT%20V-Pro%20Dimmer%20Instructions%20776.pdf .These dimmers do not work with lighting panels (LED or CFL) and are not suitable for wire-wound "toroidal" transformers. Please note that only good quality dimmable LEDs should be used. If this dimmer is purchased and the LED lamps are not compatible, the dimmer is not faulty so cannot be returned, but a better quality LED lamp/bulb should be fitted instead. Trailing and Leading Edge Dimmer, please refer to instructions provided with the dimmer, which explains all 3 dimming modes.
_Dimmable LED load 10w-120w (per dimmer)
_Suitable for 1-10 good quality LED lamps per dimmer module
_For Incandescent bulbs, mains, eco and L/V halogen bulbs please click on the link in the product description below.
_V-Pro dimmers are suitable for dimmable LEDs, dimmable ESLs, electronic transformers, trailing edge, standard bulbs, GU10 and mains halogen
_Fits a 25 mm wall box
Standard V-Pro dimmers have a push-on/push-off switch action with rotary dimming. You can change the driving modes and adjust the minimum brightness with pushes of the dimmer control and using signals from the lamps. You can view the programming instructions on the dimmer leaflet or, alternatively, you can view Varilight video on YouTube using this link:- https://www.youtube.com/watch?v=Id1E2hQpX-w . V-Pro series dimmers are designed for use with LEDs and they are also suitable for halogen and incandescent lighting, most dimmable electronic transformers and with no minimum load, are suitable for dimmable low energy lighting. The V-Pro Series, eliminates Dimmer Buzz For GLS Bulbs, GU10 Lamps, and LV Transformers Including Trailing Edge Loads and is equipped with Self Re-setting Overload Protection, so is able to handle overload situations, for example, if the wattage of the bulbs/lamps are accidentally too high on a circuit. This is achieved by the dimmer cutting out before there is any damage, (if the watts are grossly overloaded), until the load is reduced. The dimmer also contains a heat sensor which again stops damage to the dimmer, if it becomes too hot. Please adhere to maximum rating listed on the Varilight datasheets on their website or copy and paste the link for the V-Pro instruction leaflet: - http://www.varilight.co.uk/leaflets/VARILIGHT%20V-Pro%20Dimmer%20Instructions%20776.pdf .These dimmers do not work with lighting panels (LED or CFL) and are not suitable for wire-wound "toroidal" transformers. Please note that only good quality dimmable LEDs should be used. If this dimmer is purchased and the LED lamps are not compatible, the dimmer is not faulty so cannot be returned, but a better quality LED lamp/bulb should be fitted instead. Trailing and Leading Edge Dimmer, please refer to instructions provided with the dimmer, which explains all 3 dimming modes.
_Dimmable LED load 10w-120w (per dimmer)
_Suitable for 1-10 good quality LED lamps per dimmer module
_V-Pro dimmers are suitable for dimmable LEDs, dimmable ESLs, electronic transformers, trailing edge, standard bulbs, GU10 and mains halogen
_For Incandescent bulbs, mains, eco and L/V halogen bulbs please click on the link in the product description below.
_Fits a 25 mm wall box

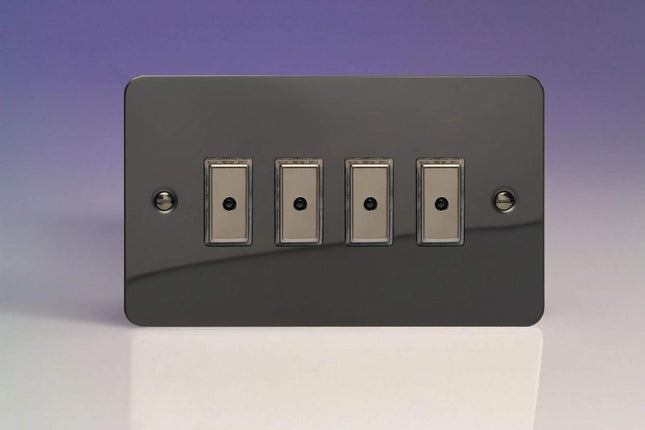

The Varilight Ultraflat collection offers minimalism with style. The plate is just 1mm thick and wall boxes should be recessed into the wall to achieve a flush finish. Each switch does need to be earthed and is designed to fit into UK standard wall boxes. Covered by the Varilight 10 year guaranty. Single plate size: 89mm x 89mm. Double plate size: 89mm x 149mm. 13A Plug sockets: Require a 35mm deep wall box. USBÕs are 2.1A. Rocker & Toggle Light Switches: 2 way (unless stated as intermediate), 10A rated and require a 25mm deep wall box. Halogen & LED Dimmers: 2 Way. Please check product title for dimmer spec and maximum and minimum load. Require a 35mm wall box. 5 Amp Socket: Require a 35mm deep wall box. Shaver Socket: Require a 47mm deep wall box. Dual Voltage Shaver Socket 240V/115V. Cooker Switch: Require a 35mm deep wall box. Fused Spur: Require a 35mm deep wall box. TV Socket: Require a 25mm deep wall box. 20 Amp: Require a 25mm deep wall box. Fan Isolator: Require a 35mm deep wall box. 10A. Flex Outlet: Require a 25mm deep wall box. 16A Flex Outlet Plate. DataGrid Plates: Clip in any combination of DataGrid modules (need to be bought from us separately). Compatible with all standard Euro data modules (Varilight, Triax, RetroTouch etc). Create your own data combinations. Touch/Remote LED Dimmers: V-Pro IR (infra-red) Dimmers. 0-100W (1-10 LEDs). Require a 35mm deep wall box. V-Pro intelligent dimming technology. Touch control or remote control from dedicated handset (not included, Varilight YRC8 can be bought separately), or can use a spare button on an existing handset (e.g. TV remote). 1-way or multi-way when used with V-Pro IR dimming slave unit(s). Soft start feature and intelligent overload protection. Touch Slaves: Can not be used on their own, must be used with a master dimmer to make a 2 way or multi-way circuit. Require a 35mm deep wall box.
_V-Pro Multi-Point Remote (formerly Eclique2) Dimmer
_4-Gang 1-Way V-Pro Multi-Point Remote/Tactile Touch Control Master LED Dimmer 4 x 0-100W (1-10 LEDs) (Twin Plate)
_V-Pro intelligent dimming technology
_Tactile touch control or remote control from dedicated handset or spare button on an existing handset (e.g. TV remote)
_Soft start feature and intelligent overload protection
Mounting frames known as yokes for use with Varilight Power Grid, available in 1,2,3 and 4 gang. Allows switches to be mounted behind the plates.
_Varilight Power Grid frames (1-4 gang)
_Extending flexibility and choice for the Varilight range
_Compliments existing Dimension accessories and Data Grid
_Requires additional Power Grid plate and switches

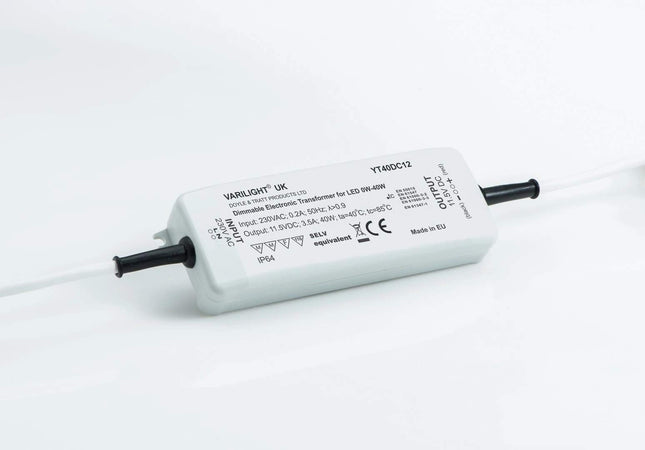

The Varilight YT40DC12 is a dimmable LED low voltage transformer also known as an LED driver.
_Dimmable power supply for 12V DC LED strip up to a maximum of 40W
_Enhanced performance with 12V DC LED lamps up to a maximum of 30W.
_Constant voltage
_Soft start gently brings lights up to full brightness when you switch on and extends lamp life
Varilight 105W low voltage transformer range that has no minimum load. The 105W version isn't LED compatible, only the 50W version is.
_Input Voltage: 230V AC. +/- 10% 50Hz
_Output Voltage: 12V AC
_Input Current: 0.46A for 105W
_Power Range: 105VA: - 0-105W. No minimum load!
