Reliance Valves 312 Compact Series are a range of domestic pressure reducing valves that are adjustable between 1.5 - 6.0 bar up to 45°C. Specifically designed with compact efficiency in mind, all the working components are contained within one cartridge with two downstream test points at the base. WRAS approved for domestic environments, the 312 Compact (Cold) PRV features a drop tight valve to control pressure. It can be installed in any orientation with gauge ports located on either side of the valve’s base. Available with FBSP and MBSP unions, compression or JG Speedfit push-fit connections. Drop tight valve controls the pressure under flow and no-flow conditions Single-piece replaceable cartridge containing all working parts Fully serviceable integral strainer to protect the seat of the valve Available in a variety of connection ends Gauge ports located on either side of valve base Suitable for cold water use only Union and compression version is suitable for copper pipe only. The JG Speedfit push-fit version is suitable for Speedfit PEX and polybutylene barrier pipe (inserts required) or copper pipe.

Read more less

Reliance Valves 312 Compact Series are a range of domestic pressure reducing valves that are adjustable between 1.5 - 6.0 bar up to 45°C. Specifically designed with compact efficiency in mind, all the working components are contained within one cartridge with two downstream test points at the base. WRAS approved for domestic environments, the 312 Compact (Cold) PRV features a drop tight valve to control pressure. It can be installed in any orientation with gauge ports located on either side of the valve’s base. Available with FBSP and MBSP unions, compression or JG Speedfit push-fit connections. Drop tight valve controls the pressure under flow and no-flow conditions Single-piece replaceable cartridge containing all working parts Fully serviceable integral strainer to protect the seat of the valve Available in a variety of connection ends Gauge ports located on either side of valve base Suitable for cold water use only Union and compression version is suitable for copper pipe only. The JG Speedfit push-fit version is suitable for Speedfit PEX and polybutylene barrier pipe (inserts required) or copper pipe.

Read more less

Description Manufactured from DZR brass the WRAS approved Floguard single check valve is used for the prevention of back-flow and back syphonage contamination risks in accordance with the Water Supply (water fitting) Regulations 1999. A single check valve protects against the risk of backflow and back siphonage contaminations Compact, lightweight solution ideal for all class 2 contamination risks are per water supply (water fittings) Regulations 1999 Allows high flow rate with minimum pressure drop, giving good flow rates through the single check valve

Read more less

Compact mini vessel to eliminate the noise created by water hammer Reliance Valves Potable Water Shock Arrestor is a compact mini vessel designed to be fitted close to an appliance or fixture to eliminate the noise created by water hammer. Water hammer is caused during a pressure surge within a potable water system. The hammer is caused by a sudden stop or change of water flow within the system and is extremely common in domestic plumbing. Water hammer usually happens when the pressure within the system is too high. Our shock arrestor can be fitted at the point of use to prevent water hammer within the system. Features and benefits Stainless steel shell and flange to prevent corrosion Pre-charge valve for topping up air pressure 0.16L arrestor also available with a SharkBite push-fit connector or SharkBite push-fit tee Suitable for hot and cold water use only Stainless steel shell and flange to prevent corrosion Complete with pre-charge valve for topping up air pressure WRAS approved

Read more less

The Easifit Thermostatic Mixing Valve (TMV) eliminates the risk of accidental injuries and burns by precisely blending hot and cold water to a safe and comfortable temperature. Ultra-compact and lightweight, Easifit is ideal for tight spaces such as under basins, baths and shower installations. Using unique technology, The Easifit TMV can function at a flow rate as low as one litre per minute, the lowest by far in the industry, and is also resistant to scale and other system contaminants ensuring increased valve longevity. The range is available with flat face union connections, as well as our latest push-fit variation. Incorporating JG Speedfit, the new range can be fitted and dismounted without tools, making it even easier and faster to install, service or replace valves. Features •15mm valves work with flow rates as low as 1 L/min making it ideal for water saving taps • 2-in-1 valve includes check valves as well as strainers that protect both the check valves and the main valve •4-in-1 valve includes an isolating valve, check valve, strainers and test port for monitoring system pressure and temperature •Temperature adjustment is incorporated on the clip in the cap • Available with a variety of connection ends Blends hot and cold water to ensure safe and comfortable water temperature, reducing the risk of accidental injuries and burns Ultra-compact and lightweight, Easifit is ideal for use in tight spaces Easifit complies with all applicable UK and European performance standards The range is WRAS approved and holds TMV2 and TMV3 certificates The TMV can function at flow rates as low as 1 lpm, the lowest by far in the industry Resistant to the adherence of scale and other system contaminants to provide increased valve longevity

Read more less

The Easifit Thermostatic Mixing Valve (TMV) eliminates the risk of accidental injuries and burns by precisely blending hot and cold water to a safe and comfortable temperature. Ultra-compact and lightweight, Easifit is ideal for tight spaces such as under basins, baths and shower installations. Using unique technology, The Easifit TMV can function at a flow rate as low as one litre per minute, the lowest by far in the industry, and is also resistant to scale and other system contaminants ensuring increased valve longevity. The range is available with flat face union connections, as well as our latest push-fit variation. Incorporating JG Speedfit, the new range can be fitted and dismounted without tools, making it even easier and faster to install, service or replace valves. Features •15mm valves work with flow rates as low as 1 L/min making it ideal for water saving taps • 2-in-1 valve includes check valves as well as strainers that protect both the check valves and the main valve •4-in-1 valve includes an isolating valve, check valve, strainers and test port for monitoring system pressure and temperature •Temperature adjustment is incorporated on the clip in the cap • Available with a variety of connection ends Blends hot and cold water to ensure safe and comfortable water temperature, reducing the risk of accidental injuries and burns Ultra-compact and lightweight, Easifit is ideal for use in tight spaces Easifit complies with all applicable UK and European performance standards The range is WRAS approved and holds TMV2 and TMV3 certificates The TMV can function at flow rates as low as 1 lpm, the lowest by far in the industry Resistant to the adherence of scale and other system contaminants to provide increased valve longevity

Read more less

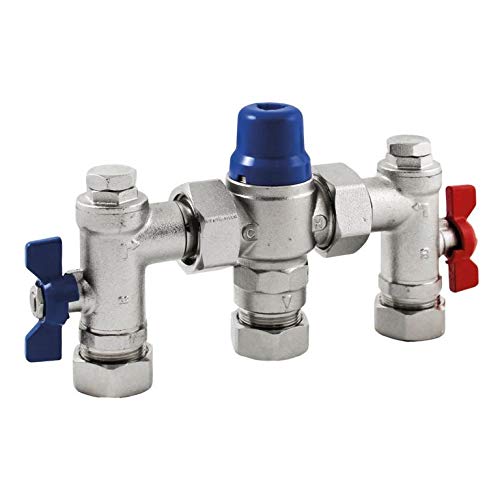

Description: Reliance Valves Easifit Thermostatic Mixing Valve (TMV) 4in1 must be TMV3 & TMV2 accredited, WRAS approved and comply with NHS and HTM04-01-D08 regulations. The TMV must be suitable for BREEAM projects and work to a 10:1 pressure differential. The seals must be Viton and the internal components must be scale resistant. The water inlets must have an isolating valve, check valve, strainers and test port. Connections must be compression style with integrated flat faced unions on all connections. Blends hot and cold water to ensure safe and comfortable water temperature, reducing the risk of accidental injuries and burns. Ultra-compact and lightweight, Easifit is ideal for use in tight spaces Easifit complies with all applicable UK and European performance standards The range is WRAS approved and holds TMV2 and TMV3 certificates The TMV can function at flow rates as low as 1 lpm, the lowest by far in the industry Resistant to the adherence of scale and other system contaminants to provide increased valve longevity

Read more less

RWC HEAT112010 Details The Easifit Thermostatic Mixing Valve (TMV) blends hot and cold water to ensure safe and comfortable water temperature, reducing the risk of accidental injuries and burns. Using the latest RWC advanced valve design and production techniques, the TMV can function at flow rates as low as 1 lpm and is also resistant to the adherence of scale and other system contaminants to provide increased valve longevity. 15mm TMV Depth (A) 33mm, Width (B) 113mm, Height (C) 85mm Ultra-compact and lightweight Ideal for tight spaces Complies with UK and European performance standards WRAS approved Holds TMV2 and TMV3 certificates Temperature adjustment is incorporated into the clip on cap Includes check valves as well as strainers Blends hot and cold water to ensure safe and comfortable water temperature, reducing the risk of accidental injuries and burns. Ultra-compact and lightweight, Easifit is ideal for use in tight spaces Easifit complies with all applicable UK and European performance standards The range is WRAS approved and holds TMV2 and TMV3 certificates The TMV can function at flow rates as low as 1 lpm, the lowest by far in the industry Resistant to the adherence of scale and other system contaminants to provide increased valve longevity

Read more less

The PREDATOR PRV is a Pressure Reducing Valve for use in both hot and cold water services, in domestic, commercial and industrial applications. It is used to supply water at a pre-determined pressure level. The valve is adjustable between 1 bar and 6 bar pressure ratings. The PREDATOR PRV comes complete with a pressure gauge. Features & Benefits Pressure reducing valve for domestic, commercial and industrial applications Adjustable pressure rating between 1 to 6 bar Includes pressure gauge Factory set pressure rating of 3 bar Suitable for hot or cold potable water 15mm compression connections Compact design WRAS Approved Specification Maximum inlet pressure: 20 Adjustable pressure range: 1 - 6 bar Connections: 15mm compression Pre-set at Factory: 3 bar Maximum operating temperature: 80°C Pressure gauge connection: 1/4" BSP Pressure gauge range: 0 - 6 bar WRAS Approved

Read more less

Thermostatically blends hot and cold water to a safe outlet temperature (TMV3 approved for healthcare) Reliance Valves Heatguard TMV3-8 Thermostatic Mixing Valve blends hot and cold water to a constant and safe shower and bath outlet temperature to prevent scalding. Regulating the storage temperature of water in healthcare, residential and commercial settings is increasingly common. To circulate water at a temperature of 60°C, water is typically stored and distributed at a high temperature to prevent Legionella. The Heatguard TMV3-8 is designed to mix hot and cold water at the point of discharge to a safer and cooler temperature to prevent accidental scalding. If the cold water supply fails, the valve automatically shuts off the hot water to prevent unsafe temperatures from reaching the outlet. Fully certified by the NSF, Heatguard TMV2-8 meets the NHS D08 specification for the TMV3 Scheme for basin, bidet, shower and high-pressure bath fill applications. It is therefore commonly specified in the healthcare sector to protect vulnerable people from scalding from high temperature water supply. There are two options available: the 2-in-1 valve comes complete with strainers on both inlets and check valves, whereas the 4-in-1 also includes test ports and isolation valves. Features and benefits NSF TMV3-approved for healthcare applications Large body allows for a reliable, stable blended temperature and higher flow rate Tamperproof cap to stop unauthorised tampering Works in larger systems with up to 10:1 pressure differences between the hot and cold water supplies, exceeding the industry standard of 5:1 Features Viton seals instead of EPDM to significantly improve performance at higher temperatures Flat faced union connections on all ports for fast and easy maintenance Suitable for shower, bath, basin and bidet hot water applications Compatible with copper pipe only

Read more less

A highly advanced TMV3 approved thermostatic mixing valve for use in the basin, shower, bidet and high-pressure bath fill applications (above 1 bar). The Heatguard TMV3-8 valve is designed to control the mixed water outlet temperature and pressure of the hot and cold water supplies and to shut off the mixed water outlet instantly in case of hot or cold water failure. It incorporates a unique purpose-built adjuster key so that standard tools cannot be used by unauthorised persons to change the set outlet temperature. Supplied with 4 in 1 service fittings featuring an isolating ball valve, large surface area strainer, single check valve for crossflow protection, and a gauge /flushing port for checking system conditions or for connection of flushing to remove system debris prior to commissioning the mixing valve. Features & Benefits TMV3 approved D08 thermostatic mixing valve Suitable for the basin, shower, bid and bathfill outlet applications Rapid thermostatic failsafe on either cold or hot failure Anti-tamper cap - requires included adjuster tool Includes 4 in 1 adaptor with built-in isolators Fittings for 22mm outlets Outlet temperature range of 38-46°C WRAS Approved Specification Factory temperature setting: 38°C Temperature setting range: 38-46°C Working pressure, static: 16 bar max. Working pressure, dynamic: 0.2 - 0.5 bar Minimum flow rate: 4 lpm 22mm connections

Read more less

A highly advanced TMV3 approved thermostatic mixing valve for use in the basin, shower, bidet and high-pressure bath fill applications (above 1 bar). The Heatguard TMV3-8 valve is designed to control the mixed water outlet temperature and pressure of the hot and cold water supplies and to shut off the mixed water outlet instantly in case of hot or cold water failure. It incorporates a unique purpose-built adjuster key so that standard tools cannot be used by unauthorised persons to change the set outlet temperature. Features & Benefits 22mm 2-in-1 Heatguard TMV3-8 Thermostatic Mixing Valve - HEAT 160 020 TMV3 approved D08 thermostatic mixing valve Suitable for the basin, shower, bid and bath fill outlet applications Rapid thermostatic failsafe on either cold or hot failure Anti-tamper cap - requires included adjuster tool Includes 2 in 1 adaptor Fittings for 22mm outlets Outlet temperature range of 38-46°C WRAS Approved Specification Factory temperature setting: 38°C Temperature setting range: 38-46°C Working pressure, static: 16 bar max. Working pressure, dynamic: 0.2 - 0.5 bar Minimum flow rate: 4 lpm 22mm connections

Read more less

A highly advanced TMV3 approved thermostatic mixing valve for use in the basin, shower, bidet and high-pressure bath fill applications (above 1 bar). The Heatguard TMV3-8 valve is designed to control the mixed water outlet temperature and pressure of the hot and cold water supplies and to shut off the mixed water outlet instantly in case of hot or cold water failure. It incorporates a unique purpose-built adjuster key so that standard tools cannot be used by unauthorised persons to change the set outlet temperature. Features & Benefits TMV3 approved D08 thermostatic mixing valve Suitable for the basin, shower, bid and bathfill outlet applications Rapid thermostatic failsafe on either cold or hot failure Anti-tamper cap - requires included adjuster tool Includes 2 in 1 adaptor Fittings for 15mm outlets Outlet temperature range of 38-46°C WRAS Approved Specification Factory temperature setting: 38°C Temperature setting range: 38-46°C Working pressure, static: 16 bar max. Working pressure, dynamic: 0.2 - 0.5 bar Minimum flow rate: 4 lpm 15mm connectionsWeight 0.05667 Hazardous N Max Pressure 25 Connection Size (mm) 15 mm Material Gunmetal Number of Ports 3 Seal Material Viton Supplier Product Code HEAT160015 Type Thermostatic Mixing Valve WEEE Compliant N Application Healthcare,Sport/Fitness,Assisted Living,Education,Hotels/Leisure,Office/Retail/Washrooms

Read more less

The Heatguard TMV3-8 valve is a highly advanced, TMV3-approved, thermostatic mixing valve for use in the basin, shower, bidet and high-pressure bath fill applications (above 1 bar). It is designed to control the mixed water outlet temperature and pressure of the hot and cold water supplies and to shut off the mixed water outlet instantly in case of hot or cold water failure. It incorporates a unique purpose-built adjuster key so that standard tools cannot be used by unauthorised persons to change the set outlet temperature. Supplied with 4-in-1 service fittings featuring an isolating ball valve, large surface area strainer, single check valve for crossflow protection, and a gauge/flushing port for checking system conditions or for connection of flushing to remove system debris prior to commissioning the mixing valve. Features & Benefits 15mm 4-in-1 Heatguard TMV3-8 Thermostatic Mixing Valve - HEAT 160 030 TMV3 approved D08 thermostatic mixing valve Suitable for the basin, shower, bid and bath fill outlet applications Rapid thermostatic failsafe on either cold or hot failure Anti-tamper cap - requires included adjuster tool Includes 4-in-1 adaptor with built-in isolators Fittings for 15mm outlets Outlet temperature range of 38-46°C WRAS Approved Specification Factory Temperature Setting: 38°C Temperature Setting Range: 38-46°C Working Pressure, Static: 16 Bar max. Working Pressure, Dynamic: 0.2 - 0.5 Bar Minimum Flow Rate: 4 lpm Connections: 15mm Certifications: WRAS, TMV3

Read more less
