Description: 100mm axial fan which has a unique design that allows the fan to fit unobtrusively into any wall or ceiling. The tile design allows the fan to blend into the d�cor of the room. This unit is not suitable for Window mounting.
Application: Bathroom
Key features:
Unique tile design
Long life motor
Easy to install and maintain
Quiet and Efficient
Specifications:
Meets the requirements of Building Regulation Document F
IP24 rated, BEAB Approved, and CE marked in accordance with all the relevant EEC Harmonised Directives
Double Insulated, class II motor fitted with thermal protection
Hole Diameters: Wall 115mm
Airflow: Wall 75m3/hr
H140 x W140 x D105mm
Accessories:
Wall Kit
External wall grille
Ducting

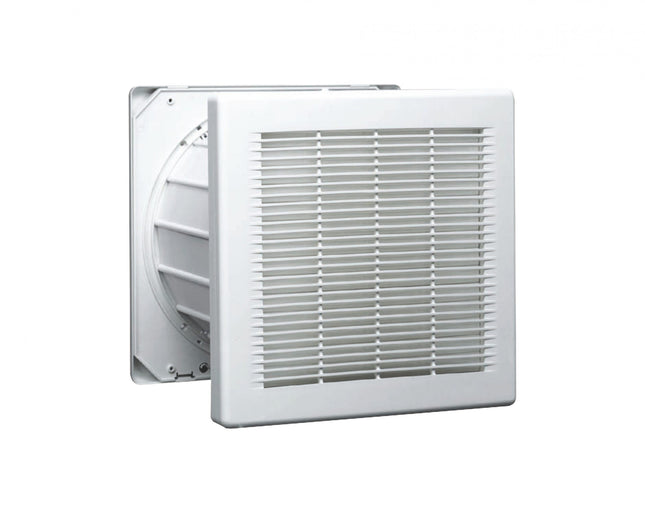

Description: 230mm fixed grille fan suitable for panel/wall mounting or window mounting using the appropriate window accessory kit. Suitable for commercial applications in pubs, hotels, restaurants, offices, schools, shops and factories.
Application: Ventilation
Key features:
Simple installation
External 2 speed reversible on/off controller available
Manufactured impact resistant high gloss ABS for strength and durability
Motor fitted with thermal over load protection
Specifications:
Meets the requirements of Building Regulation Document F
IP44 rated, DEMKO Approved, and CE marked in accordance with all the relevant EEC Harmonised Directives
Double Insulated, class II motor fitted with thermal protection
Hole Diameters: Window 260mm, Wall 280mm
Panel Mount Airflow 259l/sec
Window/Wall Mount Airflow: 190l/sec
H340 x W340 x D158mm
Product range details:
Rated Voltage 220-240v-50Hz
Rated Wattage 90w
Accessories:
Wall Kit
External wall grille
External gravity wall grille
Ducting
Description: The Quiet Fan X5 Conceal is the latest in domestic ventilation to incorporate a high extraction rate whilst producing an incredibly quiet running volume. Designed for wall and ceiling mounting, this comprehensive range is ideal for bathrooms and toilets.
Application: Bathroom
Key features:
Wall or ceiling mounting
High quality ABS thermoplastics for strength and durability
Quiet operation
Specifications:
IPX5 rated
Long life motors warranted for a minimum of 30,000 hours or 3 years
Integral backdraught shutters
Airflow: 75m3 /hr, 21 litres per second
SFP: 0.29W/l/s
Complies with both Part F & L
Product range details:
Rated voltage 220-240v-50Hz
Rated wattage 6W
28dB(A) at 3m
Dimensions:
H160 x W160 x D40mm
